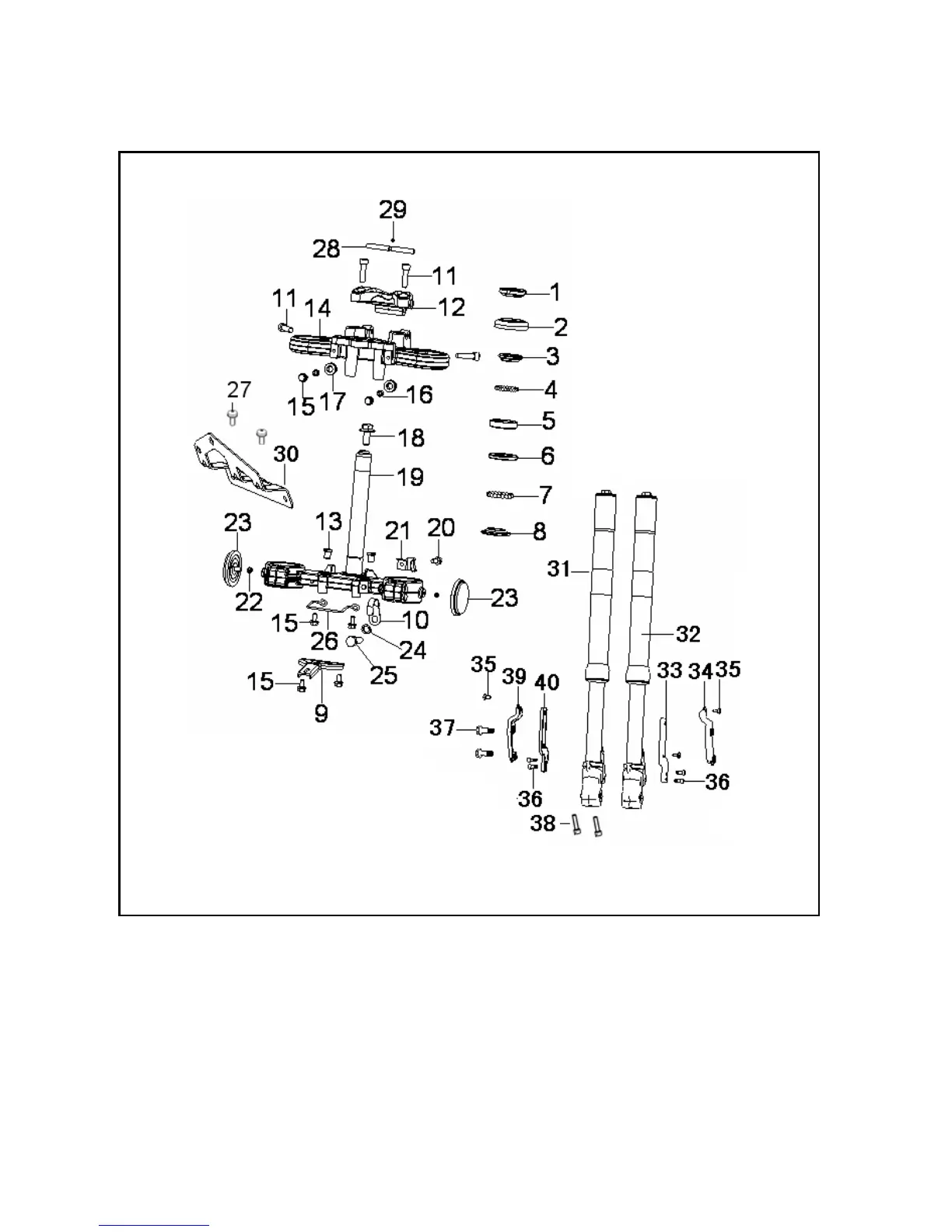

1 Steering lever nut 2 Dust cover 3 Upper steel bowl of upper bearing 4 Steel ball 3/16 inch 5 Lower steel
bowl of upper bearing 6 Upper steel bowl of lower bearing 7 Steel ball 1/4 inch 8 Lower steel bowl of lower
bearing 9 Lower bracket of headlamp 10 Main cable clamp 11 Hexagon socket bolt 8x30 12 Steering
handle upper holder 13 Bracket lower washer 14 Upper bracket assembly 15 Bolt M6×16 16 Bushing
17 Rubber bush 18 Stem bolt 19 Lower bracket assembly 20 Combination bolt M6×12 21 Wire clamp
22 Nut M6 23 Side reflector assembly 24 Washer 10 25 Bolt M10×16 26 Cable clip 27 Combination bolt
M6×16 28 Location pin 29 Hexagon socket set screws with flat point M4×6 30 License plate bracket
31 Right front shock absorber assembly 32 Left front shock absorber assembly 33 Front mudguard bracket I
assembly 34 Front mud guard bracket II assembly 35 Bolt M6×15.2 36 Hexagon socket bolt M6×16 37 Front
license plate mounting bolt M10×1.25×30 38 Hexagon socket bolt M6×30 39 Front mudguard right bracket II
