KEEWAY RKV125 User Manual

Worn or injured swing arm pivot bush
Improper adjustment of drive chain adjuster
Bent frame or swing arm
8.2.2 Inflexible Wheel Rotation
Incorrect brake adjustment
Worn rear bearing
Too tight drive chain
8.2.3 Poor Braking Performance
Incorrect brake adjustment
Worn braking shoe
Worn brake drum
Incorrect installation of braking shoe
8.2.4 Brake Pedal Inflexible or Slow Return
Incorrect brake adjustment
Worn or contaminated brake drum
Incorrect installation of braking shoe
8.2.5 Noisy Brake
Worn braking shoe
Worn brake drum
Contaminated braking shoe
Contaminated brake drum
8.3 Rear Wheel

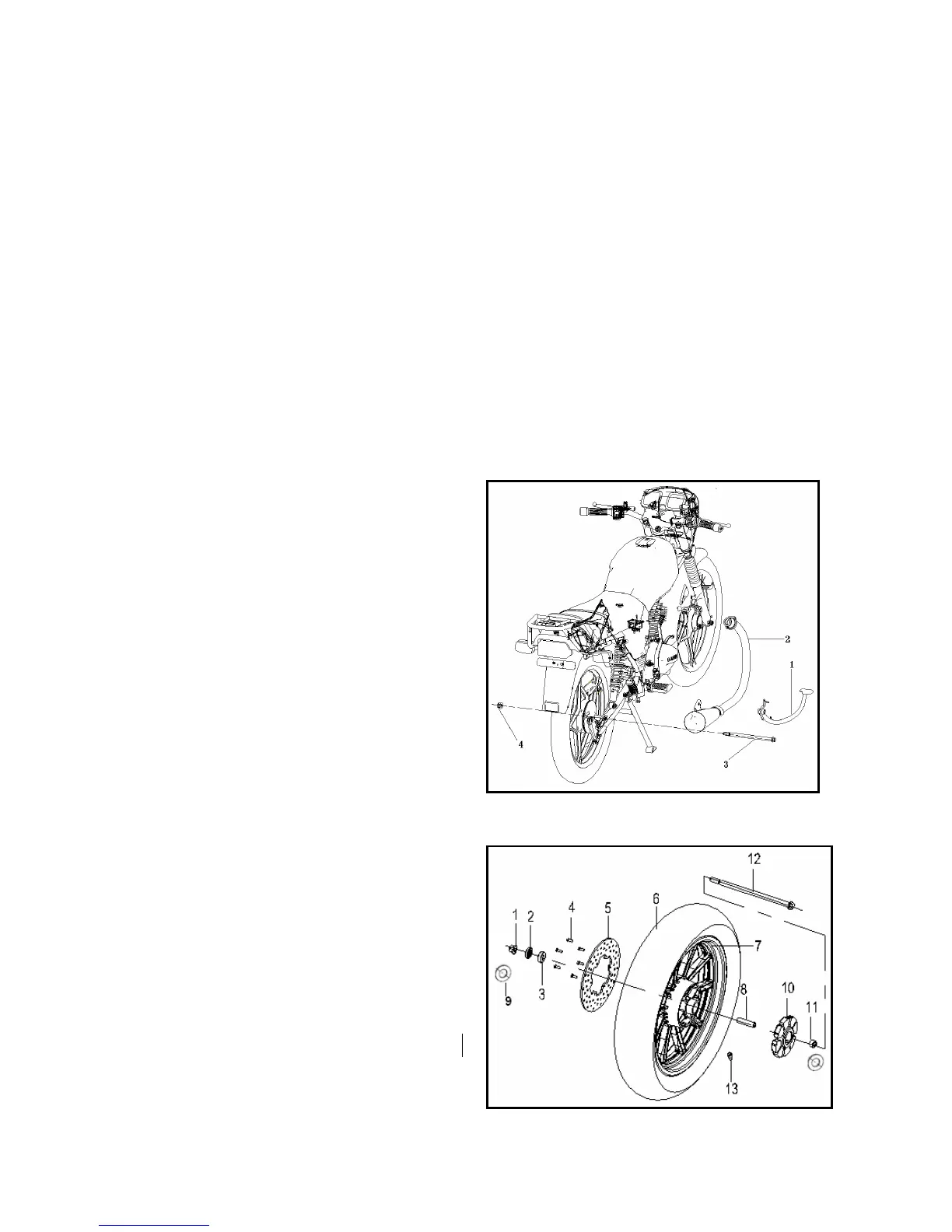

8.3.1 Removal
Stand the motorcycle steadily and rear wheel is off the ground.
Remove rear brake pedal assembly (1).
Remove muffler assembly (2).
Screw off rear wheel adjuster.
Take down the brake rod from brake arm.
Remove connector and spring on the brake arm.
Remove brake pin, washer, rear wheel buffer and brake
nut.
Remove torque linked arm from rear drum brake.
Screw off drive chain adjuster (20).
Remove rear shaft locknut (21) and rear shaft (4).
Move forward rear wheel. Remove the drive chain from
the rear drive sprocket.
Remove the rear wheel.

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
