Exhaust System Inspection and Maintenance
Muffler Assembly
A
Tightening torque of mounting bolt 5 for muffler connector in the diagram：5-9 N·m
B
Dual catalysts are added into the muffler welding assembly in the diagram.
C
Tightening torque of combined screw 6 for muffler protecting plate in the diagram：5-9 N·m

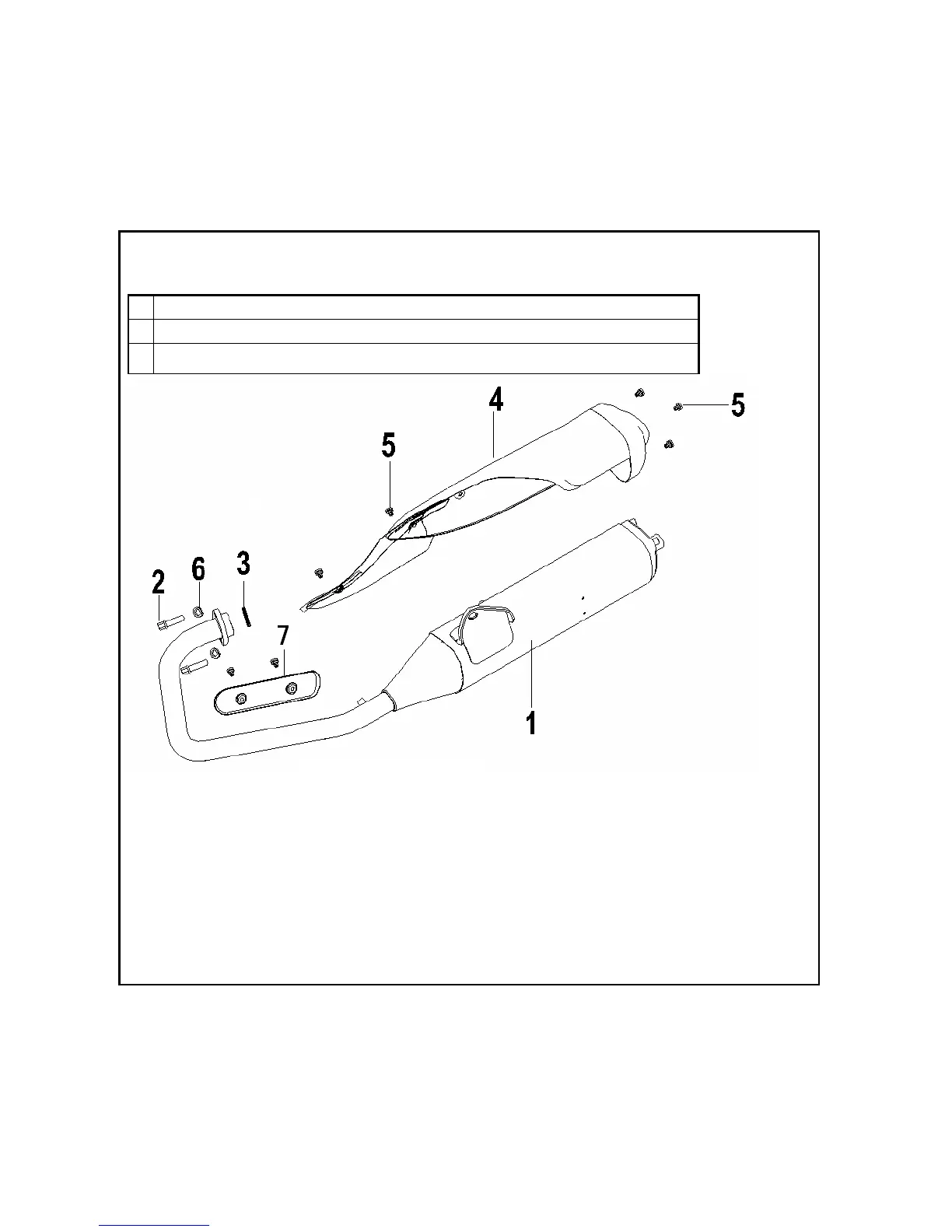

1 Muffler welding assembly 2 Hexagon socket screw 3 Exhaust pipe gasket assembly 4 Muffler tail hood
welding assembly 5 Combined screw M6×10 6 Spring washer 8 7 Exhaust pipe protecting plate
