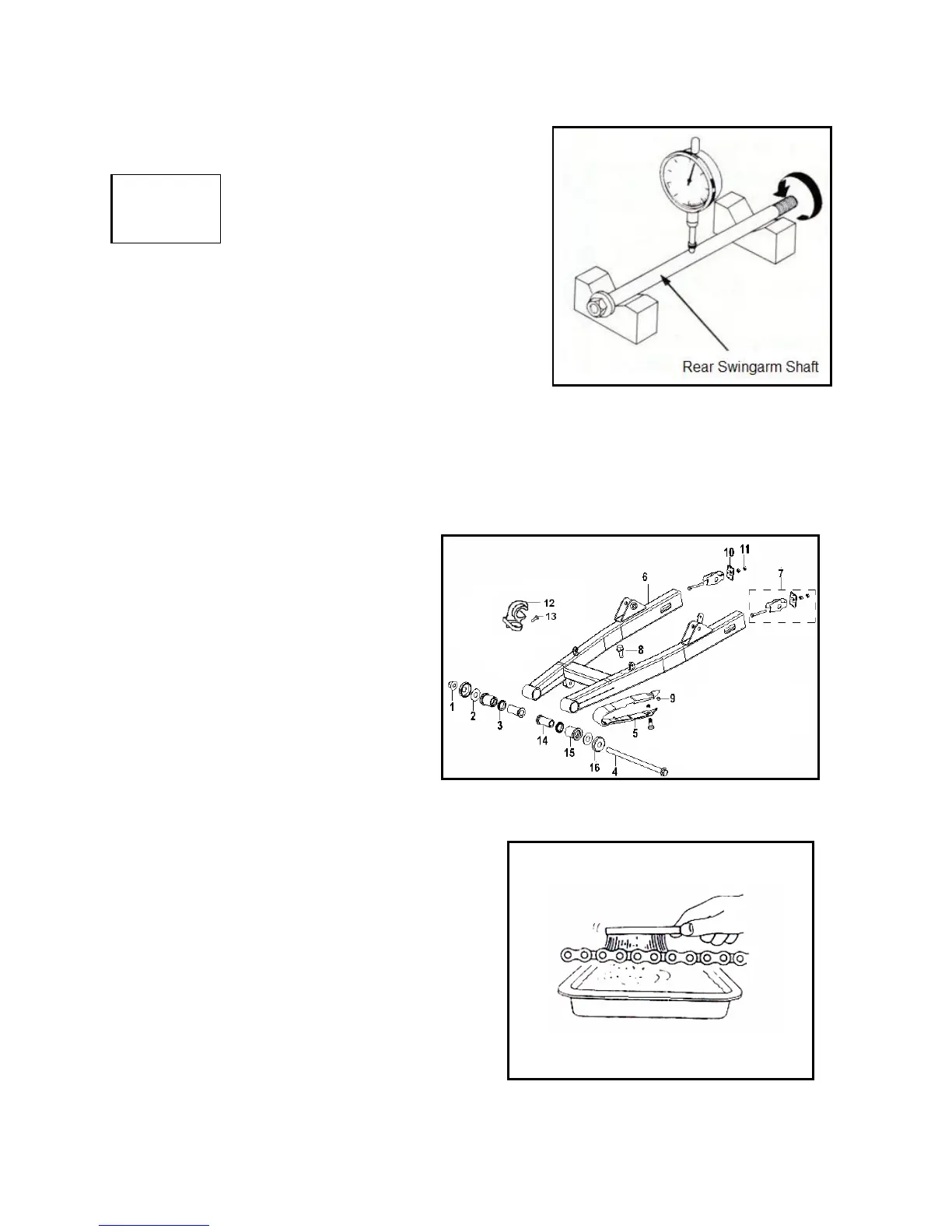

Check rear swing arm installation shaft. Rotate the shaft on a flat
surface or measure it with a dial gauge. If it is bent, replace it.
* Attention
Wash in solvent the components for rear swing arm installation
shaft.
Check sleeve assembly (7) and intermediate sleeve (5) of rear
swing arm.
If they are damaged, replace them.
8.4.6 Install Rear Swing arm
Install the rear swing arm in the reverse order of removal.
Apply lubricating grease on to pivot bush.
Install rear swing arm sleeve assembly (15) and intermediate sleeve (14).
Install rear swing arm assembly (6).
Install rear swing arm onto the frame and insert
rear swing arm shaft.
Install and tighten rear swing arm shaft nut to
specified torque.
Install lower mounting bolt on rear shock
absorber.
Install drive chain cover.
Install the two connecting bolts.
Install rear wheel.
Install rear swing arm nut
Tightening torque: 70-83N·m
8.5 Chain Drive Assembly
8.5.1．Removal
Stop the motorcycle on the flat ground and stand it steadily.
Remove gearshift pedal connecting parts, drive chain cover
and drive sprocket.
Remove rear wheel, rear shock absorber, chain cover and
drive chain.
