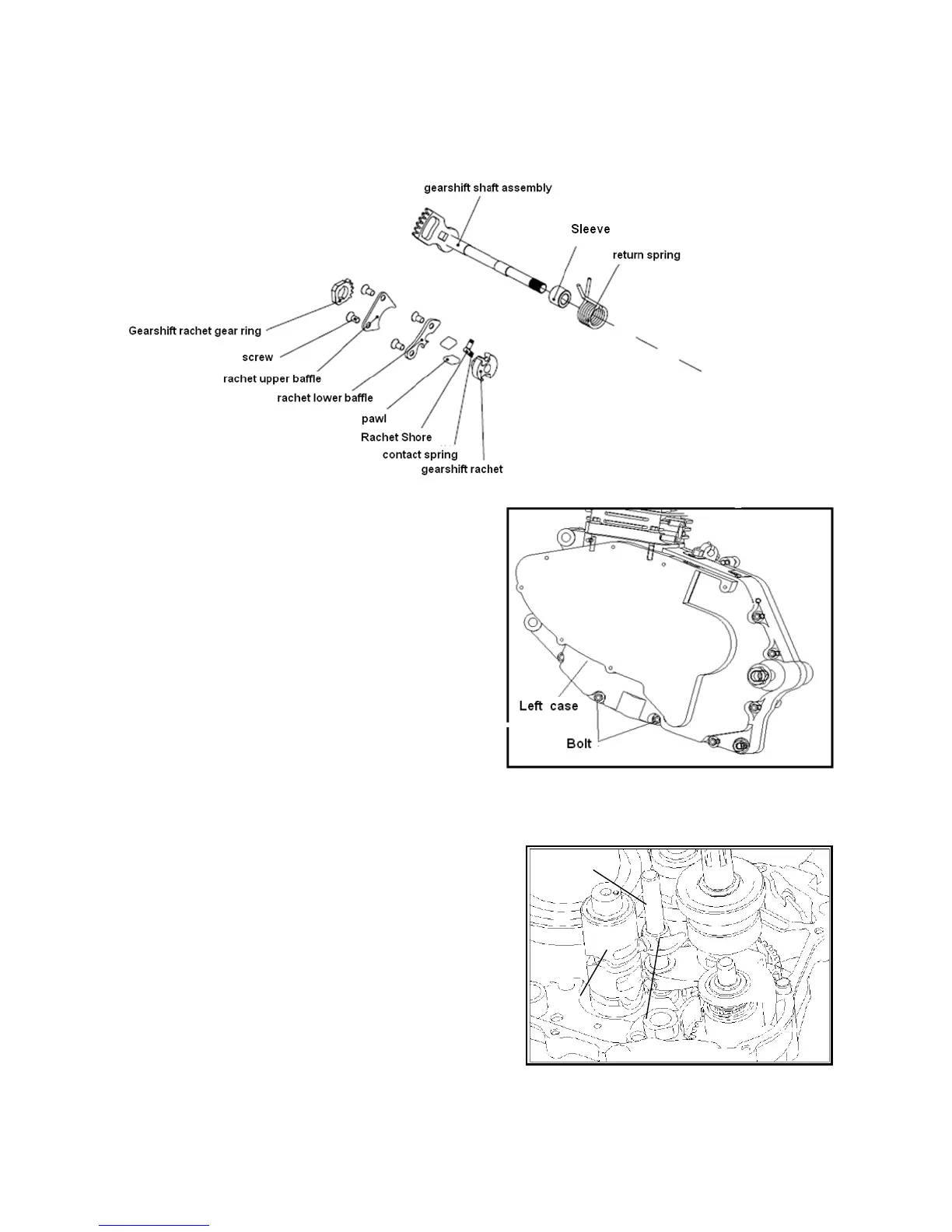

15.3.2 Exploded View
15.3.3 Inspection
Before disassembly, gearshift plate shall work flexibly and
smoothly.
Check if gearshift plate and gearshift shaft assembly are
worn.
If they are seriously worn, replace them.
Check if gearshift locking plate is worn.
If it is seriously worn, replace it.
Check if gearshift shaft is bent. If it is over bent, replace it.
Check if return spring is weakened. If necessary, replace it.
Screw off closing bolt.
Disassemble crankcase.
*Attention: Please do not hurt washer and closing surface.
Remove left case block.
Pull out shift fork shaft.
Remove gearshift drum.
Remove gearshift fork.
Measure shift fork OD.
