KEEWAY RKV125 User Manual

Rear Wheel/Rear Suspension
1 Rear shock absorber assembly 2 Rear brake rocker arm 3 Rear shaft 4 Nut M8 5 Sprocket stopper
6 Sprocket 43 teeth 7 Oil seal 8 Rolling bearing 6204-2RS 9 Chain drive sleeve 10 Sprocket hub
11 Sprocket mounting bolt 12 Rear wheel left sleeve assembly 13 Rear wheel buffer 14 Bearing spacer
15 Tubeless tyre 130/70-17 16 Rear brake disc 17 Hydraulic brake disc mounting bolt M6×16
18 Rolling bearing 6302-2RS 19 Front wheel oil seal assembly 20 Locking nut M14×1.5

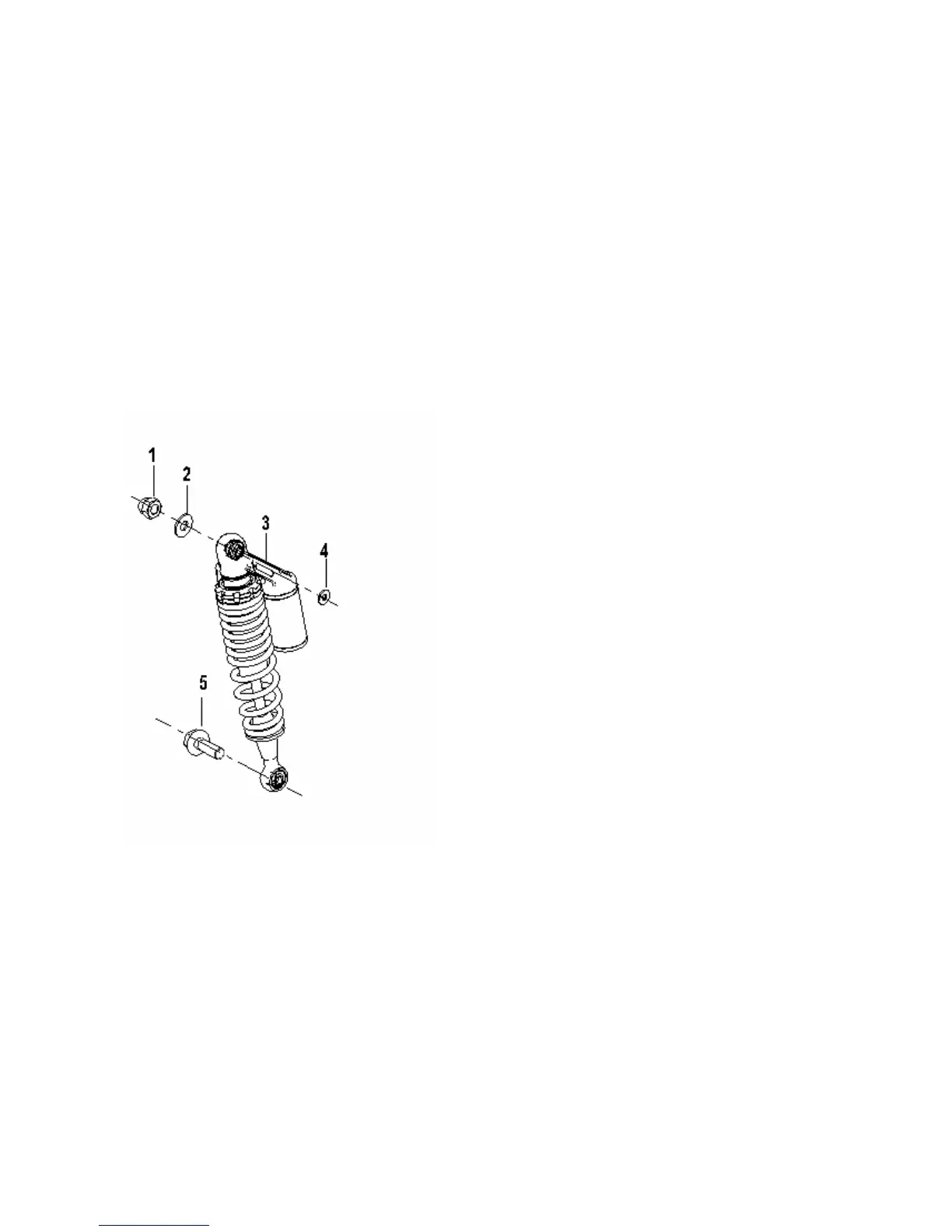

Rear Shock Absorber
1 Cap nut M10×1.25 2 Rear shock absorber mounting gasket 3 Rear shock absorber assembly
4 Washer 12 Bolt M10×1.25×40

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
