9.3 Fuel Tank/Seat Cushion
9.3.1 Removal

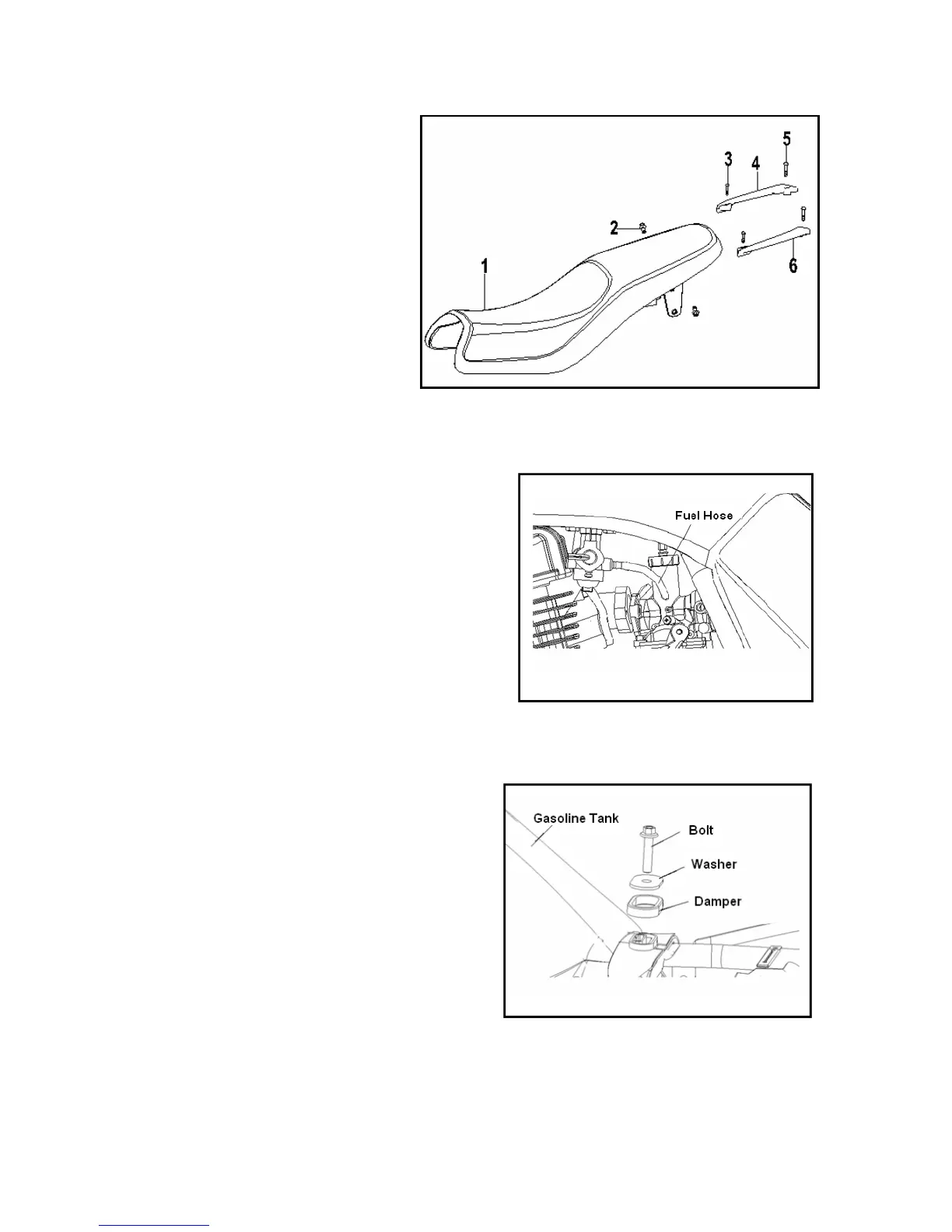

Remove left and right protecting plates (3)
and (4).
Insert ignition key into the seat lock. Rotate
clockwise the key and unlock it.
Pull downward and take out the helmet hook.
Release the pawl from frame and remove seat
cushion (1) .
Remove connector from lead wire of oil level
sensor.
Fuel switch shall be set at “OFF” position.
Disconnect fuel hose and carbon canister connecting hose.
Remove bolt, washer, damper and fuel tank.
Remove the fuel tank from the frame.
Note:
Refer to P115 and P116 for detailed disassembly and
assembly diagram.
9.3.1 Installation
Install the tank in the reverse order of removal.
Installation torque:
Seat cushion mounting bolt 22-29 N·m
Fuel tank mounting bolt 5 - 9 N·m

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
