KEEWAY RKV125 User Manual

Control Assembly
A
Tightening torque of hexagon socket Bolt 2：37-44 N·m
B
Tightening torque of Nut 19：5-9 N·m
C
Tightening torque of Bolt 20：5-9N·m

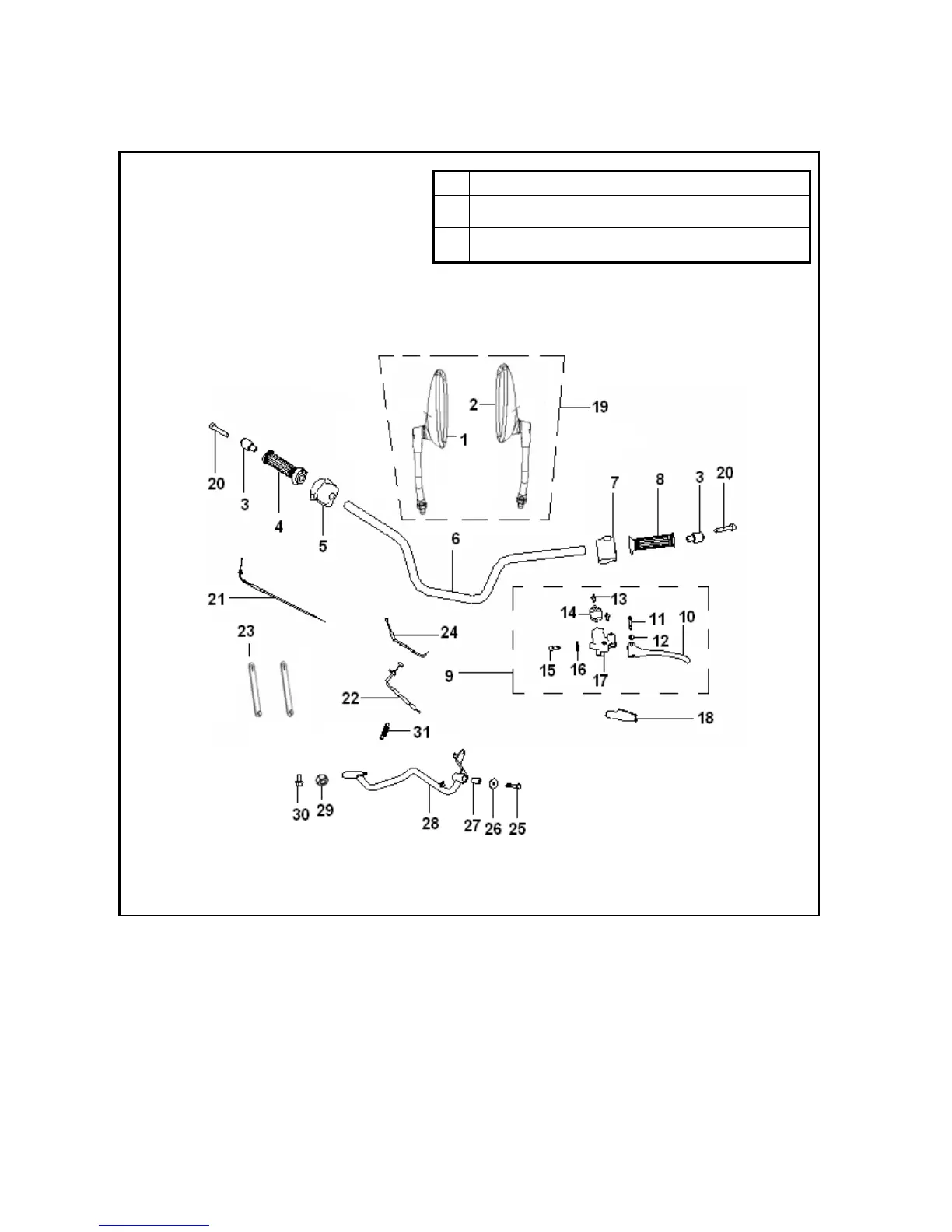

1 Right rear mirror assembly 2 Left rear mirror assembly 3 Handle gear block 4 Right handle assembly
5 Right combination switch 6 Handle welded assembly 7 Left combination switch 8 Left handle grip
9 Left handle assembly 10 Left handle 11 Handle mounting bolt 12 Nut M6 13 Bolt M6×25 14 Fixed
cover 15 Adjusting screw tube 16 Slotted nut 17 Left rear mirror holder 18 Clutch cable jacket 19 Rear mirror
assembly 20 Hexagon socket bolt M6×35 21 Throttle cable assembly 22 Clutch cable assembly 23 Stop valve
wire clamp 24 Choke cable assembly 25 Brake pedal mounting bolt 26 Spring retainer 10 27 Bushing
28 Brake pedal welded assembly 29 Bolt M6×40 30 Nut M6 31 Brake pedal return spring

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
