KEEWAY RKV125 User Manual

Screw off braking cylinder assembly mounting bolt.
Remove the braking cylinder assembly from front shock absorber.
Remove front shaft.
Remove front wheel.
Remove brake disc from the front wheel.
5.3.2 Inspection
Check if braking shoe assembly and brake disc are worn. Replace them if necessary.
Measure braking shoe and brake disc and record the maximum values.
Specifications
KW125 Front brake disc diameter φ260mm
Front brake disc thickness 4.0mm
* Attention
• Micrometer shall be used for the measurement.

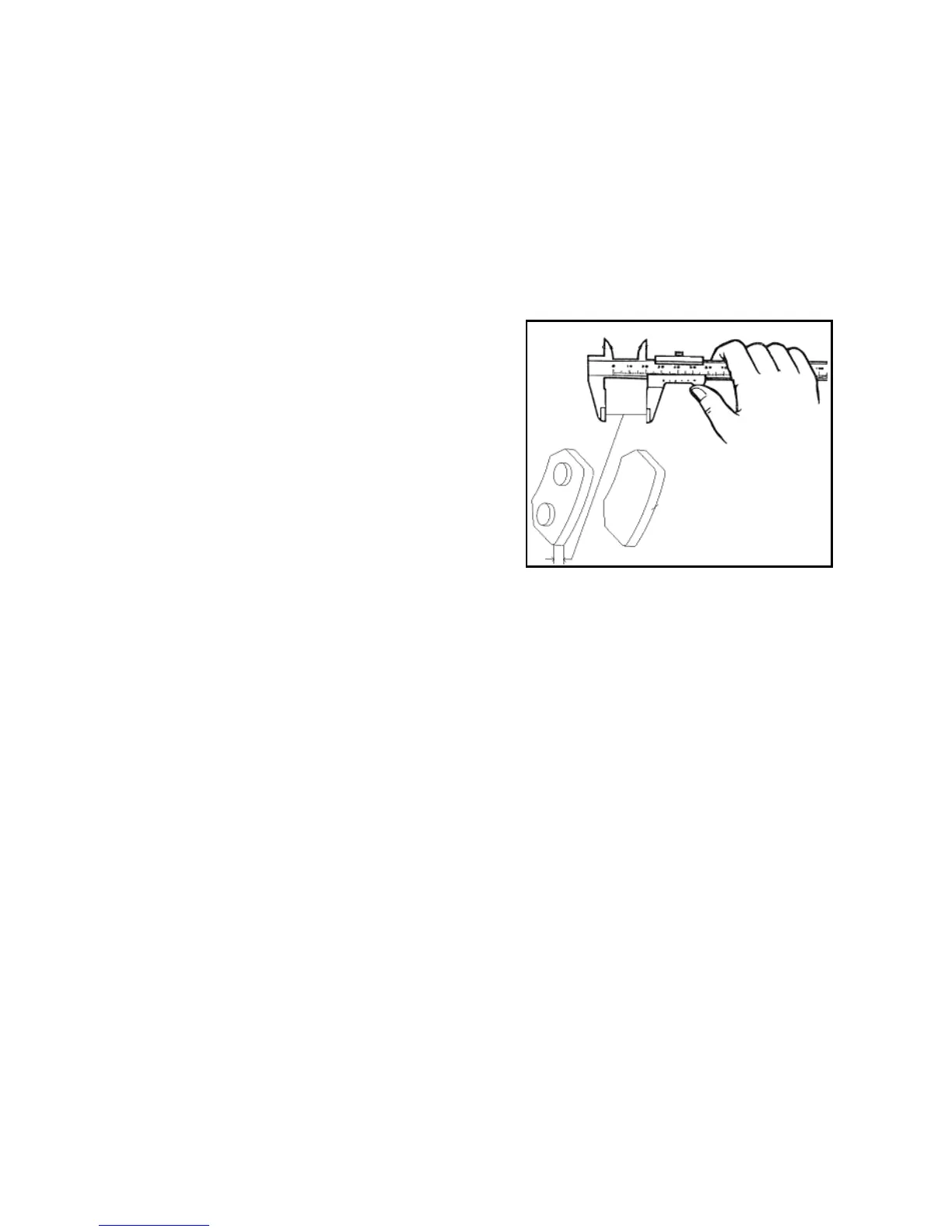

Measure the thickness of braking shoe.
If brake disc and braking shoe are contaminated by grease or
their thickness is smaller than service limit, replace them.
Service limit: Braking shoe: 3mm
Brake disc: 3mm
Note:
Braking shoes shall be replaced in pairs.
5.3.3 Installation
Install brake disc and front wheel.
Install front brake hose assembly and brake cylinder assembly.
Please do not contaminate braking shoe and brake disc with oil.
* Attention
A contaminated braking shoe will reduce braking performance and result in brake failure.
Tighten bolt and nut to their specified torque value.
Torque value:
Oil pump block assembly mounting bolt 5-9 N·m
Front brake cylinder assembly mounting bolt 22-29 N·m
Do not contaminate braking shoe with oil.
If a braking shoe is polluted by oil, clean it with brake cleaner.
*Attention

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
