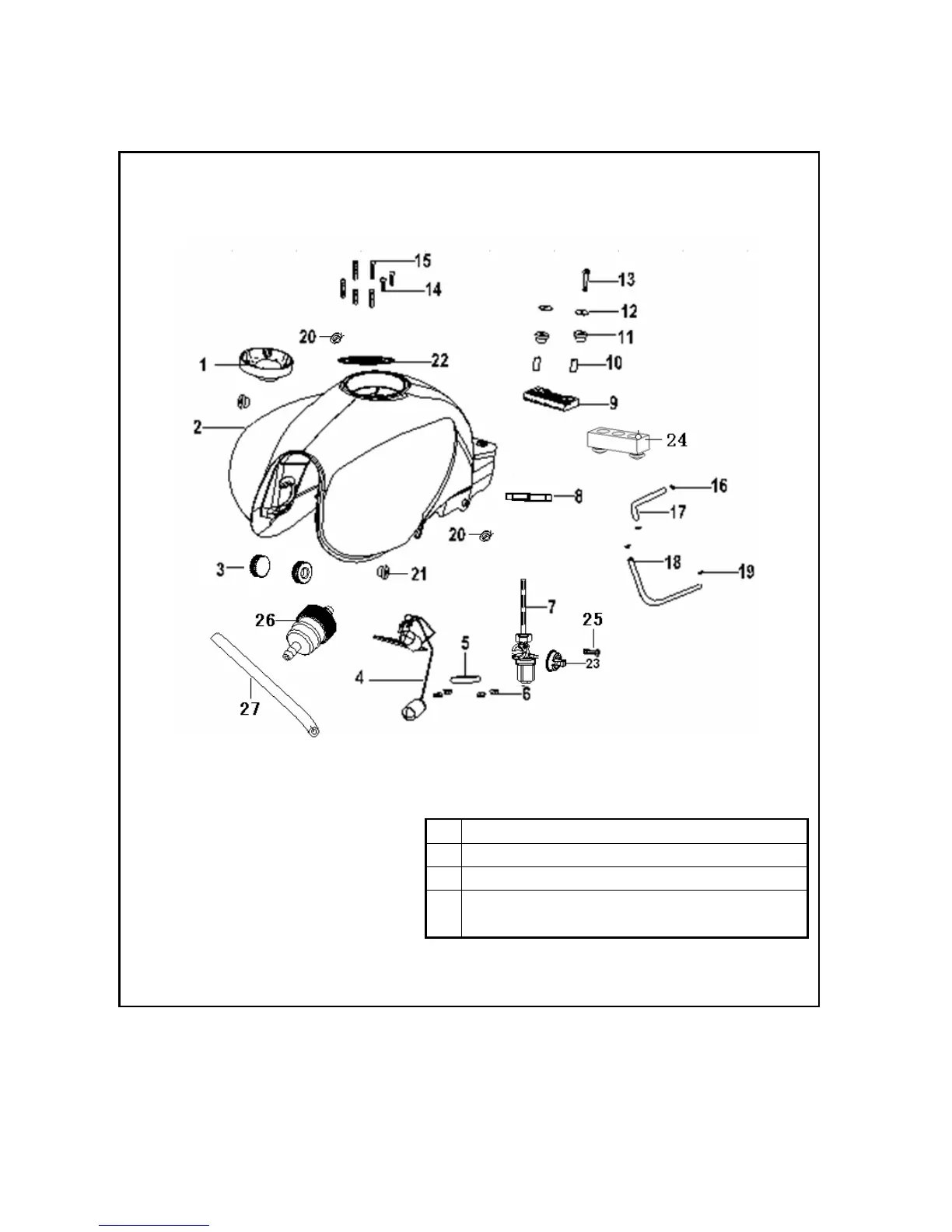

Fuel Tank Assembly
1 Fuel tank assembly 2 Sensor rubber gasket 3 Screw M5×22 4 Screw M5×10 5 Damper 6 Bolt M6×35
7 Washer 8 Fuel tank installation shaft sleeve 9 Fuel tank installation gasket 1 10 Fuel tank installation gasket
2 11 Oil hose 4.5×8.5 1 clip Ф8 13 Oil hose 5×9×600 14 Fuel tank switch assembly 15 Nut M6
16 Sensor assembly 17 Protecting plate installation gasket 18 Carbon canister
A
Max. capacity of fuel tank：17.5L
B
Tightening torque of Bolt 13 in the diagram：5-9 N·m
D
Tightening torque of Bolt 15 in the diagram：5-9 N·m
E
Note：Fuel switch shall be set at “OFF” position while
removing fuel tank.
