KEEWAY RKV125 User Manual

Carburetor

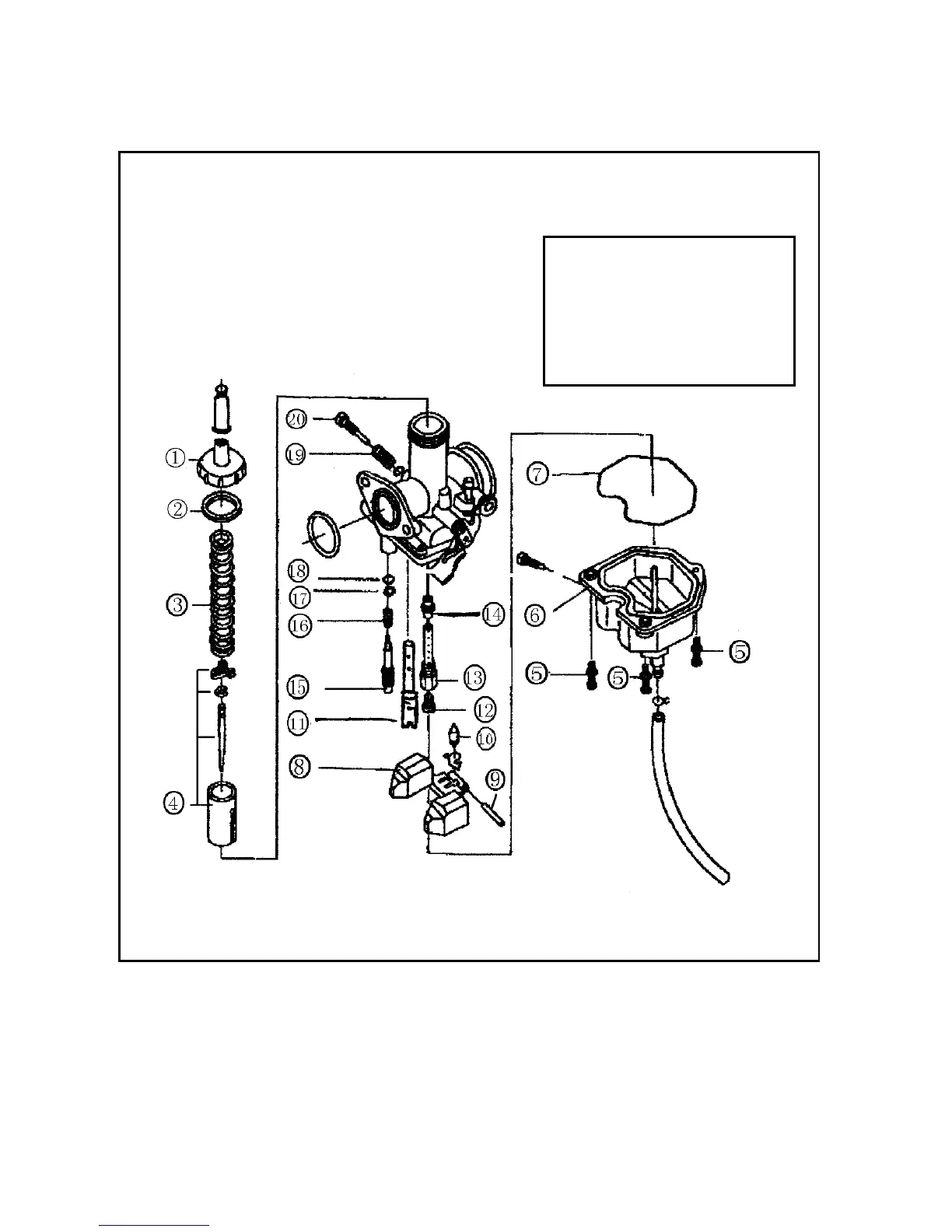

1- Upper cover 2- Upper cover seal ring 3- Plunger spring 4- Plunger assembly 5- Lower housing connecting
screw 6- Lower housing assembly 7- Seal ring 8- Float assembly 9- Float pin 10- Needle valve core 11-
Idle jet 12- Main jet 13- Main nozzle 14- Main foam pipe 15-Mixture screw 16- Mixture screw spring
17-Fixture screw washer 18- Mixture screw seal ring 19-Plunger adjusting screw spring 20- Plunger adjusting
screw
Attention: Gasoline is very
dangerous. Fire and smoking are
forbidden in working site.
When the carburetor is removed,
plug the intake pipe side with a cloth
in case foreign matters coming in.

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
