KEEWAY RKV125 User Manual

Clutch

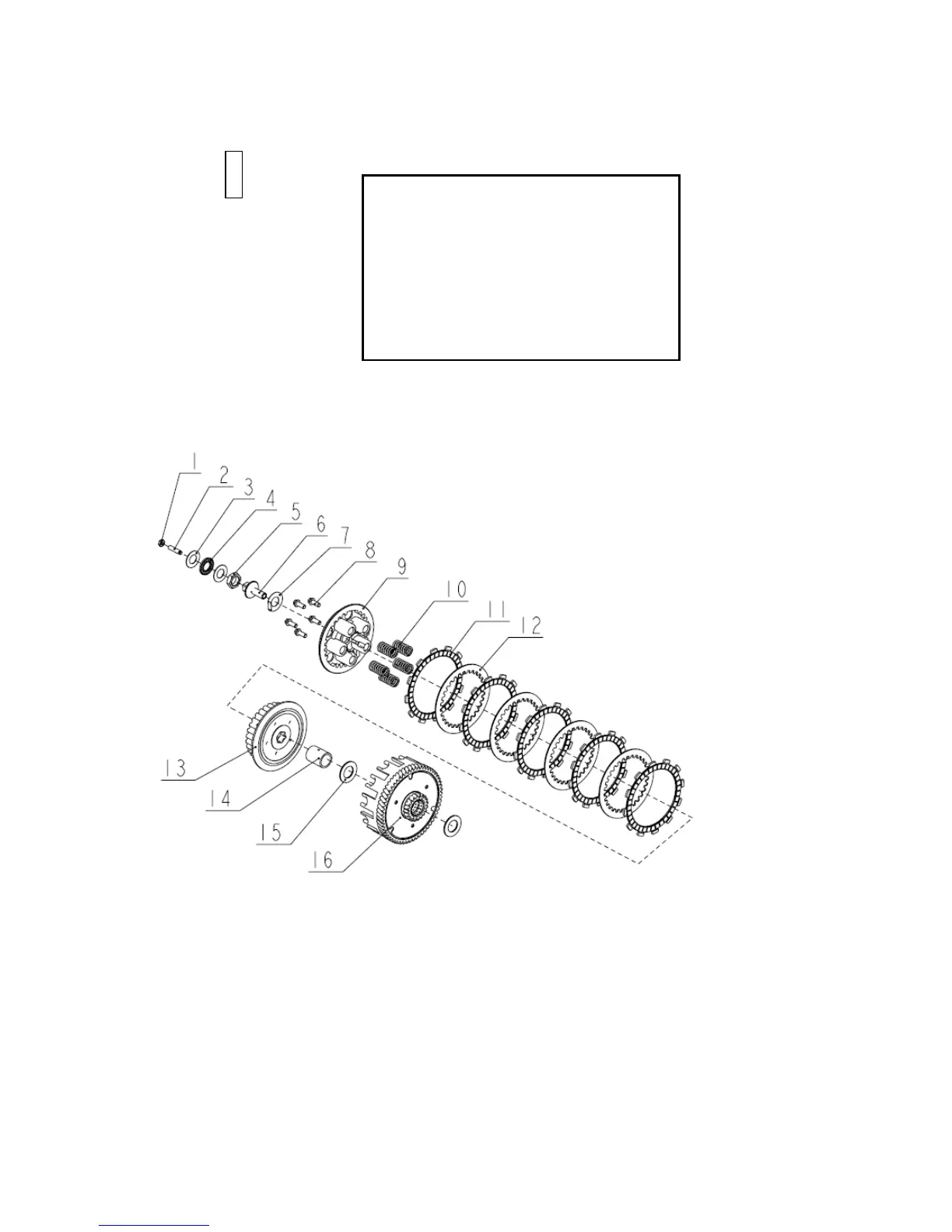

1 Nut 2 Cross recessed adjusting screw 3 Thrust washer 4 Plane needle bearing 5 Locknut 6 Bearing seat
7 Lock washer 8 Bolt combination assembly 9 Pressure plate 10 Clutch spring 11 Friction disc assembly
12 Driven friction plate 13 Center bracket 14 Sleeve 15 Thrust washer 16 Housing assembly
Attention: You don’t have to remove the
engine from frame while overhauling clutch.
Viscosity and level of engine oil will affect
operation of clutch. Please check first engine oil
and oil level before inspect clutch.
If one of the clutch springs, discs or plates
does not work, you shall replace them in pairs.
曲轴箱
化油器

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
