Use an electric or pneumatic tool to screw off flywheel locknut.
Pull out flywheel assembly (including the star wheel).
Remove gear display.
Remove cam shaft limit plate and take down cam assembly.
Remove bearing locating device.

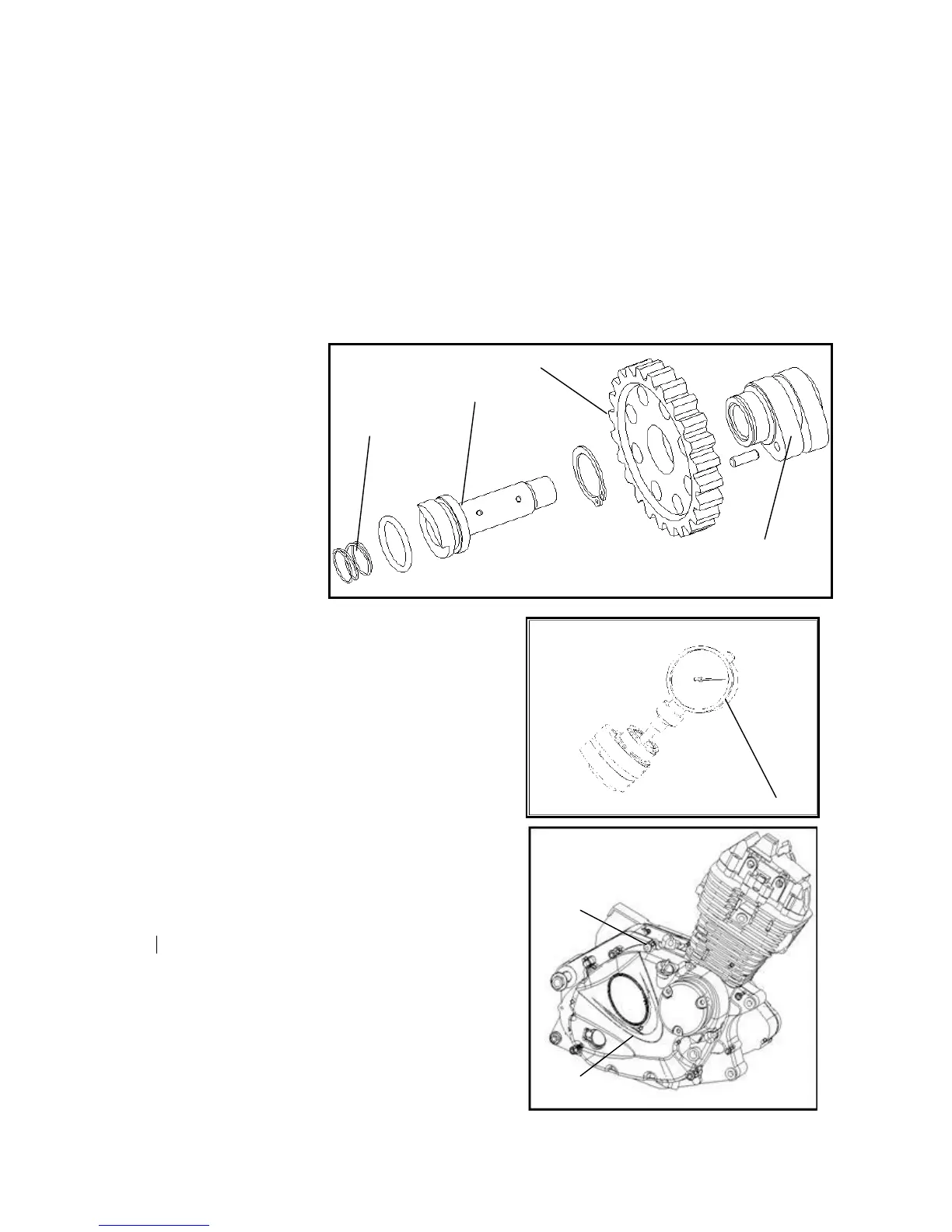

16.3.2 Exploded View of Cam Assembly
Measure cam bush ID.
Allowable limit: 14.10mm.
Measure cam height
Allowable limit: 32.5mm.
16.3.3 Crankcase Right Cover Removal
Screw off mounting bolt and take down the crankcase right
cover.
Remove clutch release lever assembly from the right cover.
