KEEWAY RKV125 User Manual

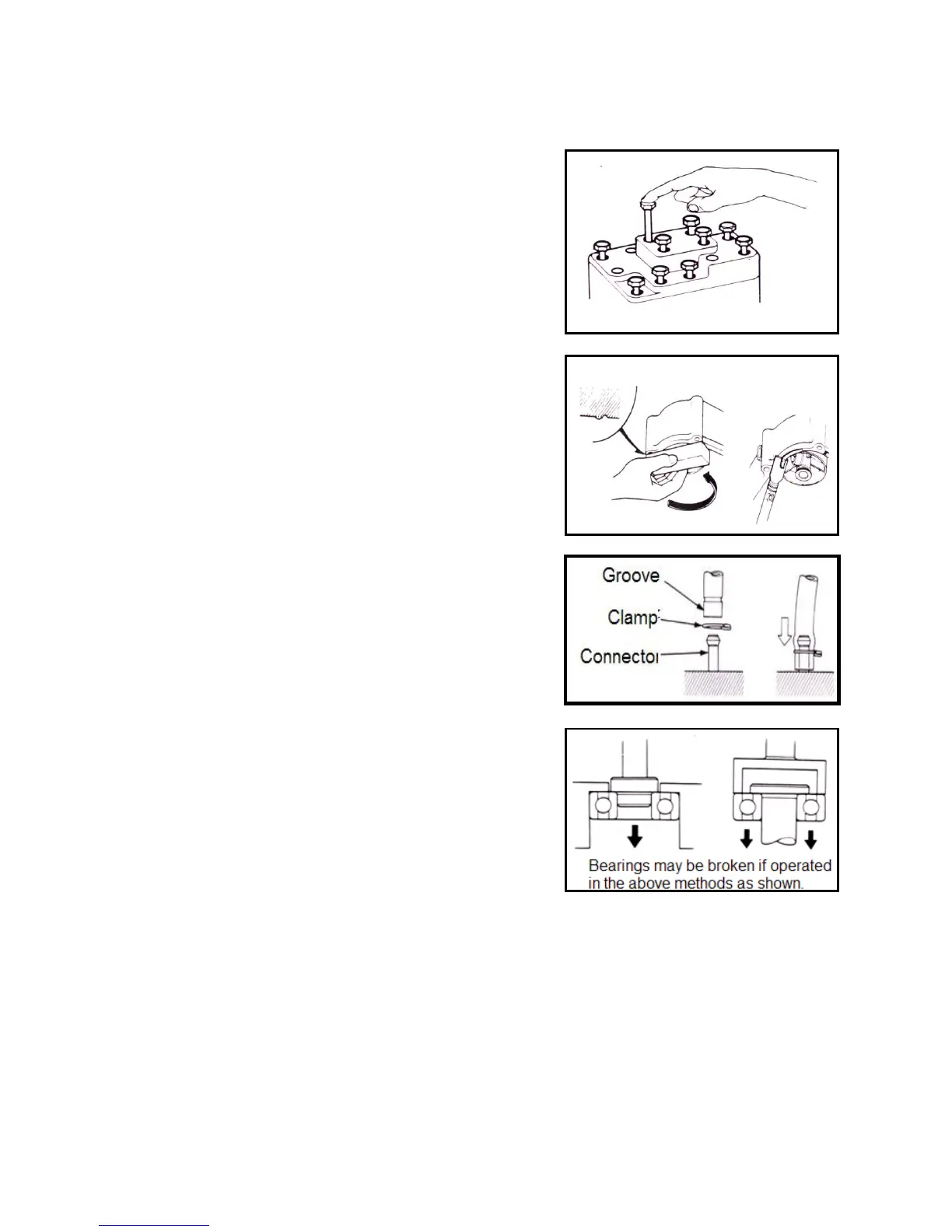

Length of bolts and screws are different for assembly components and protecting plates. They shall be installed at
correct positions. If confused, just put the bolt in the hole and see if it matches.
Fill lubricating grease into the groove during oil seal installation.
Check if the oil seal is smooth and if there is any damage to it.
Installation of rubber hose (fuel, vacuum, or coolant): insert its end
into bottom of connector so that there is enough room for the hose
clamp to grip the connector. Install the rubber or plastic dust cover
back to its originally designed position
Disassembly of ball bearing: use a tool to push against one or two
(internal and external) bearing races. If the force works only on one
bearing race (whatever internal or external), it may be damaged when
the bearing is disassembled, in which case, it must be replaced

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
