KEEWAY RKV125 User Manual

5.4.3 Installation
Install braking shoe assembly
Install rear wheel.
Install muffler assembly (24).
Install brake pedal assembly (21).
* Attention
A contaminated braking shoe will reduce braking
performance and result in braking failure.
Tighten bolt and nut to their specified torque value.
Torque value:
Rear wheel locknut: 85-98 N·m
Do not contaminate braking shoe with oil.
If a braking shoe is polluted by oil, clean it with brake
cleaner.

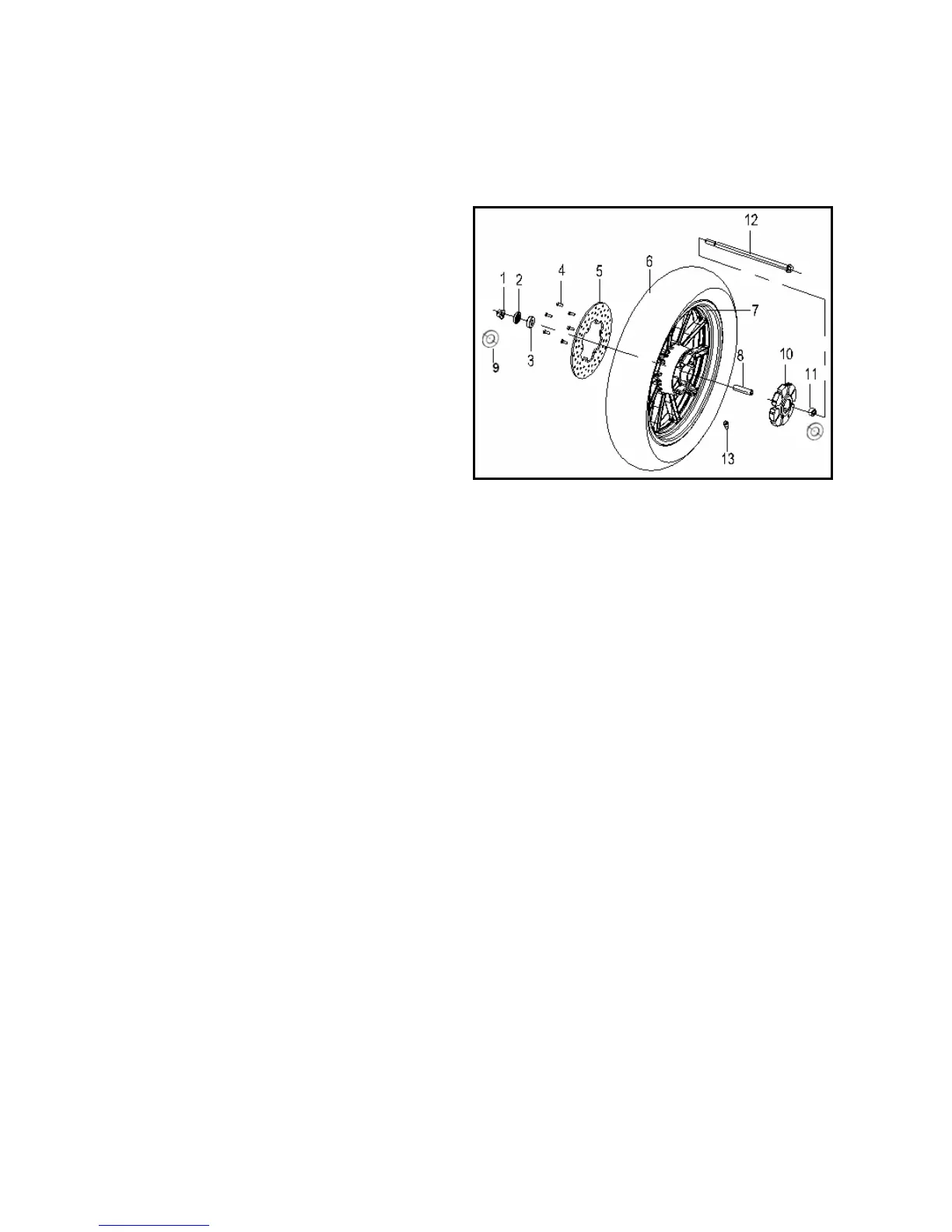

Rear brake:
1. Rear brake disc (5) 7. Rear wheel damper (10)
2. Locking nut M14×1.5 (1) 8. Bearing spacer (8)
3. Rear wheel rim (7) 9. Left shaft sleeve assembly (11)
4. Brake disc mounting bolt M6×16 (4) 10. Washer φ16×φ32×2 (9)
5. Rolling bearing 6302-2RS (3) 11. Tubeless tyre 130/70-17 (6)
6. Front wheel oil seal assembly (2) 12 Rear shaft M14×1.5×292
* Attention
A contaminated braking shoe will reduce braking performance
Note: Detailed breakdown drawing refers to P86.

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
