Kenwood eXcelon KDC-X991 User Manual

English
|
57
ANT.
CONT
MUTE
P.CONT
–
+
REMO.CONT
FRONT
SUB
WOOFER
REAR

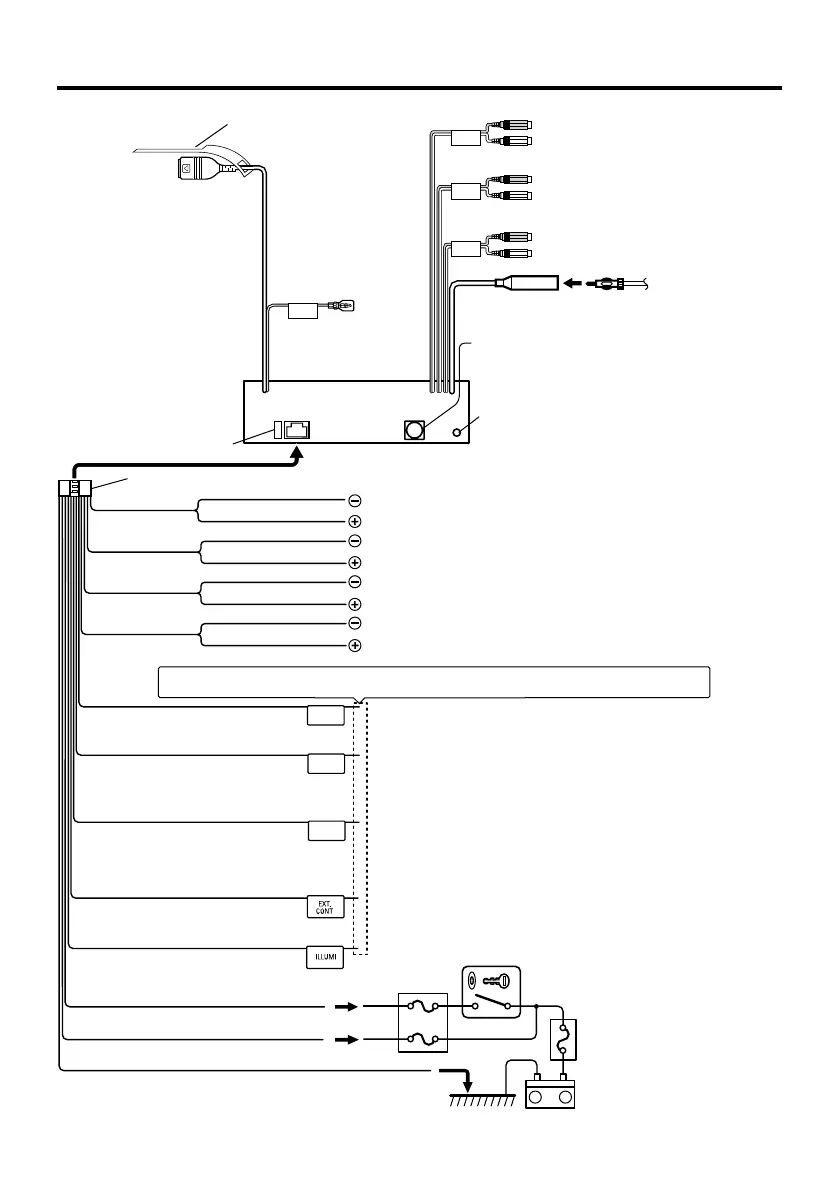

Connecting Wires to Terminals
FM/AM antenna input
Sub Woofer left output (White)
Sub Woofer right output (Red)
Fuse (10A)
Wiring harness (Accessory1)
White/Black
Gray/Black
Green/Black
Purple/Black
White
Gray
Green
Purple
To front left speaker
To front right speaker
To rear right speaker
To rear left speaker
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
Ignition key switch
Car fuse box (Main fuse)
ACC
Car fuse box
Battery
If no connections are made, do not let the wire come out from the tab.
Rear left output (White)
Rear right output (Red)
Power control wire (Blue/White)
Motor antenna control wire (Blue)
Dimmer control wire (Orange / White)
When using the optional power amplifier, connect to its power control
terminal.
To car light control switch
Depending on what antenna you are using, connect either to the
control terminal of the motor antenna, or to the power terminal for the
booster amplifier of the film-type antenna.
External amplifier control wire
(Pink/Black)
To "EXT.AMP.CONT." terminal of the amplifier having the external amp
control function.
Front left output (White)
Front right output (Red)
To connect the Kenwood navigation system, consult your
navigation manual.
TEL mute wire (Brown)
Connect to the terminal that is grounded when either the telephone
rings or during conversation.
To connect these leads, refer to the relevant
instruction manuals.
To Kenwood disc changer/ External optional accessory
To use the steering wheel
remote control feature,
you need to an exclusive
remote adapter (not
supplied) matches your car
is required.
Steering remote control
(Light Blue/Yellow)
USB connector (1 m)
⁄
• Do not remove the cap when you
do not use the USB cable. The
connector will cause the unit to
malfunction if it gets in touch with
any metallic part of the vehicle.
• Fasten the connector with the
tape so that the cable will not
come off.
⁄
⁄
AUX input (Stereo)
Use the mini-plug which is stereo type and does not
have any resistance.
To USB device
Tape
B64-3767-0000KEnglish.indd57B64-3767-0000KEnglish.indd57 07.5.102:16:09PM07.5.102:16:09PM

Kenwood eXcelon KDC-X991 Specifications

FM Tuner Section

frequency range	87.9 MHz – 107.9 MHz
usable sensitivity	9.3 dBf (0.8 μV/75 Ω)
quieting sensitivity	15.2 dBf (1.6 μV/75 Ω)
frequency response	30 Hz – 15 kHz
signal to noise ratio (MONO)	70 dB
selectivity	≥ 80 dB
stereo separation	40 dB

AM Tuner Section

frequency range	530 kHz – 1700 kHz
usable sensitivity	28 dBμ (25 μV)

CD Player Section

spindle speed	1000 – 400 rpm (CLV 2times)
frequency response	10 Hz – 20 kHz
total harmonic distortion	0.008 %
signal to noise ratio	110 dB
dynamic range	93 dB

USB Interface

usb standard	USB 1.1/ 2.0
maximum supply current	500 mA
file system	FAT16/ 32

Audio Section

maximum output power	50 W x 4
full bandwidth power	22 W x 4
speaker impedance	4 – 8 Ω
tone action band 1	60 – 200 Hz ±9 dB
tone action band 2	250 – 1k Hz ±9 dB
tone action band 3	1.25k – 4k Hz ±9 dB
tone action band 4	5k – 16k Hz ±9 dB
preout level / load	5000 mV/10 kΩ
preout impedance	≤ 80 Ω

Auxiliary Input

frequency response	20 Hz – 20 kHz
input maximum voltage	1200 mV
input impedance	100 kΩ

General

operating voltage	14.4 V
current consumption	10 A
installation size	182 x 53 x 155 mm
weight	3.31 lbs (1.5 kg)
