Number Files: Check to name each file with a specific time.
The code behind the save name is:
Example: Plane.cdr_20080408135603_EMF.EMF
Plane.cdr = name of the file
2008 = year
04 = month
08 = day
13 = hour
56 = minute
03 = second
EMF =file type
.EMF = file extension
Output location: This must be set to:
C:\My Documents\KcamEMF
EMF Converter Settings
When checked, will automatically save your files with the selected X and Y DPI. Both DPI’s must be
increments of the DPI in the table section above for best results. If split, X=600 and Y=300, the X
would have twice the resolution while keeping the engraving time in the Y axis to half or 300 lines
per inch. For best results use the same DPI for the X and Y.
NOTE: It does not matter what Kern Printer Driver you select when this is checked, you will always
print at the DPI entered here. When you uncheck this box the Kern Printer Driver from the Win
2000/XP EMF Printer Driver Settings section will take effect.
Post Processor (k-vision)
This section is only used if the k-vision camera system is installed and being used. Please call a
KERN technical support member for correct settings.

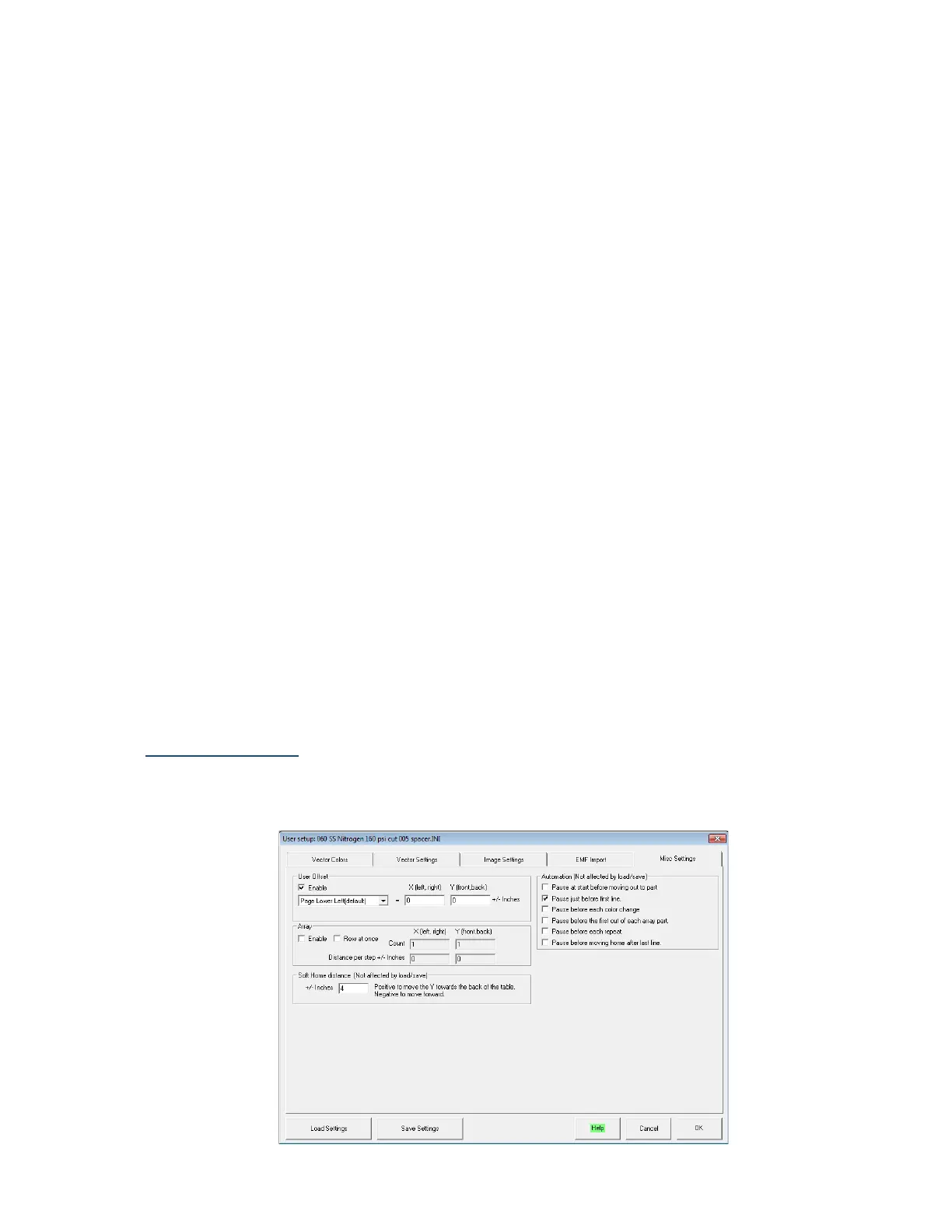

Misc Settings Tab
The Misc Settings tab lets you set a user offset, create an array, set a soft home position and set a
variety of pauses.
Setup Menu, Misc Settings
32
