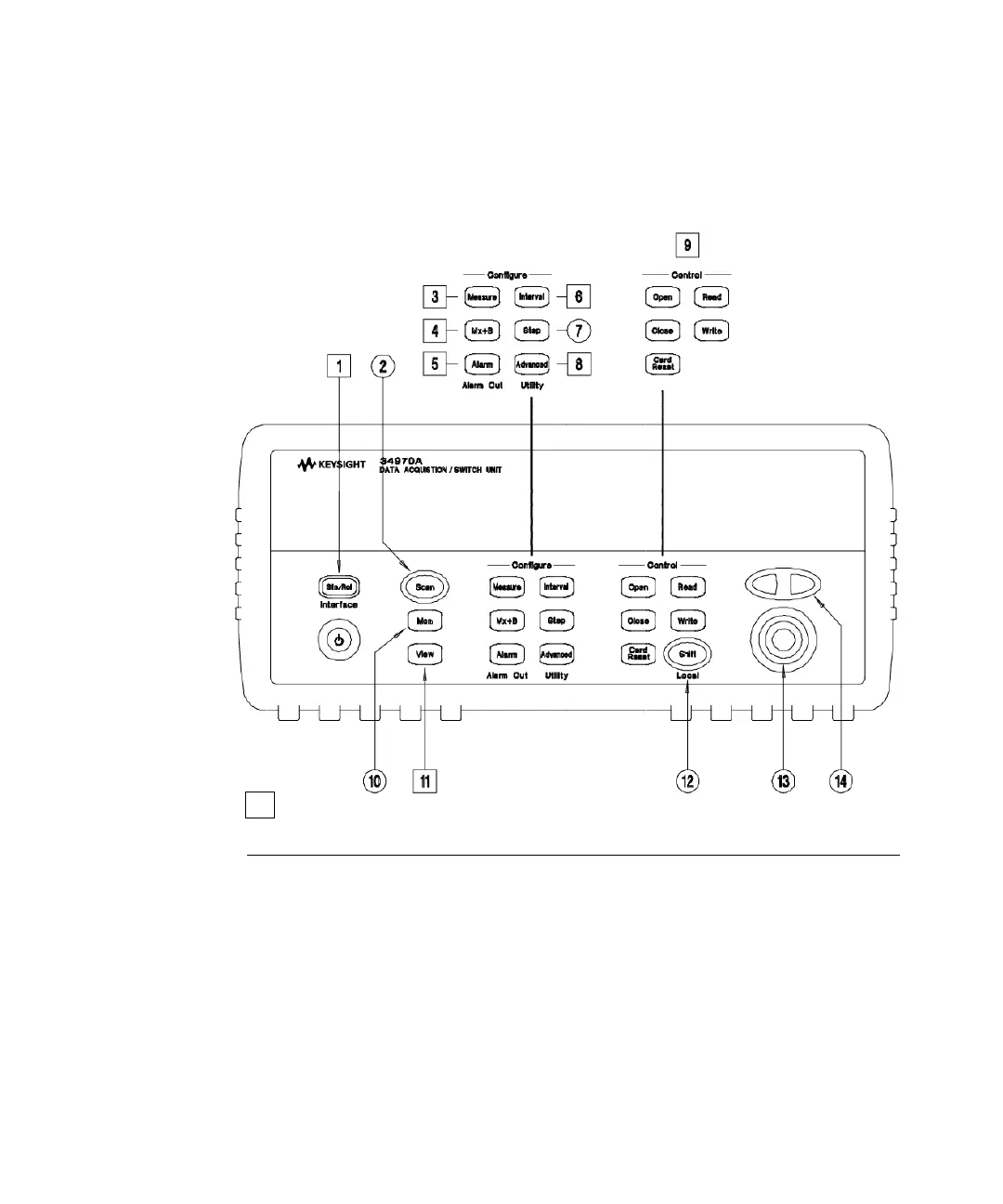

The Front Panel at a Glance
1 State Storage / Remote Interface Menus
2 Scan Start / Stop Key
3 Measurement Configuration Menu
4 Scaling Configuration Menu
5 Alarm / Alarm Output Configuration Menu
6 Scan-to-Scan Interval Menu
7 Scan List Single Step / Read Key
8 Advanced Measurement / Utility Menus
9 Low-Level Module Control Keys
10 Single-Channel Monitor On / Off Key
11 View Scanned Data, Alarms, Errors Menu
12 Shift / Local Key
13 Knob
14 Navigation Arrow Keys
Denotes a menu key. See the next page for details on menu operation.

Keysight 34972A Specifications

General

Model	34972A
Category	Data Acquisition/Switch Unit
Manufacturer	Keysight Technologies
Scan Rate	Up to 250 channels/sec
Voltage Measurement Range	100 mV to 300 V
Resistance Measurement Range	100 Ω to 100 MΩ
Operating Temperature	0 °C to 55 °C
Storage Temperature	-40 °C to 70 °C
Switching Modules	Supports plug-in modules
Current Measurement Range	1 µA to 1 A
Temperature Measurement	Thermocouples, RTDs, and Thermistors
Interface	USB, LAN
Memory	50, 000 readings
Weight	3.6 kg
