low-voltage, low-frequency signals. The effects of both internal noise and external
noise pickup are critical when measuring “slow” signals. The error is inversely
proportional to frequency. Measurement errors will also occur if you attempt to
measure the frequency (or period) of an input following a DC offset voltage
change. You must allow the internal DMM’s input DC blocking capacitor to fully
settle before making frequency measurements.
If the external noise pickup becomes large enough to exceed the hysteresis of the
measuring circuitry, the frequency function may actually become unusable.
External shielding and low-pass filtering may help.

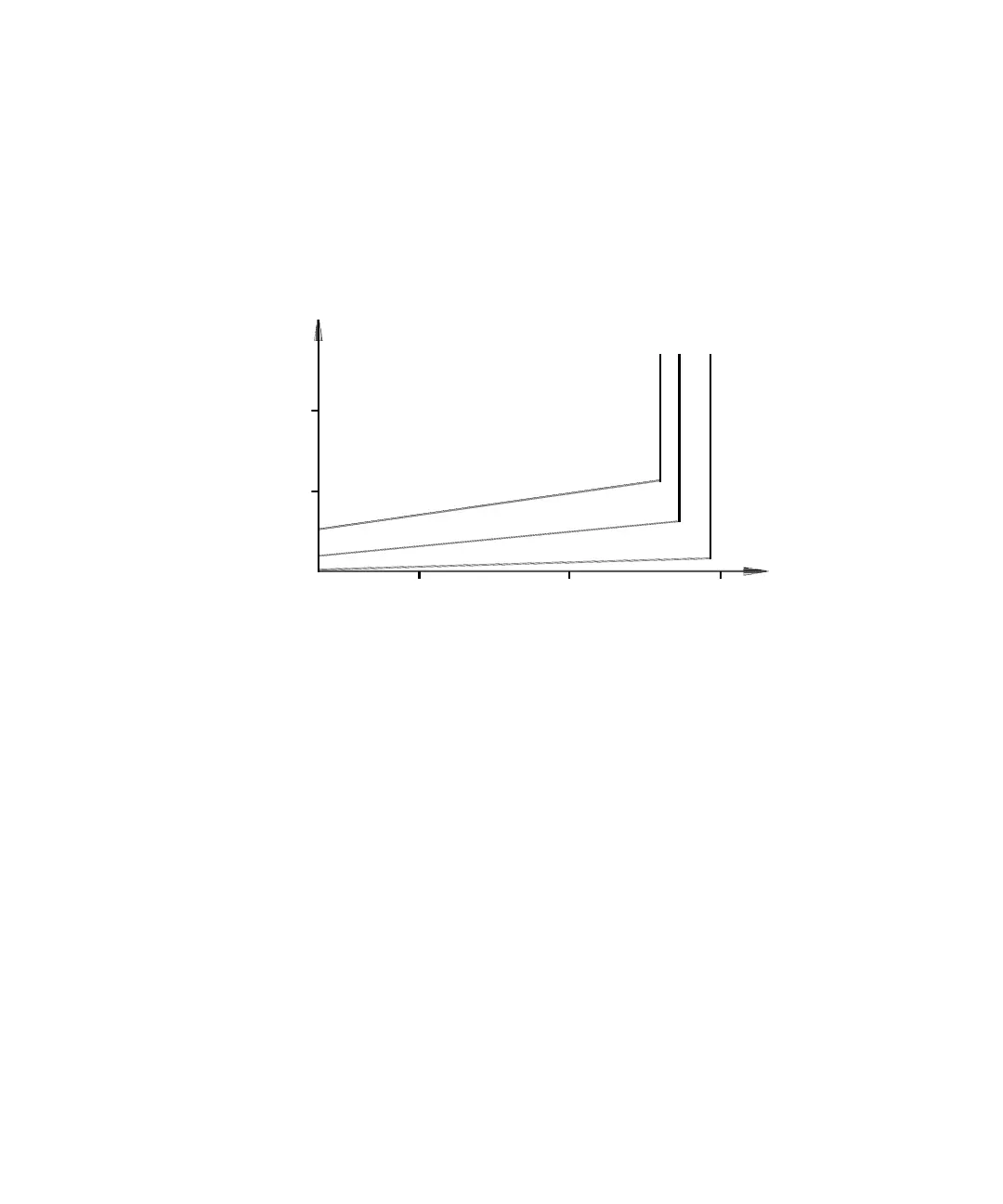

Input Random Noise (RMS)
1 mV 2 mv 3 mv
10 mv, 10 Hz
10 mv, 100 Hz
100 mV, 10 Hz
1%
0.5%
Input Error
