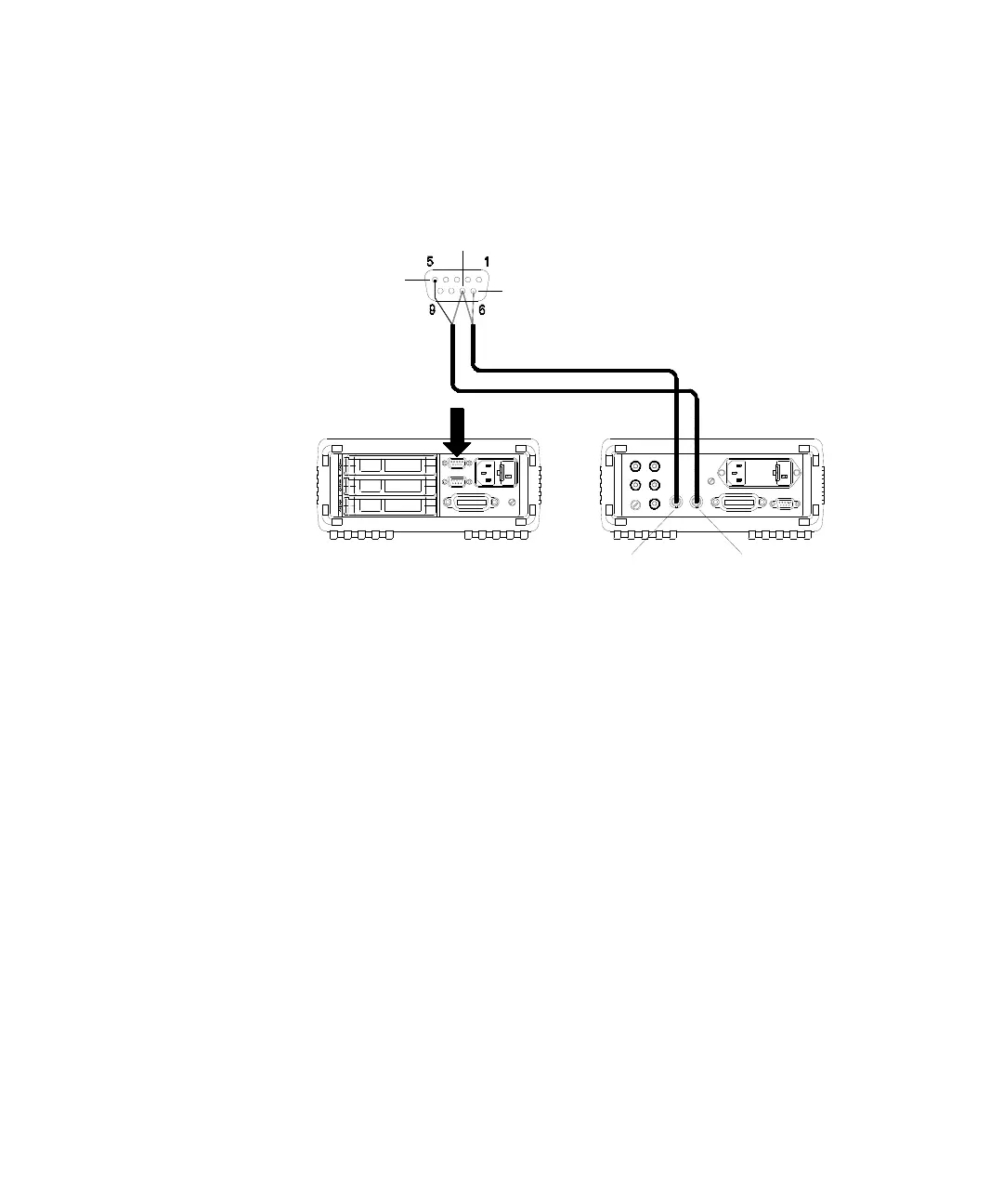

To control scanning with an external instrument, two control lines are provided.
When the 34970A/34972A and the external instrument are properly configured,
you can synchronize a scan sequence between the two.
Channel Closed OUT
34970A/34972A
External DMM
Ext Trig INVM Complete OUT
Ext Trig IN
GND
