Keysight 53230A - Rise Time and Fall Time; Figure 3-8 Rise Time and Fall Time Measurements

3 53220A/53230A Measurements
106 Keysight 53220A/53230A User’s Guide
Rise time and fall time

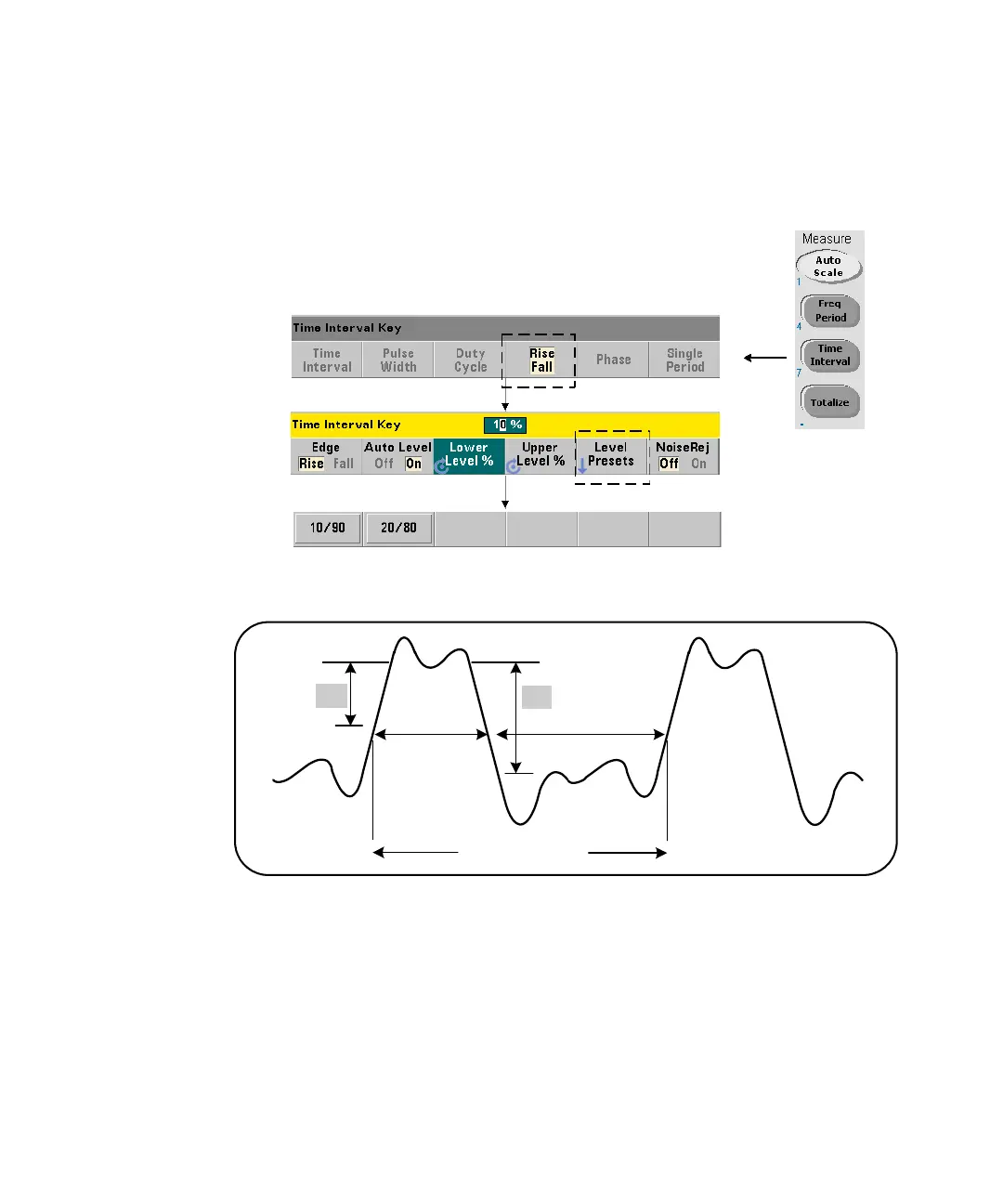

An example of rise and fall times on an input signal are shown in Figure 3-8.
Figure 3-8 Rise time and fall time measurements.
+ width
-width
frequency
t
r
t
f
10
90
