Keysight 53230A - Advanced Gate Control - Gate Stop Hold off and Gate Stop; Figure 5-9 Gate Stop Hold off and Gate Stop Sequence

Triggering and Gating 5
Keysight 53220A/53230A User’s Guide 195
Advanced gate control - gate stop hold off and gate stop
Advanced gate control also includes (optionally) enabling a gate stop hold off and
setting the gate stop (close) parameters. Figure 5-9 repeats the gate stop hold off
and gate stop sections of the full trigger/gate cycle shown in Figure 5-2.

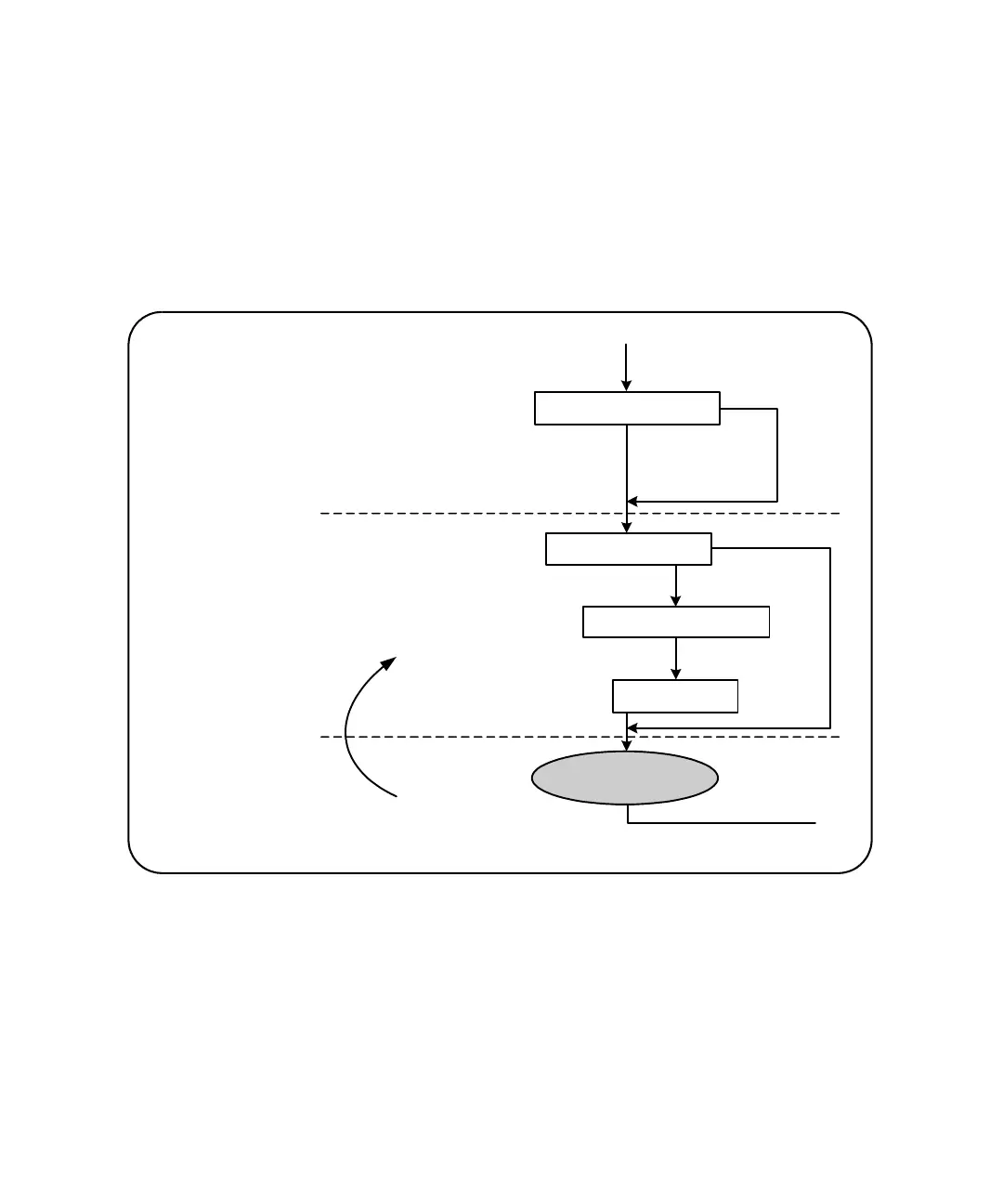

Figure 5-9 Gate stop hold off and gate stop sequence.
(from Gate Start (open))
* not available with time interval
Gate Stop Source
SENSe:GATE:STOP:SOURce
IMMediate
Gate Slope
SENSe:GATE:STOP:SLOPe
Gate Stop (closed)
EXTernal
INPut[1]* | INPut2 *
SENSe:GATE:EXTernal:SOURce
External Gate Source
EXTernal /
(internal)
Gate Stop Hold Off
SENSe:GATE:STOP:HOLDoff:EVENts
(input channel)
SENSe:GATE:STOP:HOLDoff:SOURce
IMMediate
(holdoff disabled)
SENSe:GATE:STOP:HOLDoff:TIME
Gate stop source does not apply to rise/fall
time, duty cycle, pulse width, phase, and
single-period measurements
