Advanced gate control - gate start
Setting the gate source to ADVanced during configuration of frequency, totalizing,
and time interval measurements enables additional (start/stop) control of the

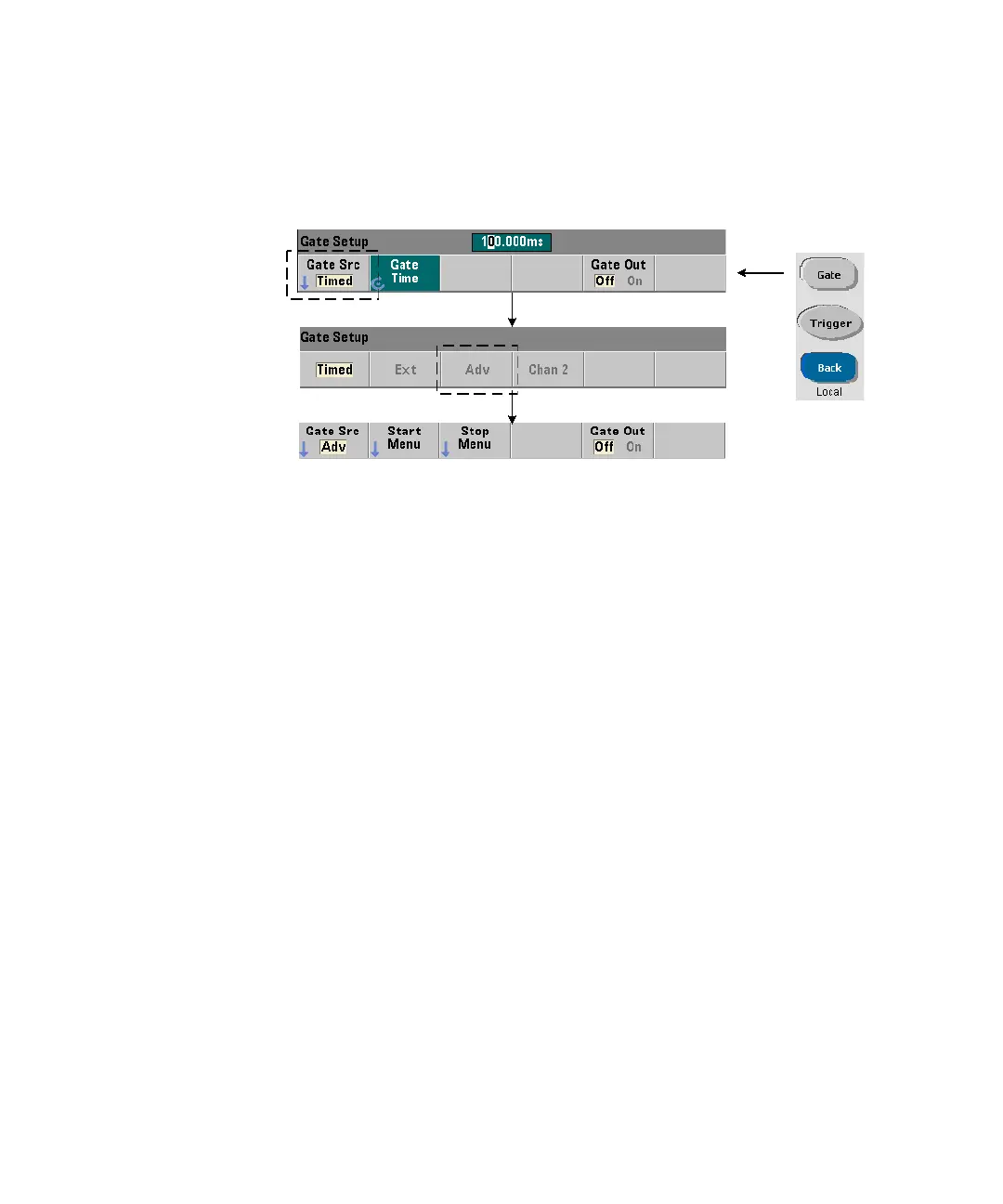

measurement gate. Figure 5-8 repeats the gate start source section of the full
trigger/gate cycle shown in Figure 5-2.
