2 53220A/53230A Software Installation and Interface Configuration
58 Keysight 53220A/53230A User’s Guide
Figure 2-3 Starting Keysight Connection Expert.
Locating the instruments
Keysight Connection Expert opens with a welcome screen and window similar to
that shown in Figure 2-4. The computer interfaces configured during installation
are displayed in the left column (Explorer pane), the properties of the configured
interface are displayed in the right column (Properties pane).
To search the network for the counter, click and select LAN Instrument
located on the Connection Expert tool bar. After selecting LAN Instrument,
Connection Expert performs an automatic find (Auto Find) of all instruments on
the same subnet as the computer.
Select the counter from the list and then click ‘OK’. Communication paths to the
instruments are verified and the instruments are added to the configured
interface. Instruments added to the LAN in this manner are subsequently
programmed using VXI-11 protocol.

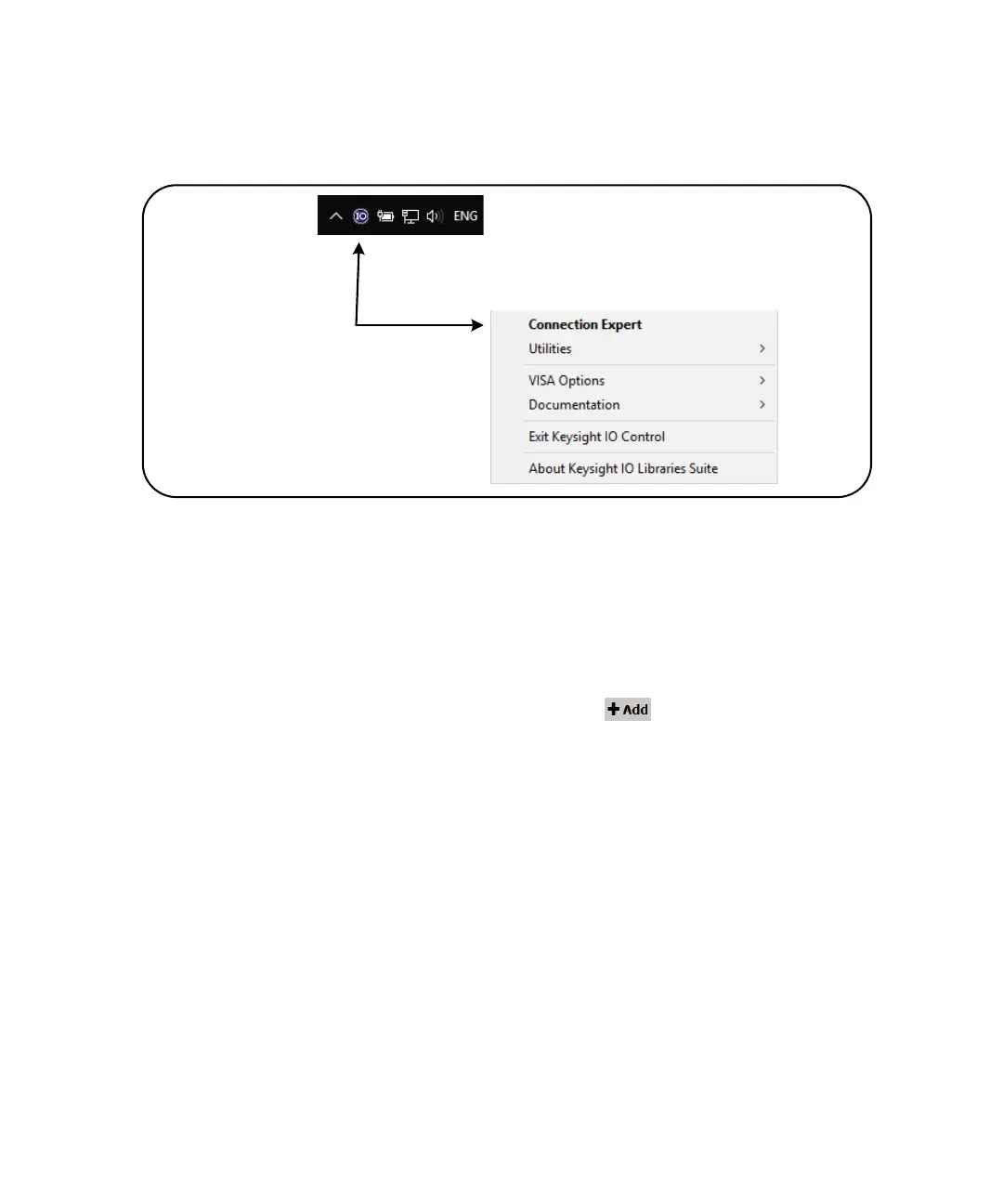

Clicking the icon opens
the pop-up menu
