53220A/53230A Software Installation and Interface Configuration 2
Keysight 53220A/53230A User’s Guide 57
Remote interface configuration
The following sections cover front panel configuration of the LAN, USB, and GPIB
interfaces. The interfaces can also be configured programmatically using the
‘Remote Interface Configuration’ commands in the SCPI SYSTem subsystem. This
subsystem, plus descriptions of all SCPI commands, is located in the
‘Programming Reference’ section of the 53210A/53220A/53230A Product
Reference CD.
Configuring the LAN interface

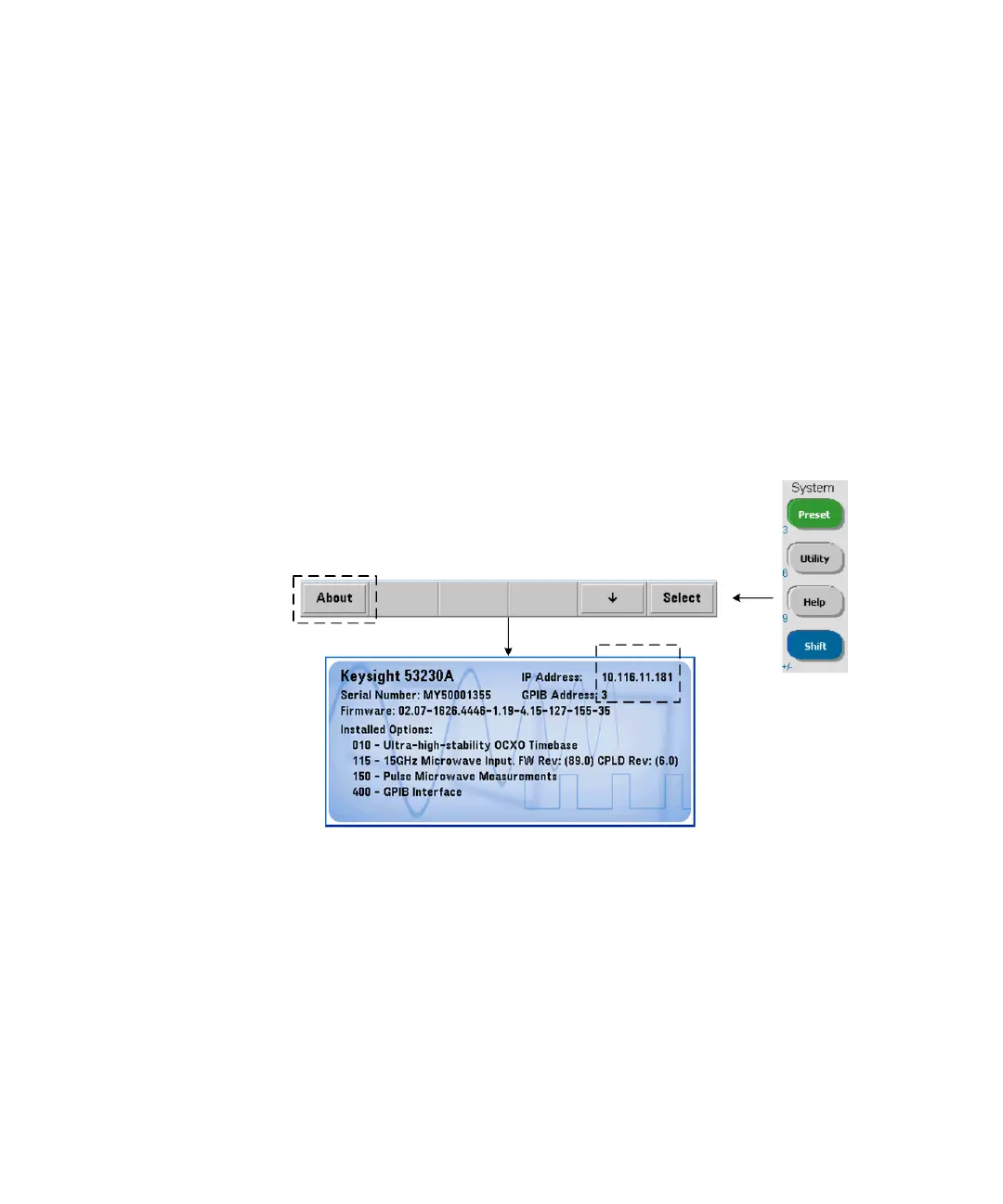

With the counter connected to the LAN interface, the IP address can be read from
the front panel as follows.
Once the IP address is known, start the Connection Expert utility by clicking the
‘Keysight IO Control’ icon and selecting “Keysight Connection Expert” from the
pop up menu as shown in Figure 2-3.
