Keysight 53230A - Figure 5-5 Gate Source Sequence

Triggering and Gating 5
Keysight 53220A/53230A User’s Guide 169

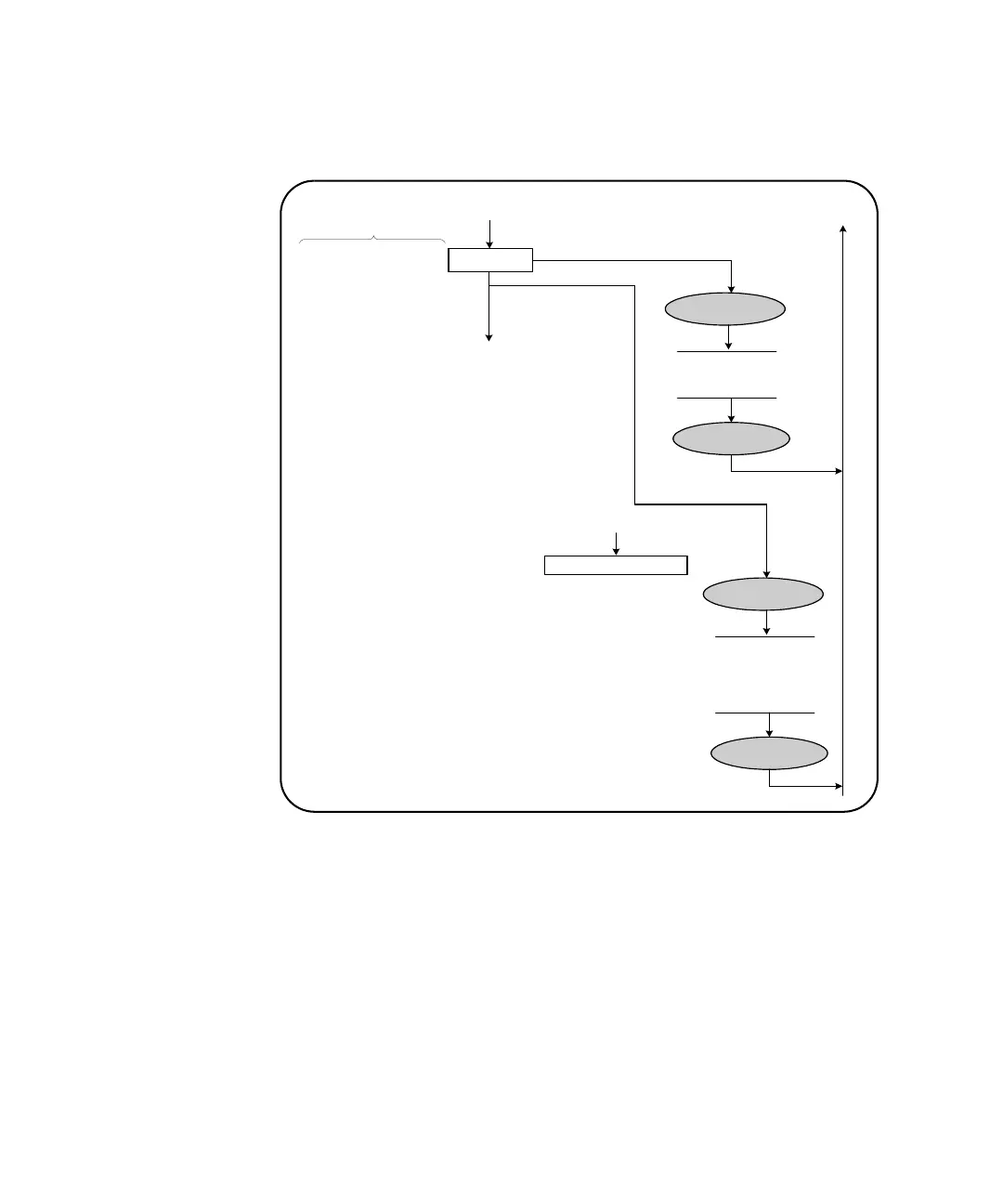

Figure 5-5 Gate source sequence.
Typical counter measurements and most applications use an internal signal as the
gate source to control the gate for a specified (or default) period of time.
For applications requiring synchronization with external events or requiring more
precise gate control, an external gate or advanced gating is used. External gate
signals are applied to the counter’s rear panel ‘Gate In/Out’ BNC or to the channel
1 or channel 2 input.
Gate Source
IMMediate
ADVanced
SENSe:FREQuency:GATE:SOURce
SENSe:TOTalize:GATE:SOURce
SENSe:TINTerval:GATE:SOURce
SENSe:FREQuency:GATE:TIME
SENSe:TOTalize:GATE:TIME
SENSe:TINTerval:GATE:SOURce IMMediate
Gate Start (open)
Gate Stop (closed)
TIME
SENSe:FREQuency:GATE:POLarity
SENSe:TOTalize:GATE:POLarity
SENSe:TINTerval:GATE:POLarity
EXTernal
Gate Start (open)
Gate Stop (closed)
INPut[1] | INPut2 *
INPut[{1|2}]:LEVel[{1|2}][:ABSolute]
* not available with time interval
(from Triggered State)
(to SAMPle COUNt reached?)
Gate In/Out BNC Disable
OUTPut:STATe OFF
(for all EXTernal Sources)
(measurement complete)
shown first sequentially
set last programmatically
