Keysight E5092A ENA Series Configurable Multiport Test Set 159
Replaceable Parts
Replaceable Parts List for E5092A-020
Replaceable Parts List for E5092A-020
Top View (Major Assemblies)

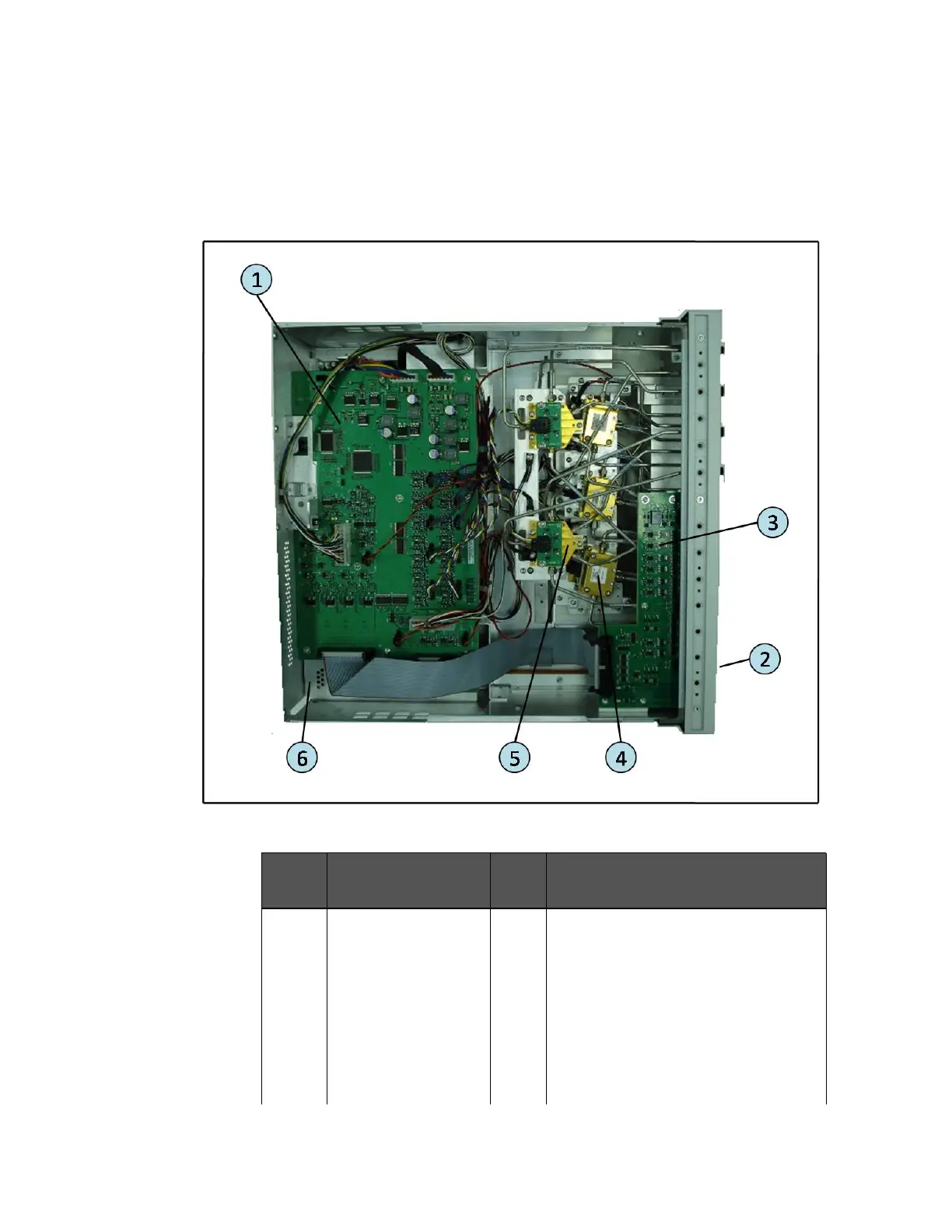

Figure 4-1 Top View (Major Assemblies)
Table 4-1 Top View (Major Assemblies)
Ref.
Desig.
Keysight Part Number Qty. Description
1 E5092-66601 1 SWITCH CONTROL USB PCA
2 E5092-66602 1 SWITCH INDICATOR LED PCA
3 E5092-66603 1 DUT CONTROL PCA
4 P9397-60001 6 20GHz SPDT PIN SWITCH MODULE
5 P9398-60001 4 20GHz SP4T PIN SWITCH MODULE
6 E5092-00103 1 RF SW CHASSIS
