Keysight ENA Series - Front Frame Removal

Keysight E5092A ENA Series Configurable Multiport Test Set 191
Replacement Procedure
Replacement Procedure for E5092A-020
Front Frame Removal
Tools required
• TORX screwdriver, T10, T15 and T20
Procedure
Refer to Figure 5-3 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 189.
Step 2. Remove the front chassis as described in “Front Chassis Detachment” on
page 190.
Step 3. Remove the top trim from the front chassis (item 1).
Step 4. Remove the three TORX T15 screws (item 2 ) fastening the top frame.
Step 5. Remove the three TORX T15 screws (item 8 ) fastening the bottom frame.
Step 6. Slide the front frame and remove from the front chassis.

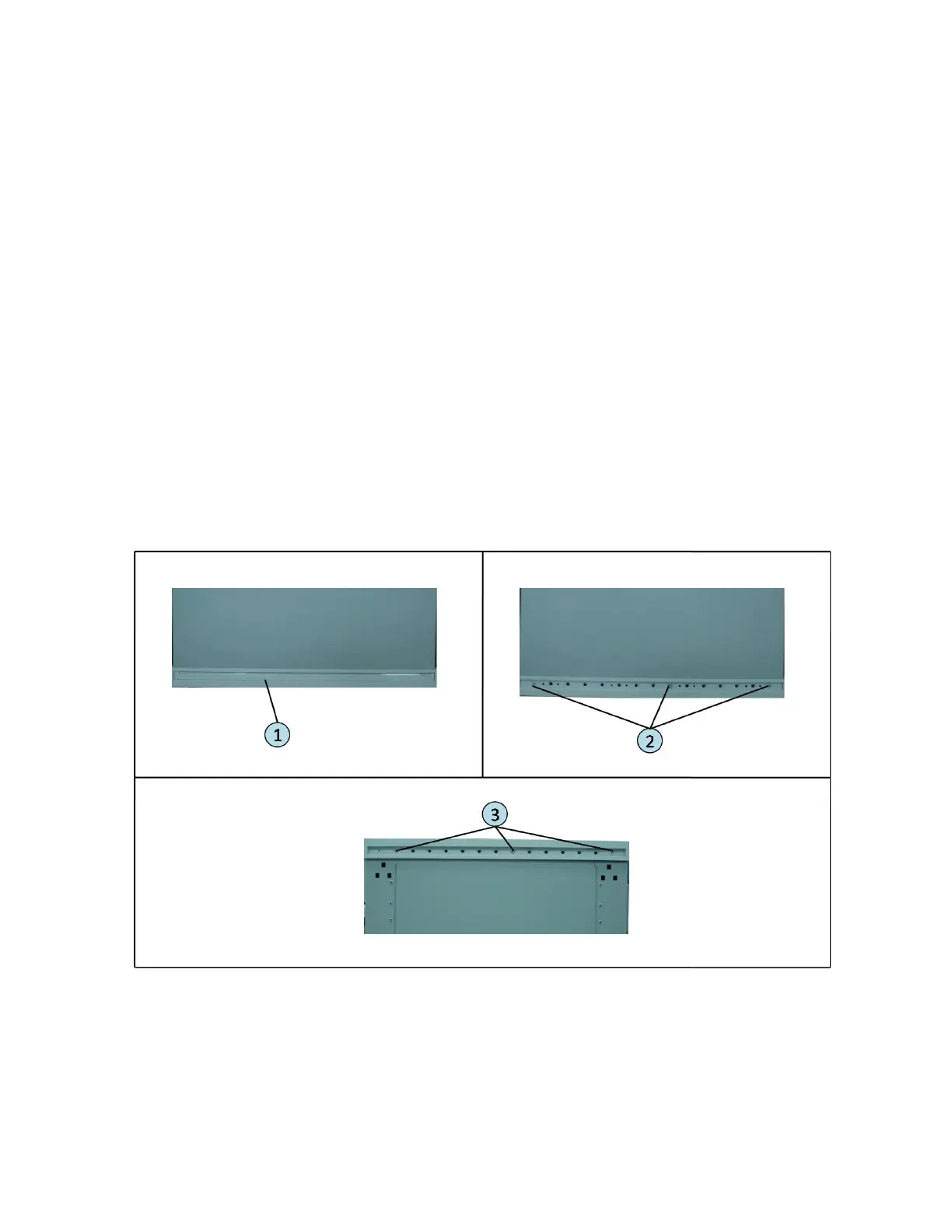

Figure 5-3 Front Frame Removal
