192 Keysight E5092A ENA Series Configurable Multiport Test Set
Replacement Procedure
Replacement Procedure for E5092A-020
5-
A1 Switch Control Board Removal
Tools Required
• TORX screwdriver, T10, T15 and T20.
Procedure
Refer to Figure 5-4 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 189.
Step 2. Disconnect all the cables connected on the A1 Switch control board.
Step 3. Remove the two TORX T10 screws (item 1) from the rear panel.
Step 4. Remove the six TORX T10 screws (item 2) fastening the A1 board.
Step 5. Remove the A1 board from the chassis.

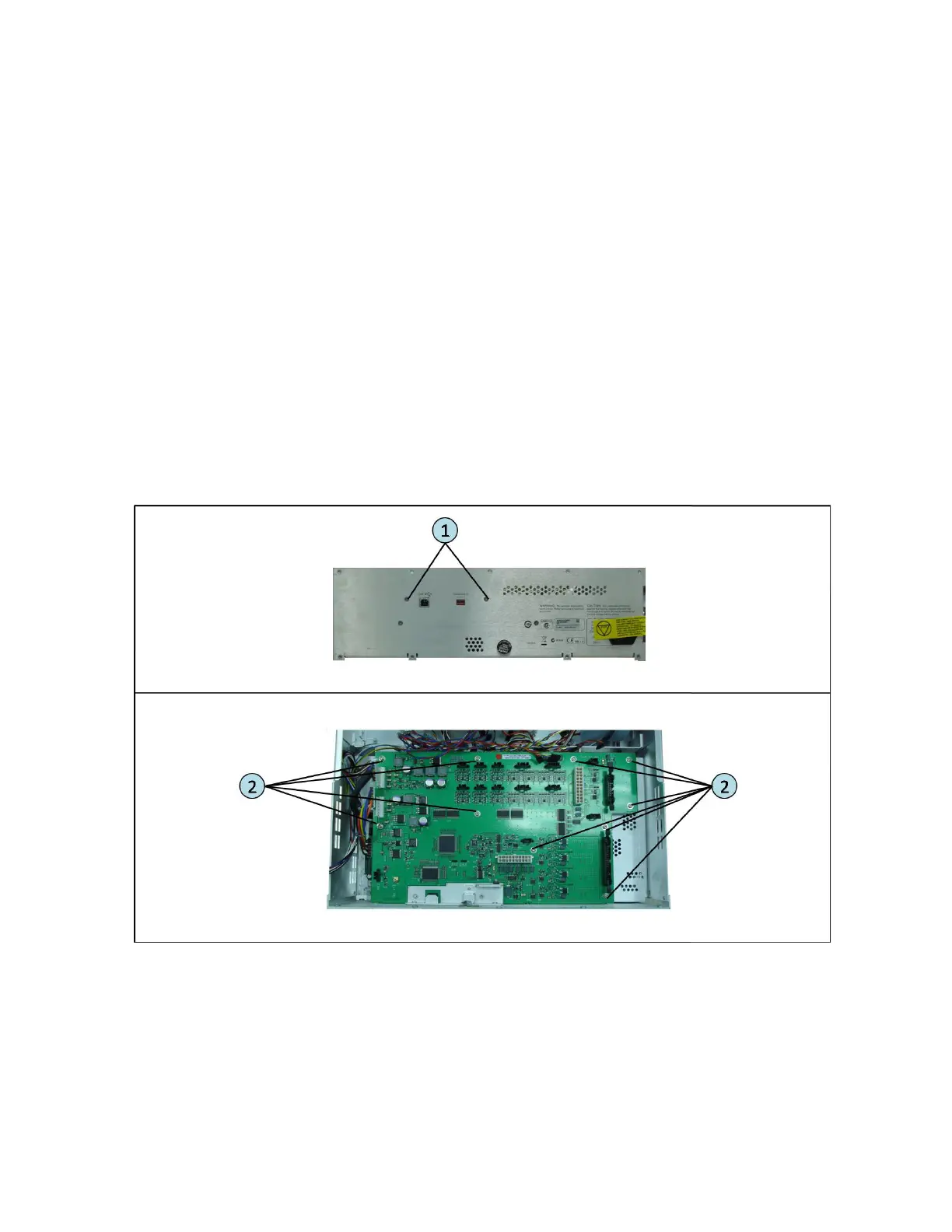

Figure 5-4 A1 Switch Control Board Removal
To Next Page
