Keysight ENA Series - SP4 T Switch Assembly (Top View)

Keysight E5092A ENA Series Configurable Multiport Test Set 173
Replaceable Parts
Replaceable Parts List for E5092A-020
SP4T Switch Assembly (Top View)

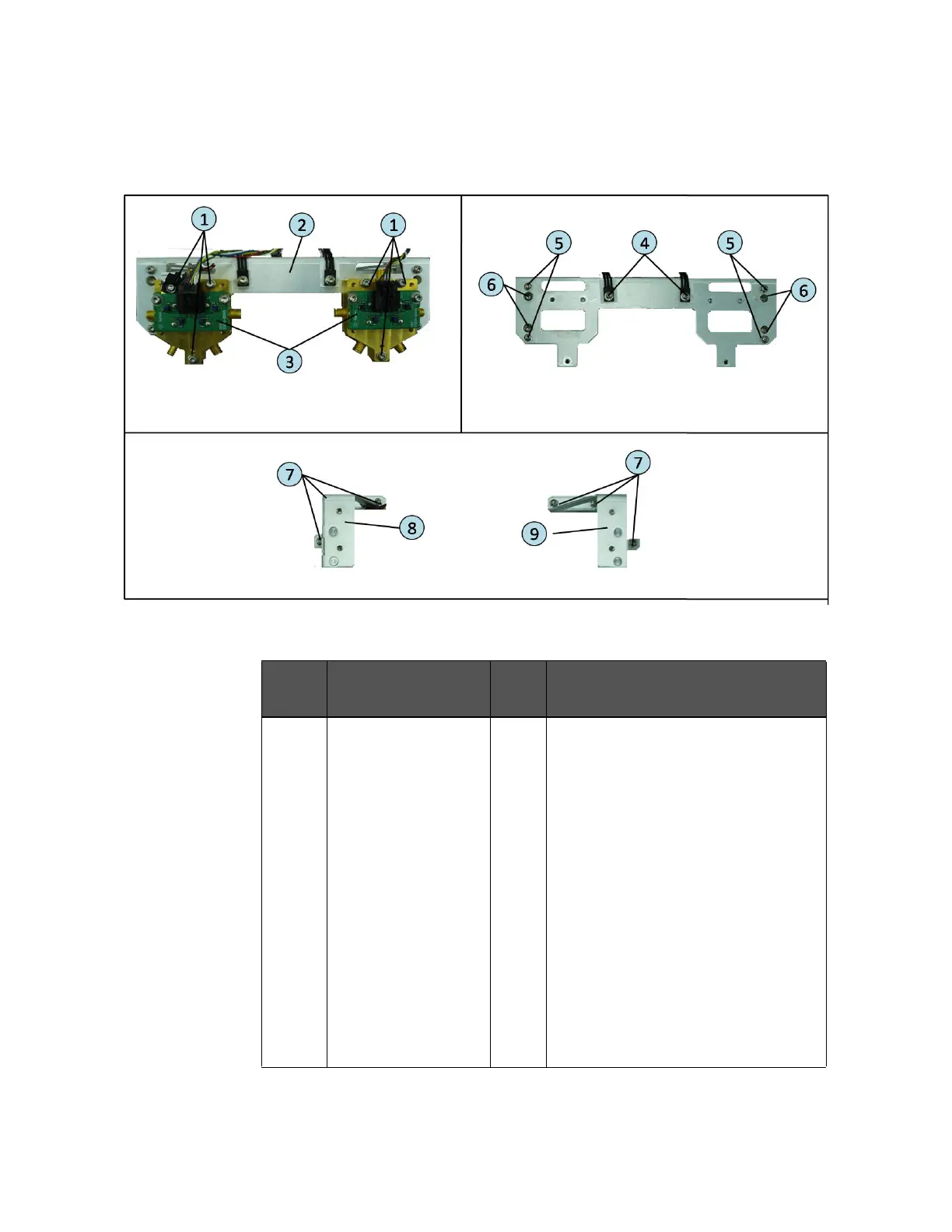

Figure 4-13 SP4T Switch Assembly (Top View)
Table 4-13 SP4T Switch Assembly (Top View)
Ref.
Desig.
Keysight Part Number Qty. Description
1 0515-2693 6 SCREW MACH M3X0.5
2 E5092-01217 1 BRACKET3
3 E5092-66505 2 SP4T SW BIAS PIN ADAPTER PCA
4 E5092-61645
0515-0372
3050-0891
2
2
4
WIRE ASSY
SCREW MACH M3X0.5
WASHER
5 0515-0372 4 SCREW MACH M3X0.5
6 0515-0375 4 SCREW MACH M3X0.5
7 0515-0372 6 SCREW MACH M3X0.5
8 E5092-01218 1 SIDE RIB1
9 E5092-01219 1 SIDE RIB2
