194 Keysight E5092A ENA Series Configurable Multiport Test Set
Replacement Procedure
Replacement Procedure for E5092A-020
5-
Power Switch Removal
Tools Required
• TORX screwdriver, T10, T15 and T20.
Procedure
Refer to Figure 5-6 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 189.
Step 2. Remove the A1 switch control board as described in “A1 Switch Control Board
Removal” on page 192.
Step 3. Disconnect the power cable (item 1).
Step 4. Remove the two TORX T20 screws (item 2) from the chassis.
Step 5. Pull out the three terminals (item 3) from the AC receptacle terminal.
Step 6. Disjoint the joint (item 4) from the power switch and the rod.
Step 7. Remove the two TORX T10 screws (item 5) from the chassis and remove the
power switch.

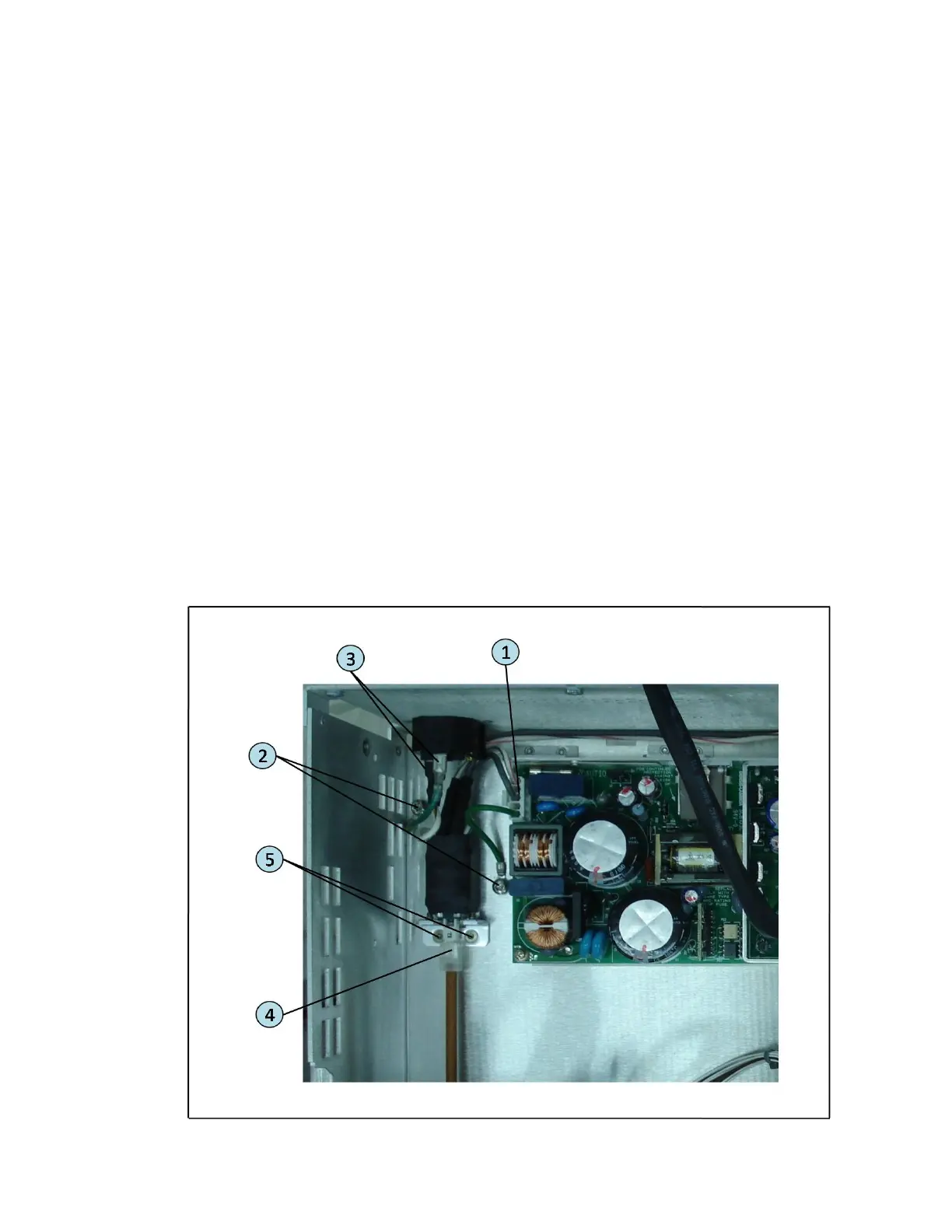

Figure 5-6 Power Switch Assembly Removal
