Keysight E5092A ENA Series Configurable Multiport Test Set 195
Replacement Procedure
Replacement Procedure for E5092A-020
Main Board Removal
Tools Required
• Box wrench 5.5mm
• TORX screwdriver, T10, T15 and T20.
Procedure
Refer to Figure 5-7 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 189.
Step 2. Detach the front chassis as described in “Front Chassis Detachment” on
page 190.
Step 3. Remove the front frame as described in “Front Frame Removal” on page 191.
Step 4. Remove the three TORX T10 screws (item 1) from the assembly.
Step 5. Remove the four hex nut (item 2) from the assembly.
Step 6. Lift the main board from the assembly.

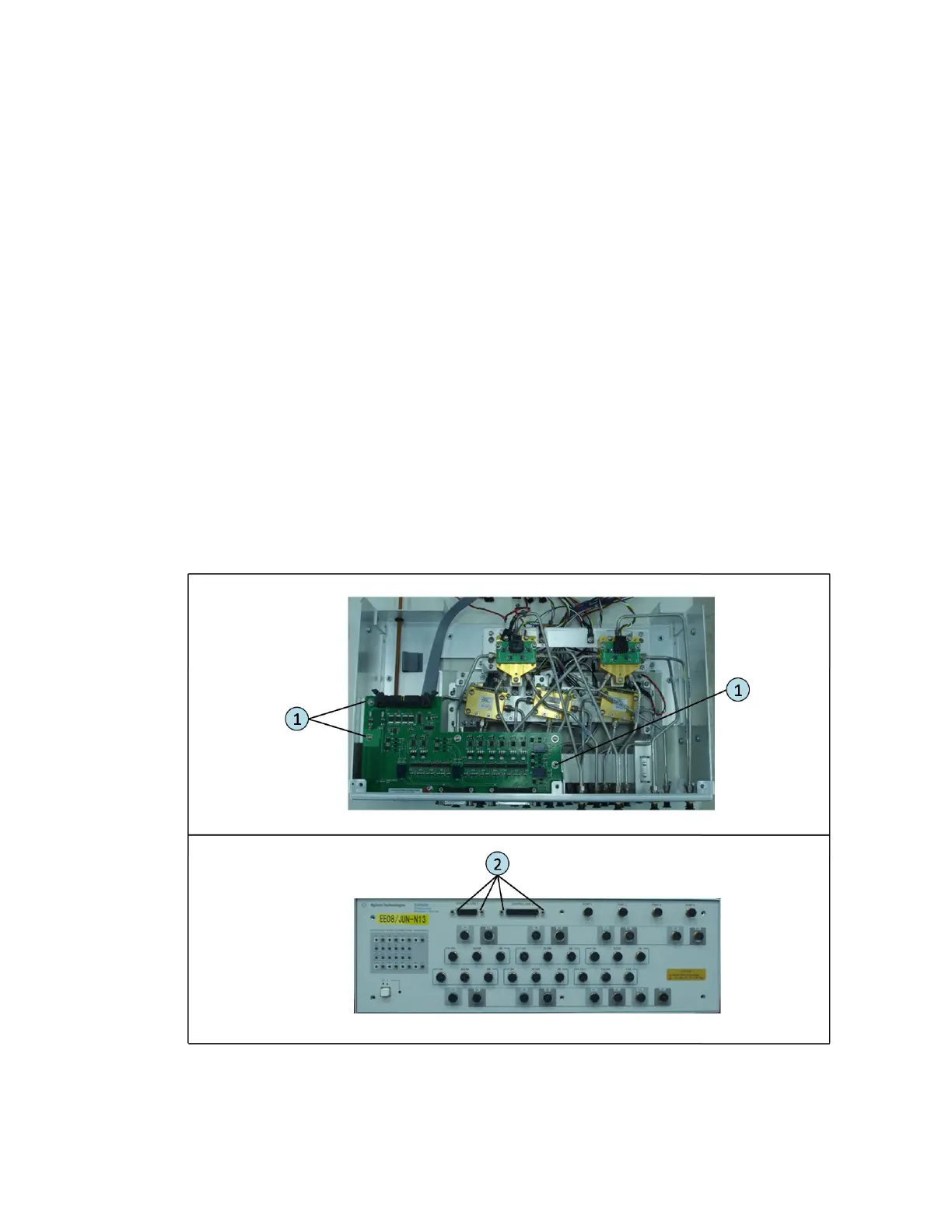

Figure 5-7 Main Board Removal
