Keysight ENA Series - SPDT Switch Assembly (Bottom View)

Keysight E5092A ENA Series Configurable Multiport Test Set 177
Replaceable Parts
Replaceable Parts List for E5092A-020
SPDT Switch Assembly (Bottom View)

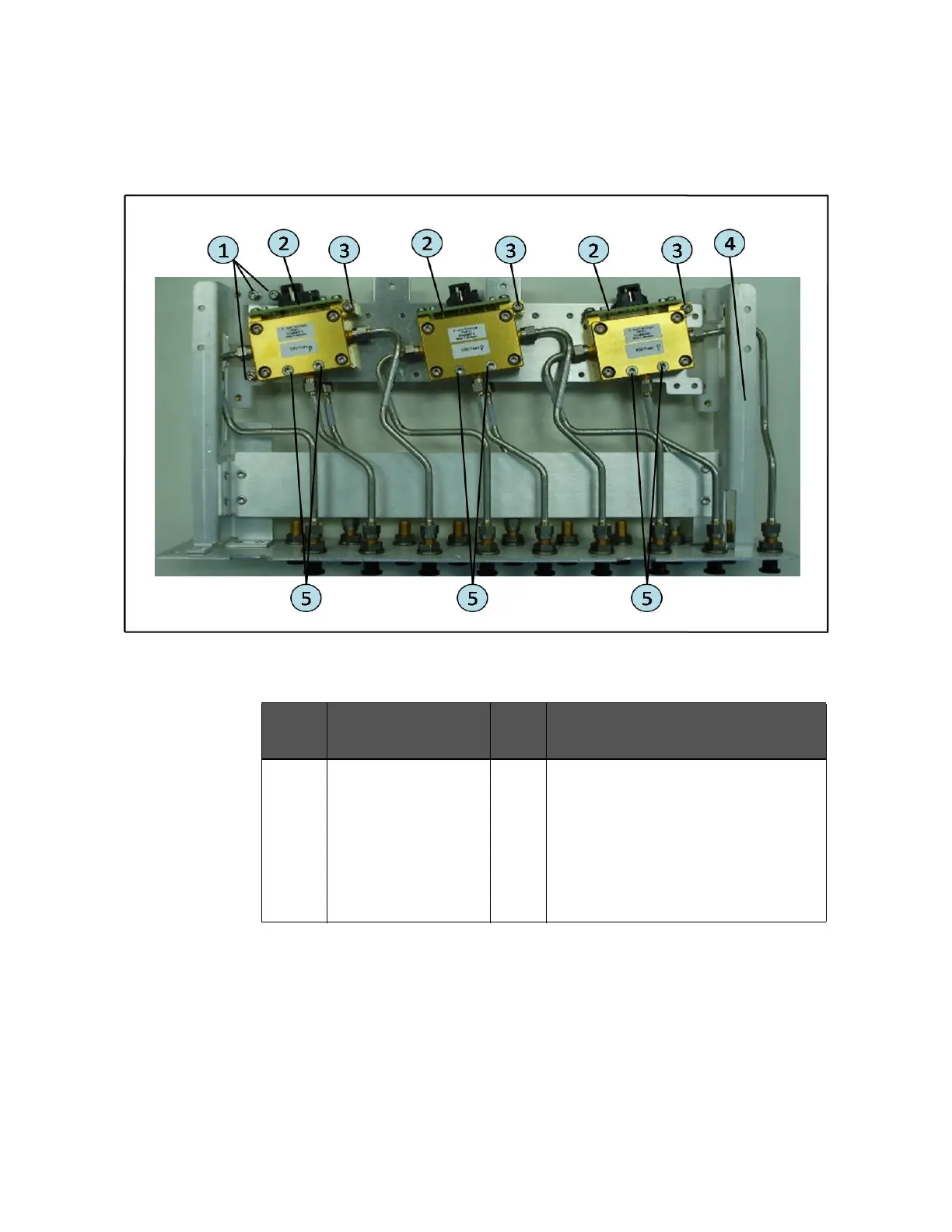

Figure 4-16 SPDT Switch Assembly (Bottom View)
Table 4-16 SPDT Switch Assembly (Bottom View)
Ref.
Desig.
Keysight Part Number Qty. Description
1 0515-0372 3 SCREW MACH M3X0.5
2 E5092-66504 3 SPDT SW BIAS PIN ADAPTER PCA
3 0515-0665 3 SCREW MACH M3X0.5
4 E5092-00105 1 DRAWER ASSEMBLY
5 0515-2078 6 SCREW MACH FLT-HD M3X0.5
