Keysight ENA Series - SPDT Switch Assembly (Top View)

176 Keysight E5092A ENA Series Configurable Multiport Test Set
Replaceable Parts
Replaceable Parts List for E5092A-020
4-
SPDT Switch Assembly (Top View)

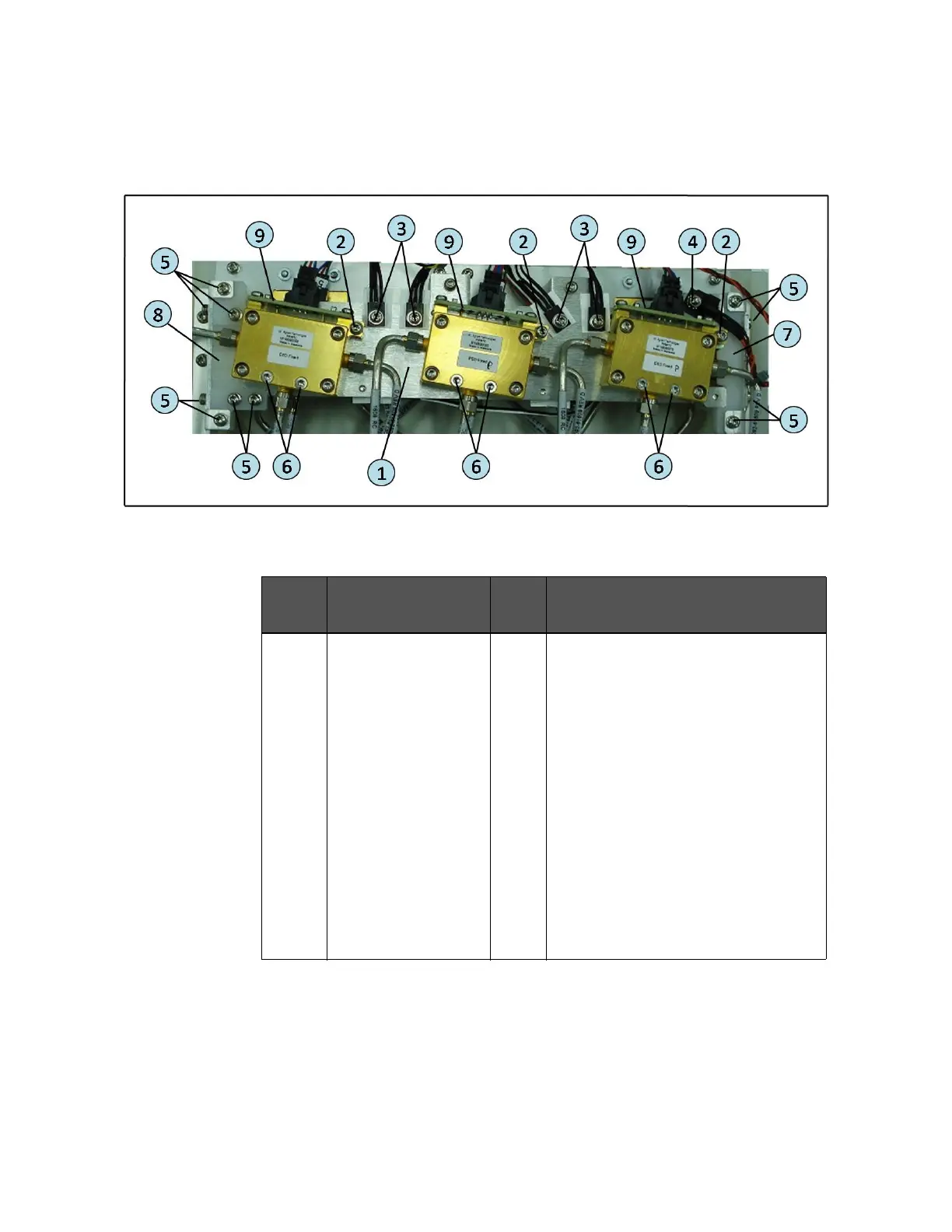

Figure 4-15 SPDT Switch Assembly (Top View)
Table 4-15 SPDT Switch Assembly (Top View)
Ref.
Desig.
Keysight Part Number Qty. Description
1 E5092-20000 1 PLATE
2 0515-0665 3 SCREW MACH M3X0.5
3 0515-0372 4 SCREW MACH M3X0.5
3050-0891 4 WASHER
4 0535-0031 1 NUT-HEX W/LOCK WASHER M3X0.5
5 0515-0372 11 SCREW MACH M3X0.5
6 0515-2078 6 SCREW MACH FLT-HD M3X0.5
7 E5092-25002 1 INSULATOR2
8 E5092-25001 1 INSULATOR1
9 E5092-66504 3 SPDT SW BIAS PIN ADAPTER PCA
