Keysight ENA Series - Power Supply Assembly Removal

Keysight E5092A ENA Series Configurable Multiport Test Set 193
Replacement Procedure
Replacement Procedure for E5092A-020
Power Supply Assembly Removal
Tools Required
• TORX screwdriver, T10, T15 and T20.
Procedure
Refer to Figure 5-5 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 189.
Step 2. Remove the A1 switch control board as described in “A1 Switch Control Board
Removal” on page 192.
Step 3. Disconnect the two power cable (item 1).
Step 4. Remove the four TORX T10 screw (item 2) from the bottom.
Step 5. Remove the power supply board from the chassis.

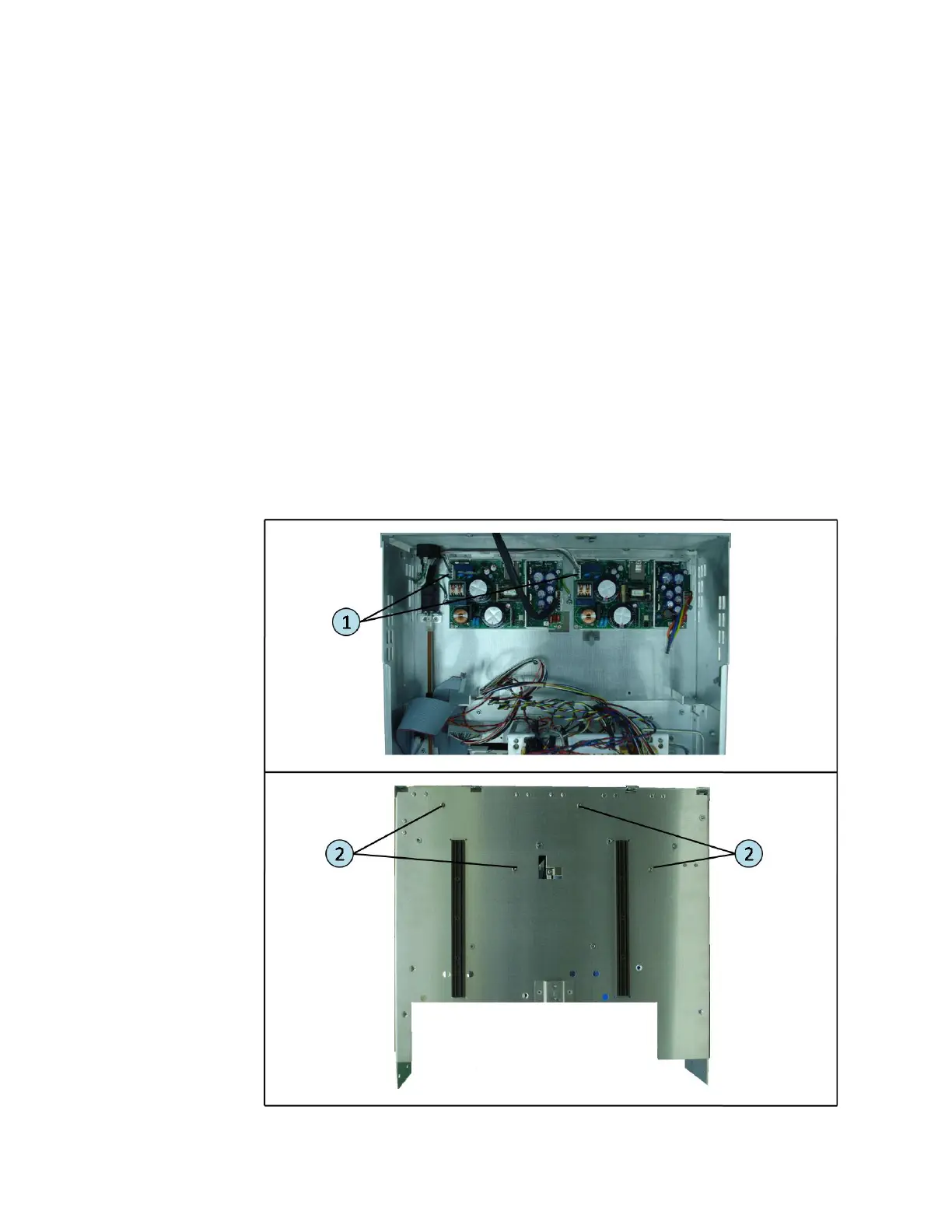

Figure 5-5 Power Supply Assembly Removal
