Fuses

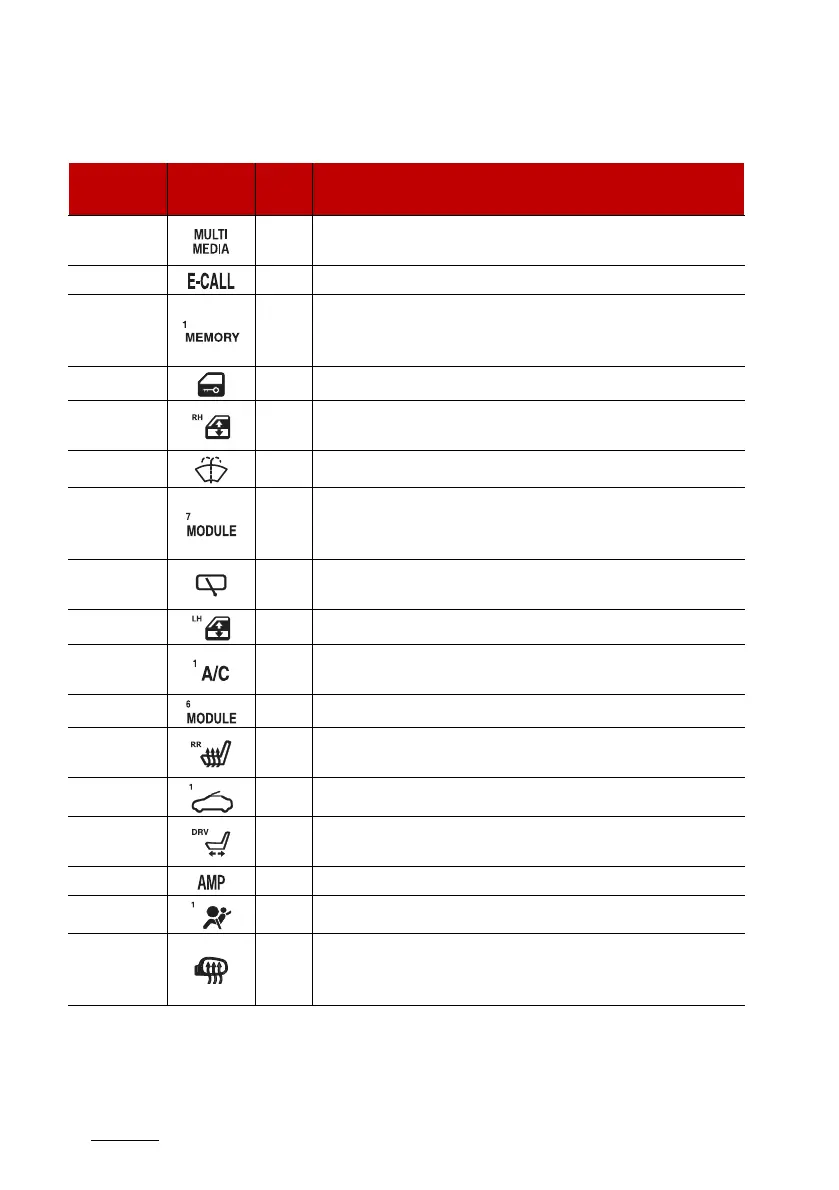

Instrument panel (Driver䳓s side fuse panel)
Fuse
Name
Symbol
Fuse
rating
Circuit Protected
MULTI
MEDIA
15A Audio, Audio/Video & Navigation Head Unit
E-CALL 10A E-Call Module
MEMORY1 10A
Driver IMS (Integrated memory system) Module, Air
Conditioner Control Module, Instrument Cluster, Auto
Light & Photo Sensor
DOOR LOCK 20A Door Lock/Unlock Relay
P/WDW RH 25A
Power Window Right Handle side Relay, Driver
Safety Power Window Module
WASHER 15A Multifunction Switch
MODULE 7 7.5A
Rear Seat Warmer Control Module, Front Seat
Warmer Control Module, Front Air Ventilation Seat
Control Module, Electric Sound Generator Unit
REAR
WIPER
15A
Rear Wiper Motor, ICM (Integrated Circuit Module),
Relay BOX (RR Wiper Relay)
P/WDW LH 25A Power Window Left Handle side Relay
A/C1 7.5A
Engine Room Junction Block (BLOWER Relay, PTC
HEATER 1 Relay), Air Conditioner Control Module
MODULE 6 7.5A IBU (Integrated Body Control Unit)
S/HEATER
RR
15A Rear Seat Warmer Control Module
SUNROOF1 15A Sunroof Motor
P/SEAT
DRV
25A
Driver IMS (Integrated memory system) Module,
Driver Seat Manual Switch
AMP 25A AMP (Amplifier)
AIR BAG1 15A SRS (Supplemental Restraint System) Control Module
HEATED
MIRROR
10A
Driver/Passenger Power Outside Mirror, Air Condi
-
tioner Control Module, ECM (Engine Control Module)/
PCM (Power train Control Module)
