Maintenance Fuses

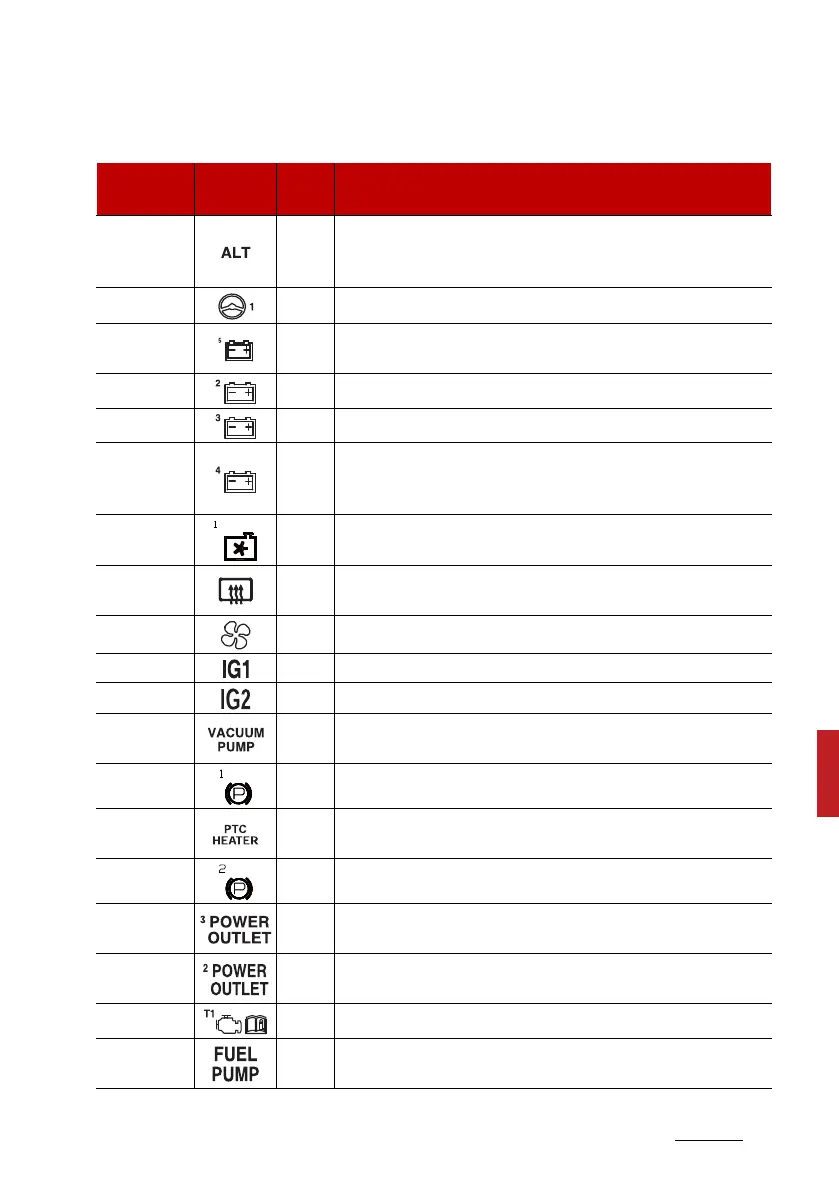

Engine room compartment fuse panel
Fuse
Name
Symbol
Fuse
rating
Circuit Protected
ALTERNA
-
TOR
150/
180/
200A
Fuse : BURGLAR ALARM, ABS1, ABS2, DCU1, POWER
OUTLET1, Alternator
MDPS 1 80A MDPS (Motor Driven Power Steering) Unit
BATTERY 5 60A
Fuse : ECU3, A/CON, ECU4, WIPER, HORN, Engine Con
-
trol Relay
BATTERY 2 60A Instrument Panel Junction Block
BATTERY 3 60A Instrument Panel Junction Block
BATTERY 4 50A
Instrument Panel Junction Block (Fuse :TRUNK,
POWER WINDOW RH, POWER WINDOWLH, POWER
SEAT DRIVER, SEAT HEATER FRONT, AMP, SUNROOF1)
COOLING
FAN 1
60A COOLING FAN 1 Relay
REAR
HEATED
40A REAR HEATED Relay
BLOWER 40A BLOWER Relay
IG1 40A Ignition Switch, PDM 3 (IG1) Relay, PDM 2 (ACC) Relay
IG2 40A Ignition Switch, START Relay, PDM 4 (IG2) Relay
VACUUM
PUMP
20A Vacuum pump
EPB 1 60A
EPB (Electronic Parking Brake)
PTC
HEATER
50A PTC HEATER Relay
EPB 2 40A
EPB (Electronic Parking Brake)
POWER
-
OUTLET 3
20A
Front Power Outlet
POWER
-
OUTLET 2
20A Front Power Outlet
TCU 1 15A TCM (Transmission Control Module)
FUEL
PUMP
20A FUEL PUMP Relay
