Kia Cerato 2021 - Page 638

Maintenance
848

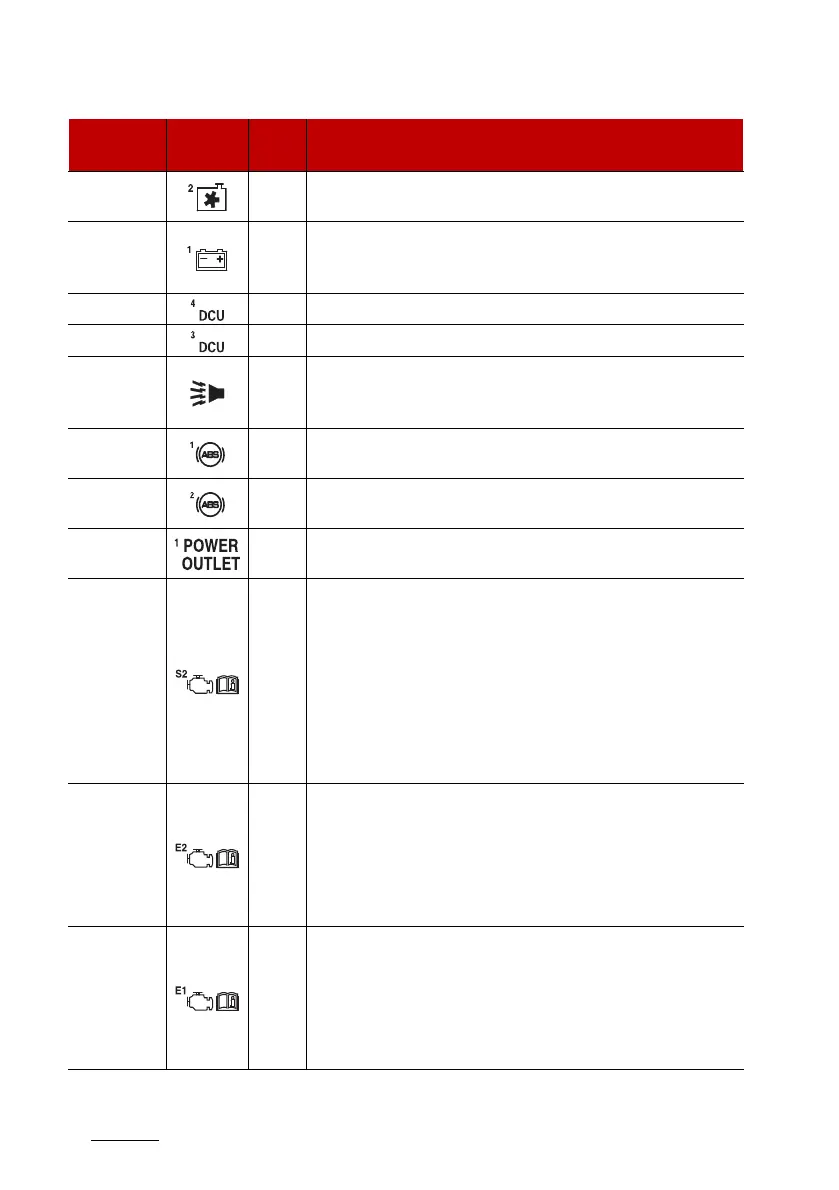

Fuses
COOLING
FAN 2
30A COOLING FAN 3 Relay, COOLING FAN 2 Relay
BATTERY 1 40A
Instrument Panel Junction Block (LONG TERM LOAD
LATCH RELAY, Fuse : MODULE1,SEAT HEATER REAR,
DOOR LOCK, IBU1, BRAKE SWITCH, AIR BAG2)
DCT 1 40A TCM (Transmission Control Module)
DCT 2 40A TCM (Transmission Control Module)
BUR
-
GLARALAR
M
10A ICM Relay Box (Burglar Alarm Relay)
ABS 1 40A
ABS (Anti-lock brake system) Control Module, ESC
(Electronic Stability Control) Control Module
ABS 2 30A
ABS (Anti-lock brake system) Control Module, ESC
(Electronic Stability Control) Control Module
POWER
-
OUTLET 1
40A POWER OUTLET Relay
SENSOR 2 10A
[(Petrol) 1.6 MPI, (Petrol) 2.0 MPI] Purge Control Sole
-
noid Valve, Variable Intake Solenoid Valve, COOLING
FAN 3 Relay, COOLING FAN 2 Relay, Oil Control Valve
#1/#2, A/CON Relay, CCV, Air Flow Sensor, OCV #3
[(Petrol) 1.6 T-GDi] Oil Control Valve #1/#2, CCV, Cool
-
ing Fan 1 Relay, PCSV, RCV
[Smartstream G 1.6] Oil Control Valve #1/#2, CCV,
Variable Intake Solenoid Valve, Purge Control Solenoid
Valve, COOLING FAN 3 Relay, COOLING FAN 2 Relay
ECU 2 10A
[(Petrol) 1.6 MPI] ECM (Engine Control Module)/PCM
(Power train Control Module)
[(Petrol) 1.6 T-GDi] ECM (Engine Control Module
[(Petrol) 2.0 MPI] PCM (Power train Control Module)
[Smartstream G 1.6] PCM (Powertrain Control
Module)
ECU 1 20A
[(Petrol) 1.6 MPI] ECM (Engine Control Module)/PCM
(Power train Control Module)
[(Petrol) 1.6 T-GDi] ECM (Engine Control Module
[(Petrol) 2.0 MPI] PCM (Power train Control Module)
[Smartstream G 1.6] PCM (Powertrain Control
Module)
Fuse
Name
Symbol
Fuse
rating
Circuit Protected
