Maintenance Light bulbs

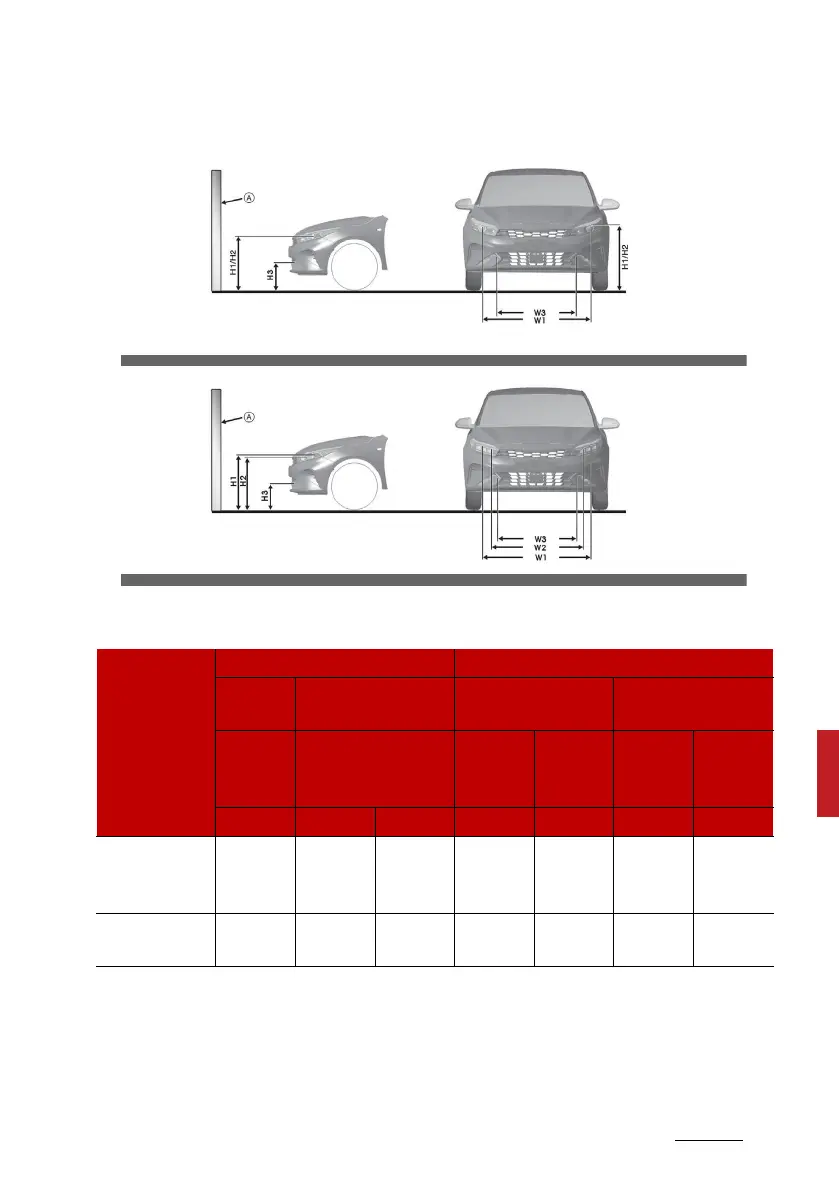

Aiming point
* A : Screen Unit: mm (in)
OBD071073L
OBD071072L
Vehicle con
-
dition
Head lamp (Halogen type) Head lamp (LED type)
Ground
Height
Distance between
lamps
Ground Height
Distance between
lamps
Low/
High
beam
Low/High beam
Low
beam
High
beam
Low
beam
High
beam
H1 W1 W2 H1' H2' W1' W2'
Without
driver
/ [mm (in)]
713
(28.1)
1310
(51.5)
1310
(51.5)
711
(28.0)
683
(26.9)
1334
(52.5)
1127
(44.4)
With driver
/ [mm (in)]
703
(27.7)
1310
(51.5)
1310
(51.5)
701
(27.6)
673
(26.5)
1334
(52.5)
1127
(44.4)
