Maintenance
1128
Light bulbs
Head lamp low beam (LHD)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the pic
-
ture.
3. When aiming the low beam, vertical aiming should be adjusted after
adjusting the horizontal aiming.
4. If head lamp levelling device is equipped, adjust the head lamp levelling
device switch with 0 positions.

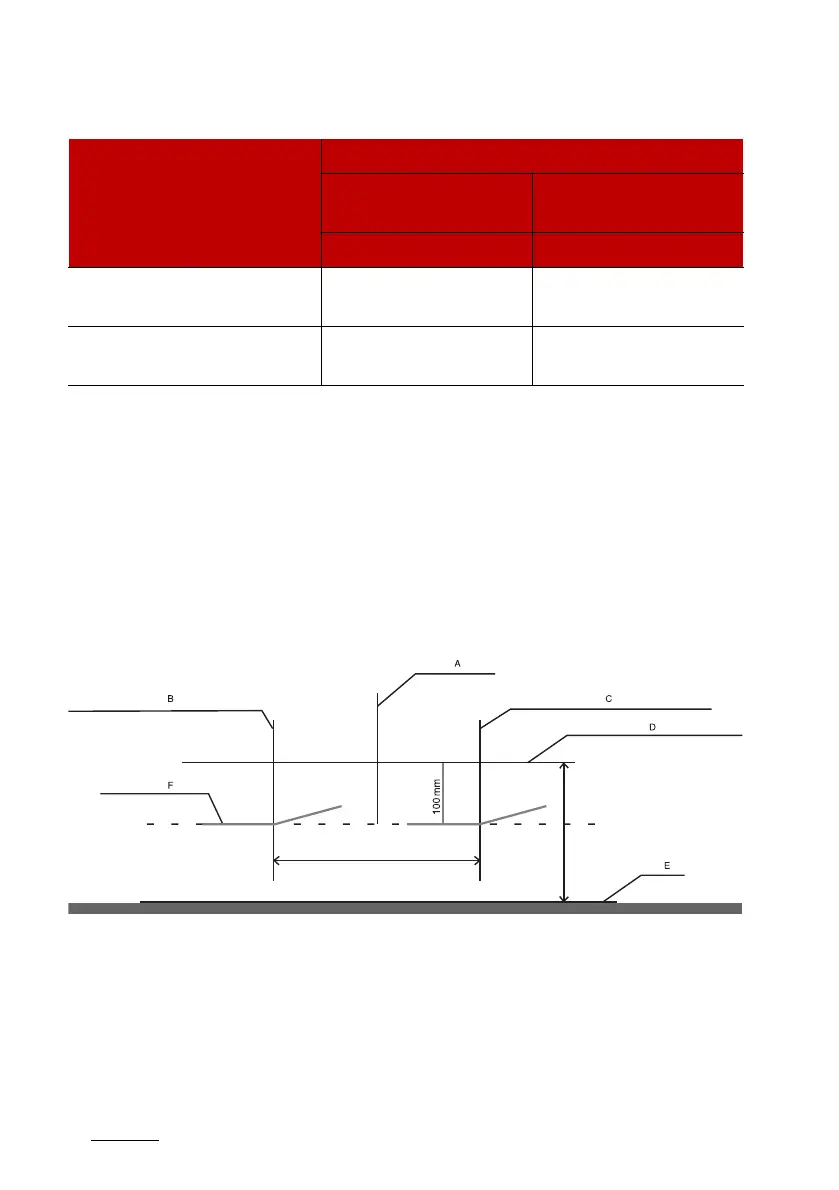

Based on 10m screen
A : Vehicle axis
B : Vertical line of the left head lamp bulb centre
C : Vertical line of the right head lamp bulb centre
D : Horizontal line of head lamp bulb centre
E : Ground
F : Cut-Off line
Vehicle condition
Front Fog lamp
Ground Height
Distance between
lamps
H3 W3
Without driver
[mm (in)]
323 (12.7) 1206 (47.5)
With driver
[mm (in)]
313 (12.3) 1206 (47.5)
H1
W1
