Message Line 1: SMOKE_<N>, where <N> can be the device address or other number
Base Type: Sounder
Follow: Head
3. Configure the RM1 or CT1 module as follows:
Device type: Monitor
Message Line 1: 24VDC_RISER
Programming sounder bases for a T3T4 Fire Alarm/CO emergency
signaling application per NFPA 720, UL 2017

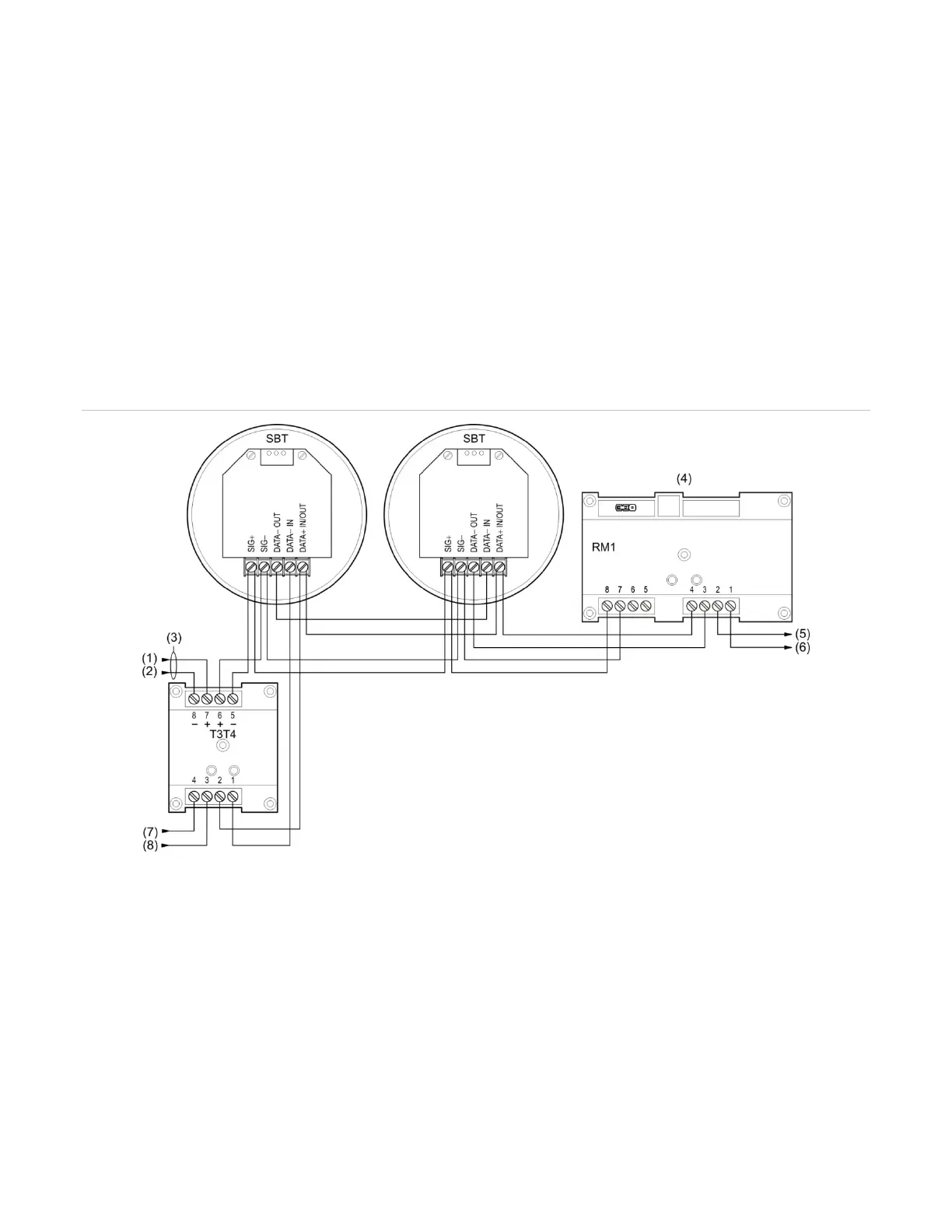

Figure 58: Wiring the sounder base for a T3T4 Fire/CO alarm
AUX riser –
Use a power-
VDC power supply that is UL/ULC Listed
for fire protective signaling system.
(4) RM1 module or equivalent
(5) SLC OUT +
(6) SLC OUT −
(7) SLC IN +
