15. CONTROL PANEL

15.1 HMI COMPACT Control Panel

15.1.1 Technical data

• dimensions: 86 x 86 x 19 mm

• supply voltage: 24 V AC/DC +/-10%

• color TFT display 240 x 320 px

• communication link: RS 485

• supporting ELP series controllers

• BACnet MS/TP or Modbus protocol

• embedded temperature sensor

• storage temperature: -20…70°C

• = IP protection class: 30

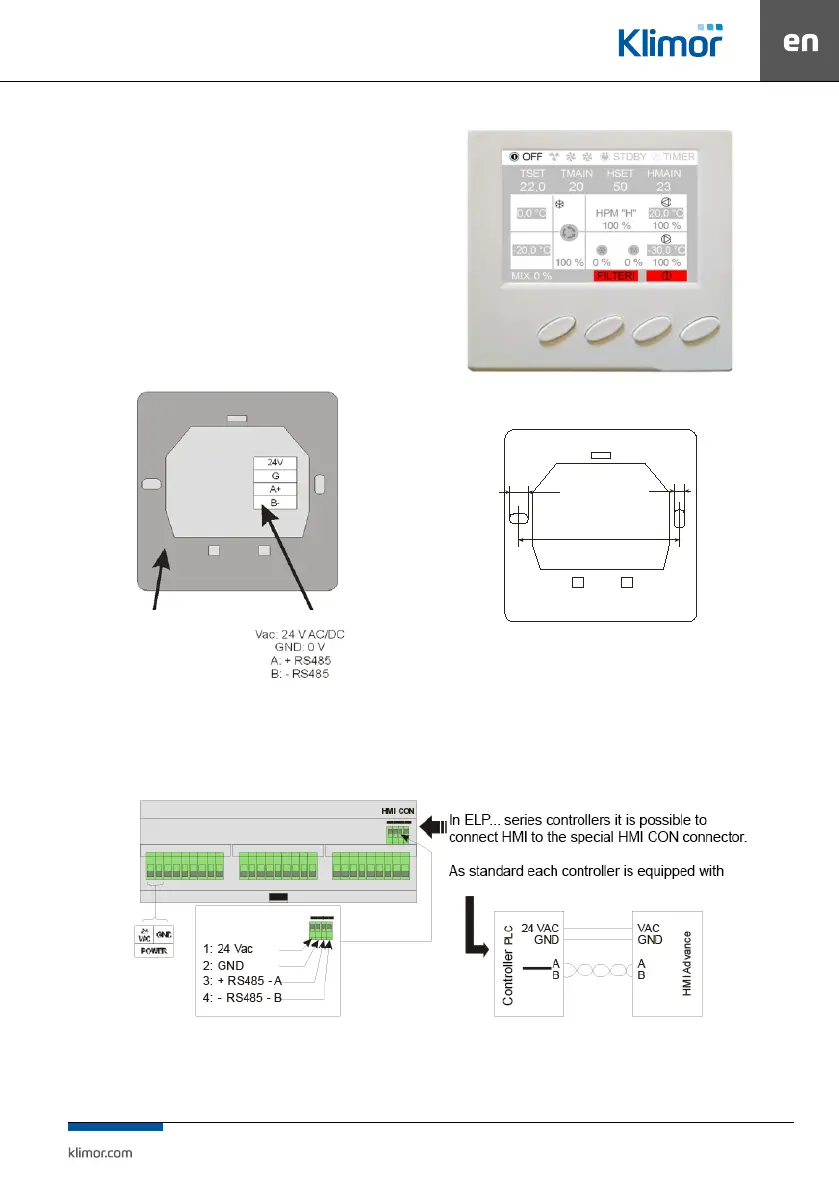

Fig. 35

15.1.2 Connector description

Fig. 36

15.1.4 Controller connection diagram:

Fig. 38

15.1.3 Wall mounting

Fig. 37

Jumper of HMI operating

mode selection

Connector
