3.8.4 KOBOLD FD15 FLEXO NOZZLE
The Kobold FD15 Flexo Nozzle is a multi-purpose
accessory that can be used on different surfaces.
In order to do this you can adjust the nozzle for the
different areas of application.
Nozzle setting for vacuuming
Flexo Nozzle
complete
Furniture surfaces
Stairs
Walls, doors
Flexo Nozzle
top part
Upholstery, fabrics,
car seats
Flexo Nozzle
folded
Joints, corners
Between upholstery
Cleaning plate with-
out bristle plate
Curtains, wall fabrics
3.8.5 KOBOLD FD15 FLEXO NOZZLE –
COMPLETE
You can use the fully assembled Flexo Nozzle to
vacuum furniture surfaces, stairs, walls or doors.
For more functions, only use individual parts of the
Flexo Nozzle depending on the intended use.
3.8.6 KOBOLD FD15 FLEXO NOZZLE –
TOP PART
You would like to vacuum dust, threads and hair
from upholstery, fabrics or the inside of your car?
Then remove the cleaning plate from the Flexo
Nozzle.
1. To do this, push down the release lever
on the
back of the attachment.
2. Slide the top part
of the Flexo Nozzle upwards
and out.
3. Connect the Flexo Nozzle to the Kobold ESS200
Electric Suction Hose.
3
4
5
2
1

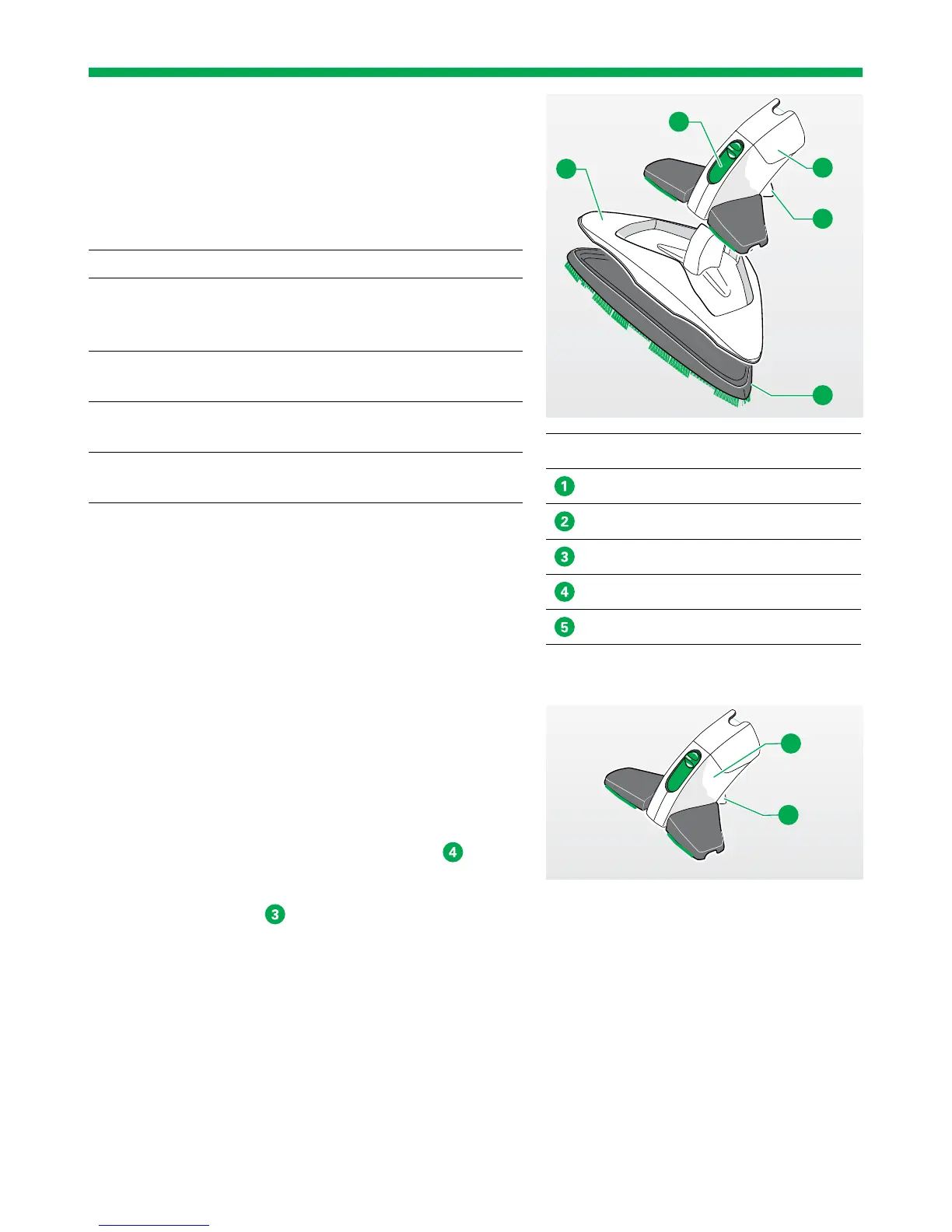

Legend
Cleaning plate
Slider
Flexo Nozzle top part
Release lever
Bristle plate
3
4
