3.8.7 KOBOLD FD15 FLEXO NOZZLE – FOLDED

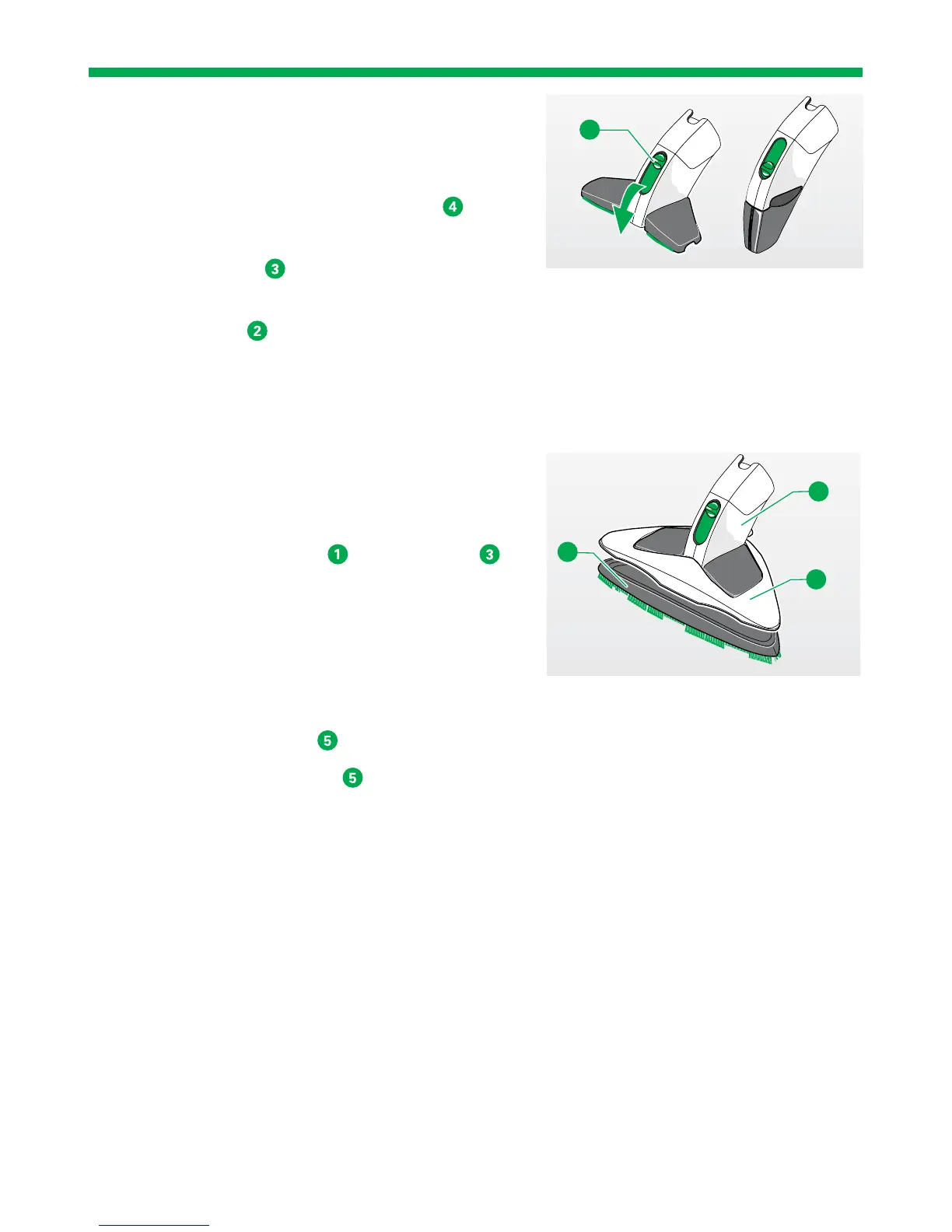

You would like to vacuum dust from joints, corners
or between upholstery? Then remove the cleaning
plate from the Flexo Nozzle.
1. To do this, push down the release lever
on the
back of the attachment.
2. Slide the top part
of the Flexo Nozzle upwards
and out.
3. Move the slider
down so the wings of the Flexo
Nozzle fold in.
4. Connect the Flexo Nozzle to the Electric Suction
Hose.
3.8.8 CLEANING PLATE
You would like to clean larger areas such as furni-
ture surfaces or stairs, walls and doors? Then use
the cleaning plate of the Flexo Nozzle.
1. Mount the cleaning plate
on the top part of
the Flexo Nozzle.
2. Make sure all parts are correctly fitted.
3. Connect the Flexo Nozzle to the Electric Suction
Hose.
4. To clean curtains or textile wall coverings,
remove the bristle plate
.
5. To remove the bristle plate , push up the
bracket on the back of the attachment and re-
move the grey bristle plate with a quick pull.
