71
↓ offset point behind the target point
☆Re-observation of the offset point: OBS

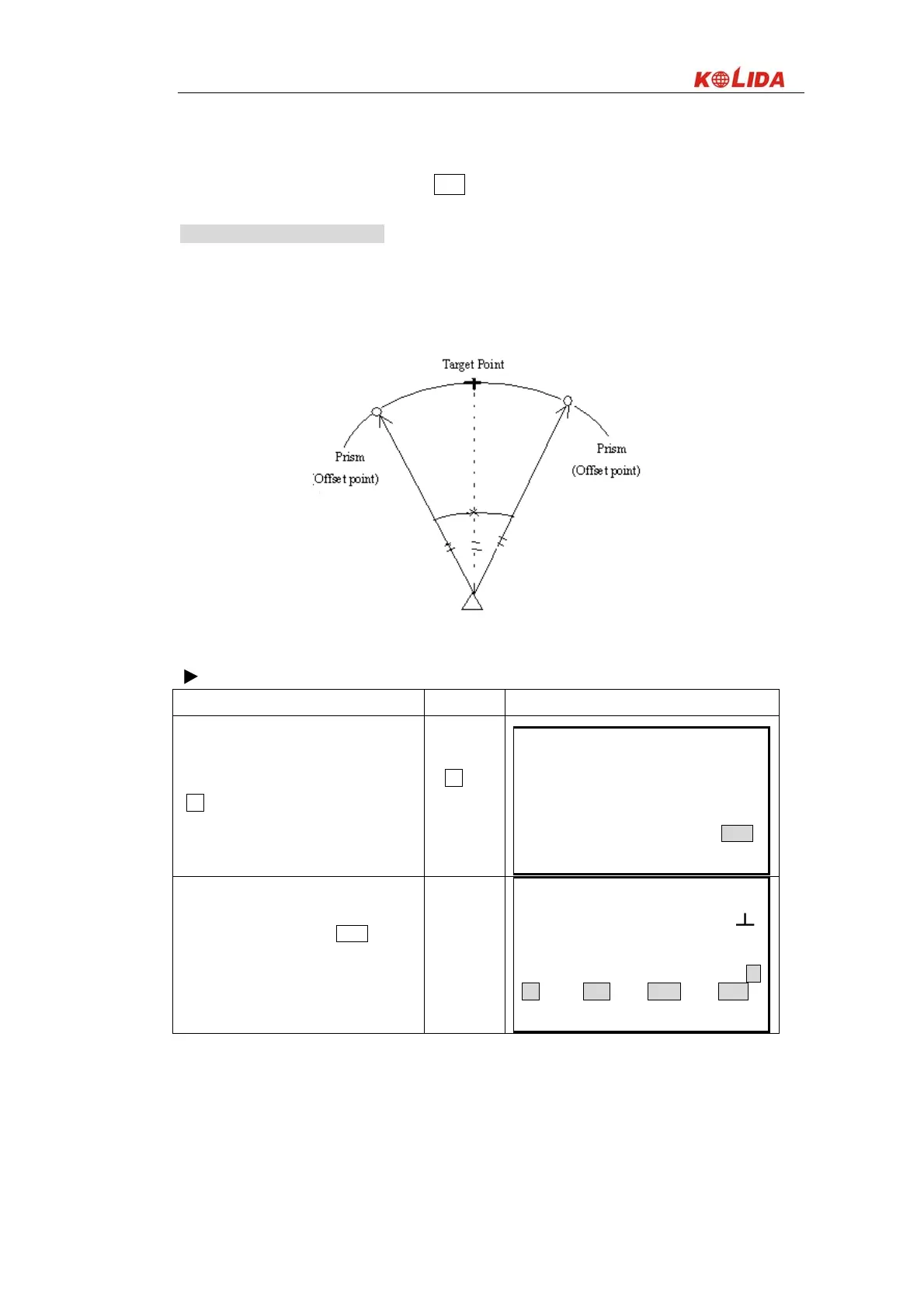

12.2 Angle Offset Measurement
· Install offset points for the target point on the right and left sides of and as close as possible to the target
point. The target height and the height of offset points should be identical.
PROCEDURE
Operating Procedure Operation Display
⑴ Sight the target of the offset points and press
SD in Meas mode.
SD
Dist
Dist PC = 0
PPM = 0
Fine “S”
STOP
⑵ When observation is completed or after the
measurement values are displayed during
continuous measurement, press STOP to
restore the “MEAS Mode Screen.” The slope
distance, vertical angle and horizontal angle
from the station point to offset points are
displayed.
Meas. PC -30
PPM 0
S 11.678 m
ZA 59°39′54″
HAR 90°01′00″
P1
SD SHV HSET EDM
