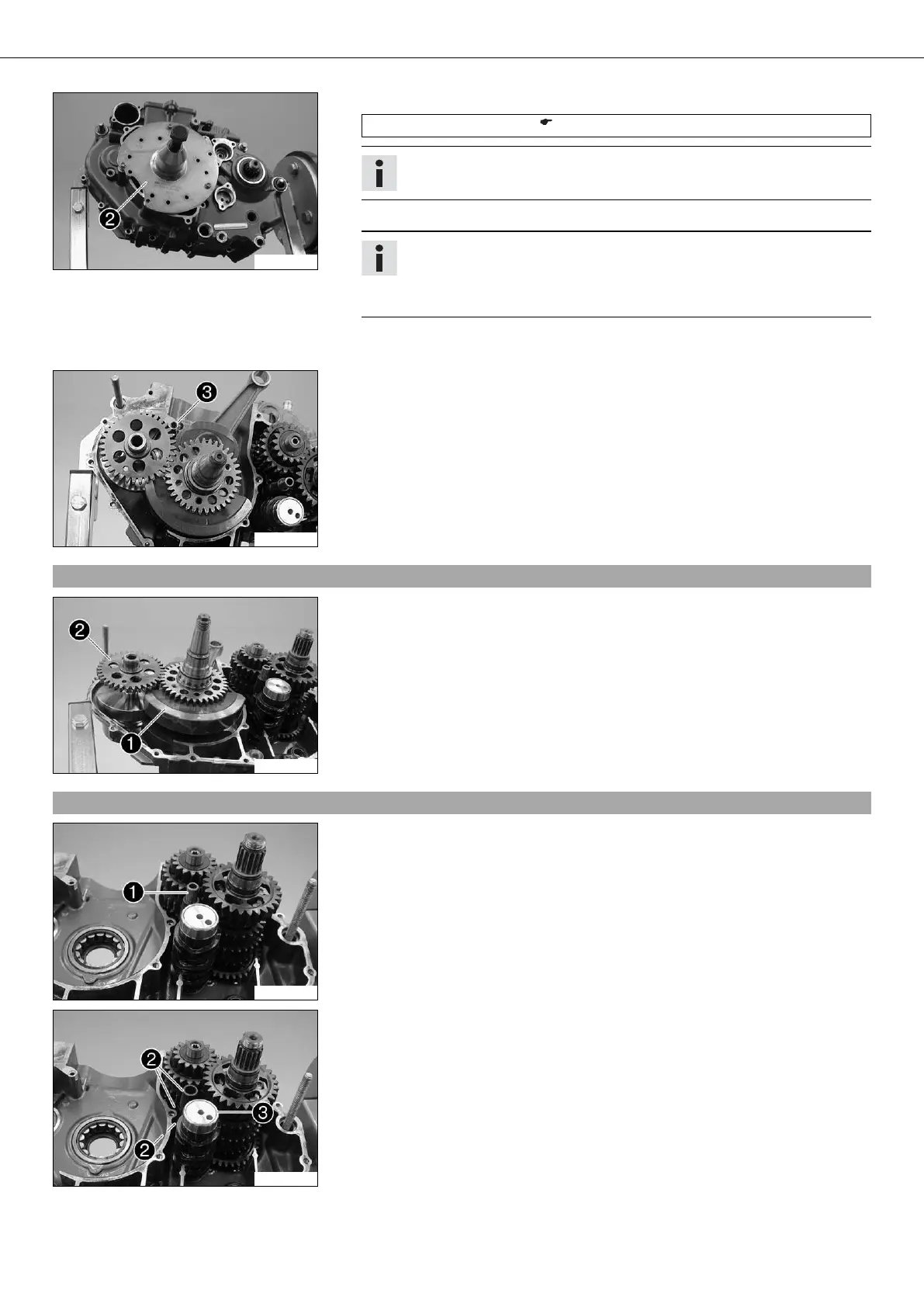

30/DISASSEMBLING THE ENGINE 104
300076-10
– Install the special tool  with suitable screws.
Extractor (75029048000) ( p. 214)
Info
Use the 750 drill hole.
– Pull off the section of the engine case.
Info
Do not tension the section of the engine case.
The balancer shaft and the main shaft have a stop disk, these usually stick
to the bearing.
– Take off the left section of the engine case.
– Remove the special tool.
300077-10
– Remove dowels.
– Remove O-ring .
17.31Removing crankshaft and balancer shaft
300078-10
– Remove the crankshaft  and the balancer shaft .
17.32Removing transmission shafts
300079-10
– Remove the shift rail .
300080-10
– Swing shift forks  to one side.
– Remove shift drum .
