04/SHOCK ABSORBER, SWINGARM 39
200579-10

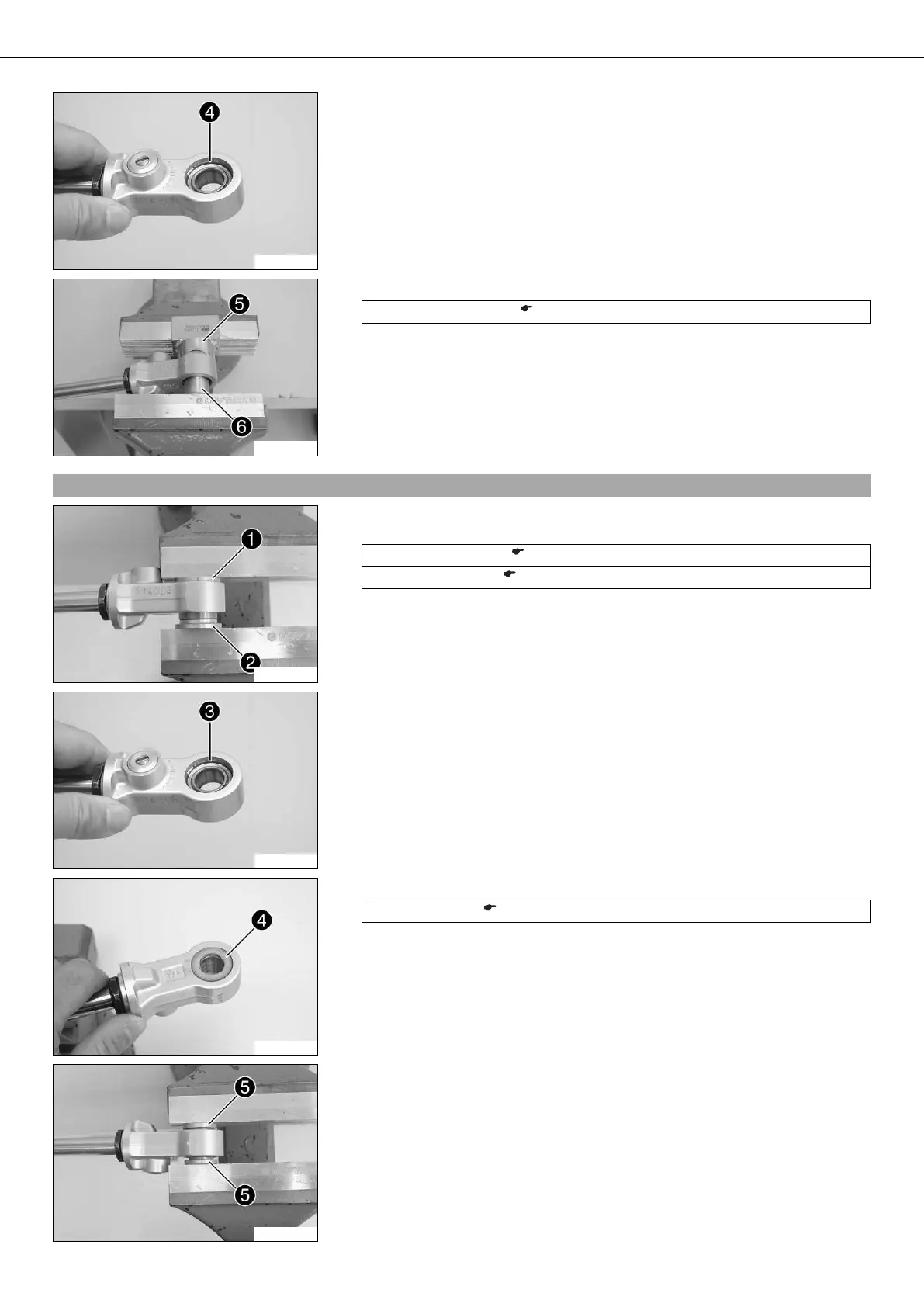

– Remove lock rings  on both sides.
200580-10
– Place special tool  underneath and press out the heim joint with special tool .
Pressing tool (T1207S) ( p. 217)
7.17Installing the heim joint
200581-10
– Place special tool  underneath and press in the heim joint as far as the center
using special tool .
Pressing tool (T1206) ( p. 217)
Pressing tool (T129) ( p. 218)
200579-11
– Mount lock rings  on both sides.
200578-11
– Mount seal rings  on both sides and grease them.
Lubricant (T158) ( p. 206)
200582-10
– Press in both collar sleeves  of the heim joint.
