24.5Coding the EFI control unit and/or EPT control unit
Condition
The ignition is on.
The diagnostics tool is connected and running.
Flashing of the EFI control unit and/or EPT control unit is completed.
For a used control unit
– Request the enabling code. ( p. 165)

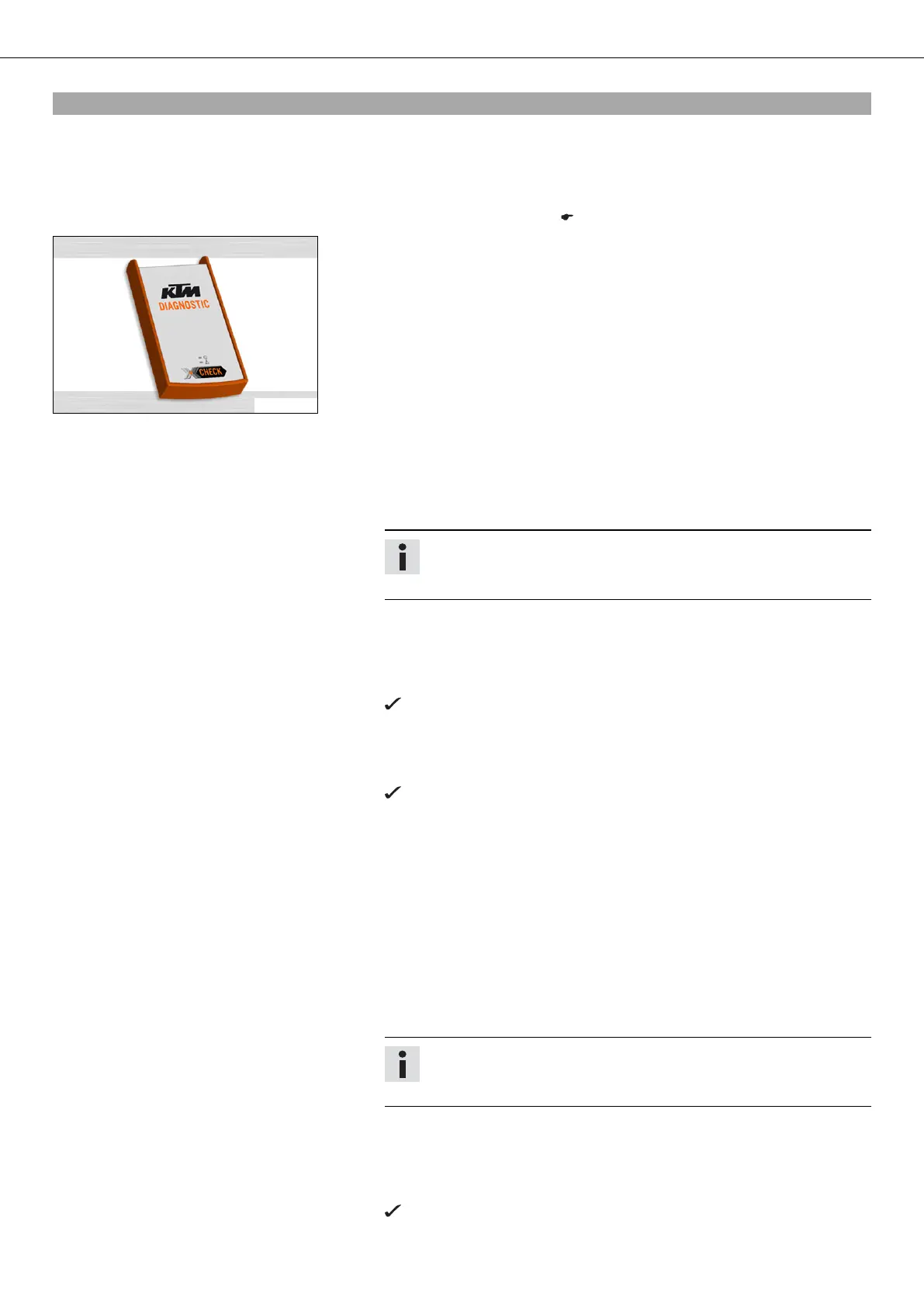

400687-60
EFI control unit
– Switch to the main menu.
– Select model.
– Select "ECU Diagnostics".
– Highlight the "Injection management EFI LC4" control unit.
– Press "Continue".
– Select "Coding".
– "Please enter the password:"
– Press "Continue".
– Select "Change VIN - New identity".
– Press "Continue".
– Read the information page on the KTM diagnostics tool and using "Continue"
start the coding process.
– Under "Please enter VIN:" enter the new VIN.
Info
For new control units, a sample VIN is displayed.
For used control units, the last programmed VIN is displayed.
– Press "Continue".
– Select "Code entry".
– "Please enter the code"
– Press "Continue".
The new VIN is written to the EFI control unit.
– Switch to the main menu.
– Select "Show identification".
– Compare the old VIN to the new VIN.
The new VIN is shown.
EPT control unit
– Select model.
– Select "ECU Diagnostics".
– Highlight "EPT throttle motor drive control LC4" control unit.
– Press "Continue".
– Select "Coding".
– "Please enter the password:"
– Press "Continue".
– Read the information page on the KTM diagnostics tool and using "Continue"
start the coding process.
– Under "Please enter VIN:" enter the new VIN.
Info
For new control units, a sample VIN is displayed.
For used control units, the last programmed VIN is displayed.
– Press "Continue".
– Select "Code entry".
– "Please enter the code"
– Press "Continue".
The new VIN is transferred to the EPT control unit.
