Normal shaft -> OFF
Reduced head / pit ->
ON

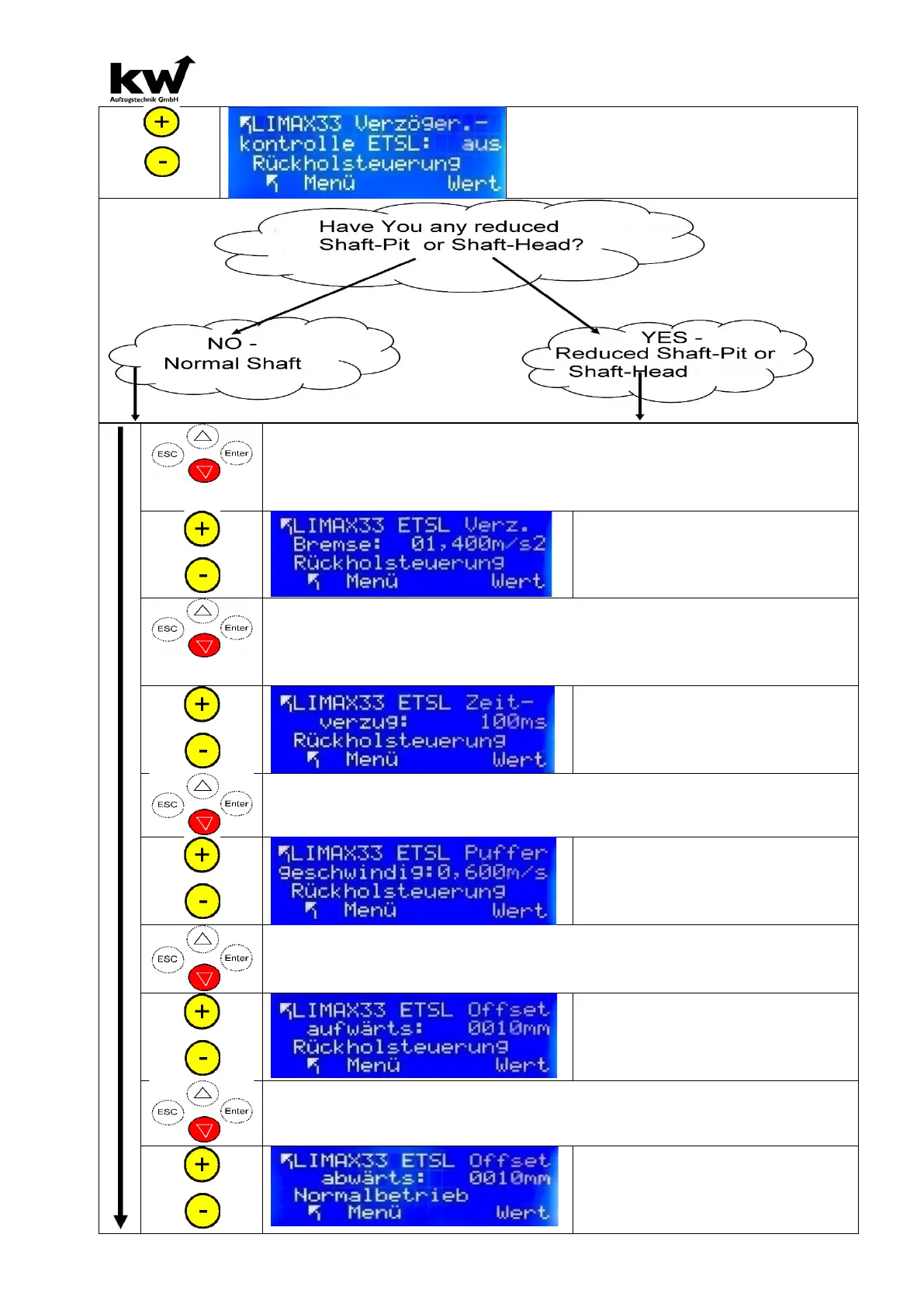

3.4a Input – Delay Control -> Braking delay
Each brake element has its characteristic delay value. The value of the brak-
ing system of the drive system is stated in the certificate. Value range from
0.1 to 10 m / s2.
Entering the braking deceleration
of the elevator system in:
…. m/s
2
3.4b Input – Delay Control -> Time delay
Each control system has runtimes due to switching elements. Here, the time
delay is to be entered until the brake element responds. Value range from
20 to 500 ms.
Enter the time delay until the brake
element responds:
100 ms
3.4c Input - Delay Control -> buffer speed
Here, the value for the speed is entered, with which the buffer can be maxi-
mally opened. Range of values from 0.0 to 2.5 m / s.
Entering the maximum buffer
speed of the elevator system
…. m/s
3.4d Input – Delay Control -> Offset UP
Offset distance in mm of the calculated distance s (shelter) in the upwards
direction. Value range from 0 to 1000 mm.
Input of the offset value in the up-
wards direction:
100 mm
3.4e Input – Delay Control -> Offset Down
Offset distance in mm of the calculated distance s (shelter) in the downward
direction. Value range from 0 to 1000 mm.
Input of the offset value in the
downward direction:
100 mm
