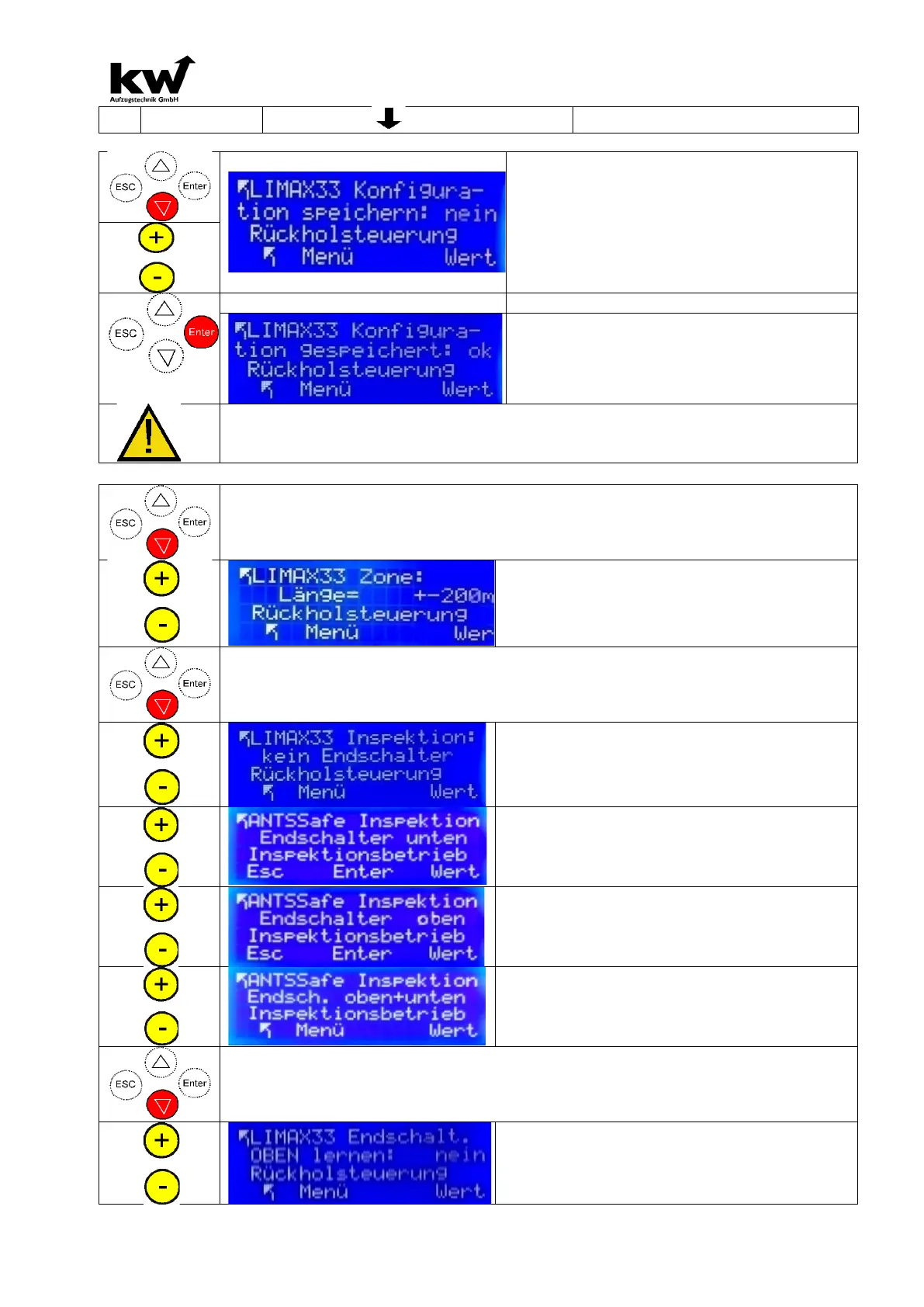

To save, select "yes" with + or - and
press ENTER.
The message LIMAX33 Configuration
saved appears: ok
The basic configuration is now stored in the LIMAX33CP. This cannot
be changed!
3.5 Teach-In Setup-2
3.5 Enter the zone length
This parameter is used to enter the zone length. Later, the zone length can be
changed!
Change value and enter default value of 200
mm (maximum value).
This value can be changed again later!
3.6 Input of the inspection limit switch
For shortened shaft pit and/or shortended pit-brow, inspection switches can be set. The
following options exist:
Shaft pit and pit-brow have normal height.
Setting -> No limit switch
Shaft pit has reduced depth.
Setting -> Limit switch down
Pit-brow has a reduced height.
Setting -> Limit switch top
Shaft pit and pit-brow are reduced.
Setting -> Limit switch top + bottom
3.7 Learning the upper limit switch
1.) Approach the limit switch position UP with
the return control. Stop the elevator car when
reaching position.
To Next Page
